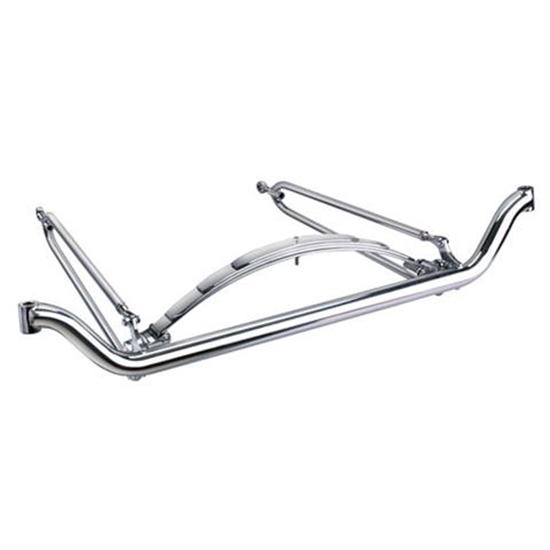

Spring-Behind 6 In Drop Tube Axle Front End for Chevy Spindles, Chrome
Spring-Behind 6 In Drop Tube Axle Front End for Chevy Spindles, Chrome
Speedway Motors

|

#91339020

Spring-Behind 6 In Drop Tube Axle Front End for Chevy Spindles, Chrome

  • 49-'54 Chevy Spindles
  • Max car weight 2500 lbs
  • Chrome
See More

Finish:

Chrome

Plain

$1,739.99

/kit

In Stock

$1,774.95

Save $34.96

Order soon, only 1 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Straight Axle Front Suspension Type

  • 49-'54 Chevy Spindles
  • Max car weight 2500 lbs
  • Chrome
  • Two 1-3/4" spring shackles w/ nylon bushings, Two spring pivots, 26" 4-leaf spring w/ nylon buttons, Two axle brackets, 48" eye-to-eye 6" dropped Tube axle, Two 27" radius rods, Four clevises with jam nuts and bolts, Two 5/8" Heims with jam nut
  • Spring U-bolts and frame mounts sold separately

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #91339020
Front Suspension TypeStraight Axle
Suspension Height Adjustment6 Inch Lowered
Control Arm StyleRadius Rod
Shock TypeNot Included
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91339020 Details

For 1949-1954 early Chevy passenger car spindles. Maximun car weight 2500 lbs.

Kit includes:

  • Two 1-3/4" spring shackles w/ nylon bushings
  • Two spring pivots
  • 26" 4-leaf spring w/ nylon buttons
  • Two axle brackets
  • Tube axle, 48" eye-to-eye, 6" dropped
  • Two 27" radius rods
  • Four clevises with jam nuts and bolts
  • Two 5/8" Heims with jam nuts
  • Spring U-bolts sold separately

Charts

Speedway Motors 91339020 Specifications

KEY SPECS
MFG. Part #91339020
BrandSpeedway Motors
Front Suspension TypeStraight Axle
Suspension Height Adjustment6 Inch Lowered
Control Arm StyleRadius Rod
Shock TypeNot Included
Spring TypeLeaf Spring
FinishChrome
Rotor DiameterNot Included
Spindle StyleChevy/GM Custom
Dropped SpindlesNo
Dropped AxleYes
Dropped Control ArmsNo
Front Leaf Spring StyleSpring-Behind Axle
Spindles IncludedNo
Brakes IncludedNo
Steering IncludedNo
Welding RequiredNo
GENERAL
Straight Axle StyleTube

Questions & Answers

1 Question • 1 Answer

Am I correct in assuming the axle brackets are pre-welded, considering the axle is chrome?

by 26fordcoupe

• 13 years ago

1 answer

View Answer

1 of 1 questions shown
