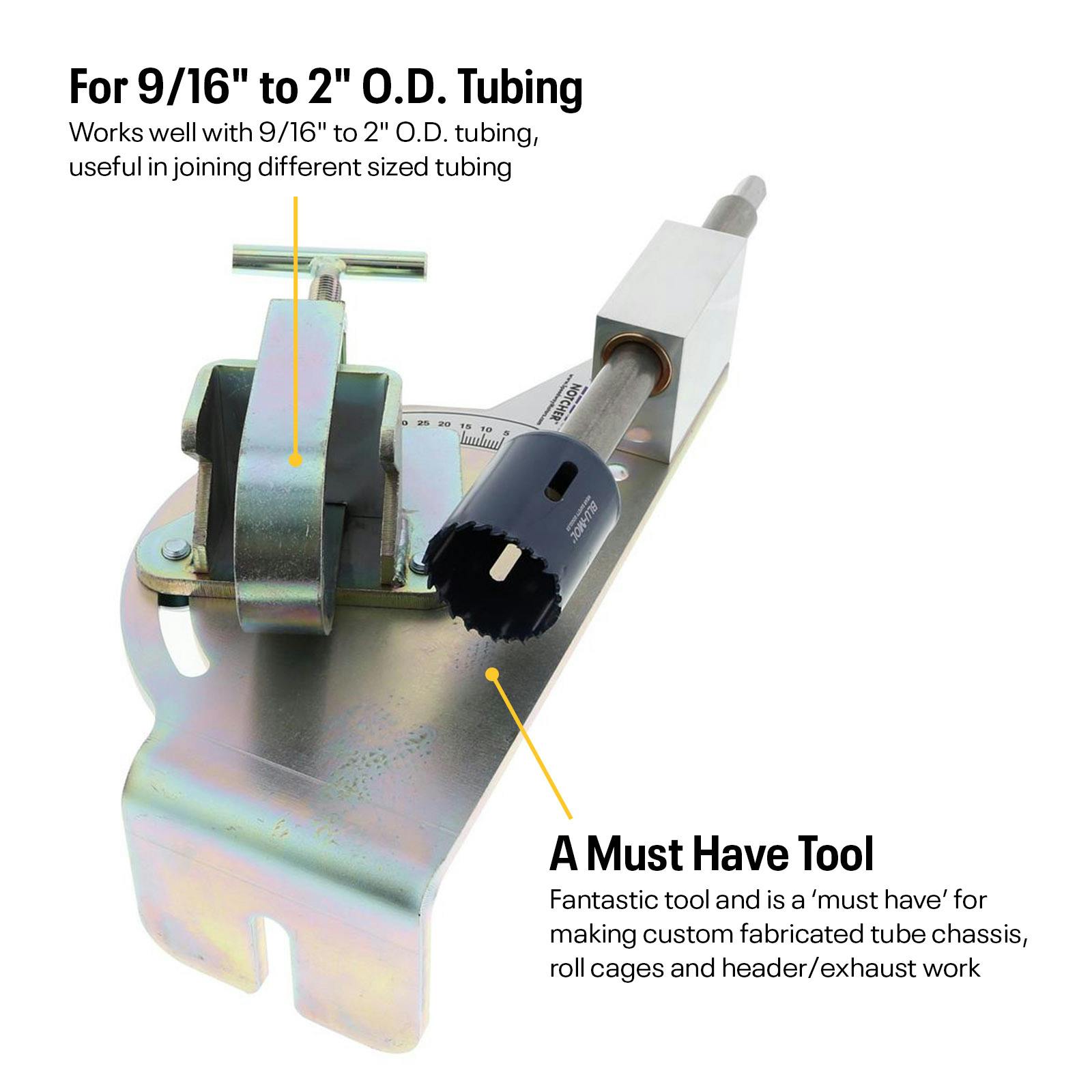

Speedy Notcher Roll Cage Tubing/Pipe Notching Tool

• Notches both round and square tube materials for roll cage or other projects
• Cuts through up to 2-inch diameter round tubing at 40 to 90 degree angles
• Handles cutting up to 1-1/2-inch square tubing at 40 to 90 degree angles
• 1-3/4-inch hole saw blade included for most popular tubing diameter
• 3/4-inch mandrel shaft features tri-lobe machined end for 1/2-inch drill chuck
• Threaded adapter included allows the use of both small and large ID hole saws
• Spanner wrench provides quick and easy hole saw blade changes
• Easily secured into bench vise jaws or can be mounted to a drill press table
• Easier and faster to use than other styles of pipe coping tool

A Tubing Notcher Is a Must for Building Roll Cages or Any Custom Tubing Project

There are many options for pre-cut roll bar and roll cage kits for popular chassis running down the dragstrip or around the oval track. However, if you’re running something unique, or are looking to craft a custom solution for your race car a roll cage tubing notcher is a must have tool for your shop. Without a tube notcher tool you will be eyeballing your cuts and angles using a grinder or other cutting tool that will not be as precise as a tube notcher. While a tube coping tool is a step up, using tube notcher is a huge time saver. A roll cage tubing notcher is but one of several roll cage building tools you will need to build your custom roll bar or cage. This goes for any tubing project, including suspension pieces, custom headers, and more. Pair our tube notcher with our tubing bender for all your tubing fabrication needs.

All Steel and Aluminum Construction for Years of Trouble Free Use

Our pipe notcher tool starts with strong 1/4-inch water jet and press bent hot rolled steel plate for its main mounting surface. We use the same strong 1/4-inch steel plate material for the adjustable angle joint plate and the tool free tubing clamp assembly. A 3/4-inch mandrel rides in bronze bushings seated in an oversized 2 inch by 3 inch aluminum mandrel support. The protractor scale is graduated from 0- to 55-degrees of pipe angle. This is not the angle of your cut, but the angle of the pipe layout. For example, if you’re adding door bars to your basic 4-point roll bar and the door bar angle is 32 degrees, once you have set your door bar into the joint plate’s clamp you would move the joint plate to indicate 32 degrees on the protractor scale for your cut.

Our Hole Saw Tube Notcher Creates Precise Cuts with Quick Setup Almost Anywhere

Being able to use our tubing notcher just about anywhere means you can easily bring the tool to the project versus the project to the tool. Helping a friend build a roll cage for their race car? If they have workbench with a suitable vise, it’s game on! Now you don’t have to worry about having room for a whole car in your workshop, dealing with pushing a chassis on and off a trailer, and so forth. Just grab your Speedway Motors tube notcher and the rest of your roll cage building tools and bring the party to them! Setup is quick and easy. With the 1/4-inch steel mounting flange secured in a bench vise you’re ready to go. You can even configure it to use as a drill press tube notcher with little effort. It is so much quicker and easier to use than the typical hand pipe coping tool some use. Grab the included 1-3/4-inch hole saw or purchase the appropriate hole saw blade for your tubing size need. Speaking of tubing, we offer roll cage tubing in several diameters and in both round and square tube options for your project. The same can be said for our exhaust pipe options too. Whether it is custom headers or just making an H-pipe crossover, our tube notcher tool will get the job done quickly and accurately.
