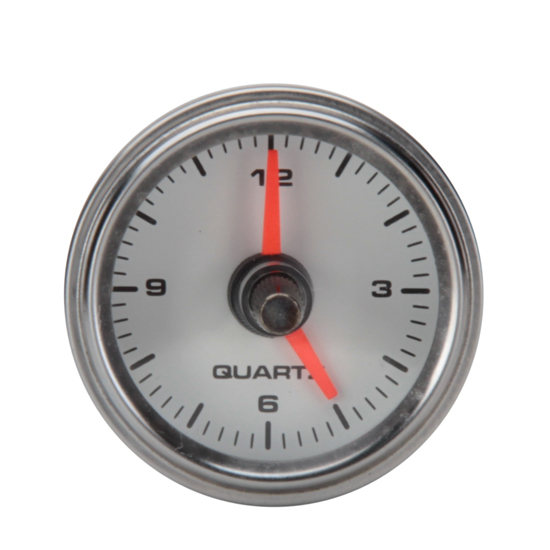

Speedway White Face Dash Clock, 2-1/16 Inch

Upgrade your old worn out dash clock with this Speedway Motors White Face Quartz Dash Clock.

Comes with quick disconnect plugin harness for easy installation that simply plugs into the back of gauge.

Wiring Instructions:

• Black Wire (Ground – Battery Negative):
  • Connect the black wire securely to the chassis ground.
  • Utilize a solid connection point on the vehicle's frame or chassis to ensure proper grounding.
• Red Wire (Clock Constant Power + Battery Positive):
  • Connect the red wire to a constant 12V DC power source.
  • It's essential to maintain continuous power to the clock; otherwise, the clock functionality will cease when the vehicle is turned off. Take note that prolonged periods without starting the vehicle may lead to battery drain.
• Green Wire (Backlight Switched Power + Battery Positive):
  • Connect the green wire to the same circuit as other 12V DC dash lighting connections or a switched 12V DC power source.
  • Ensure the selected power source deactivates when the vehicle is turned off, specifically for the backlight. This ensures that the light turns off along with the vehicle to prevent unnecessary power consumption.

Features:

• White gauge face
• 12V DC Electric gauge type
• Black lettering
• Orange needle
• Stainless bezel finish
• Lighted
• 2.05" body diameter
• 2.25" overall diameter
• Sold each
