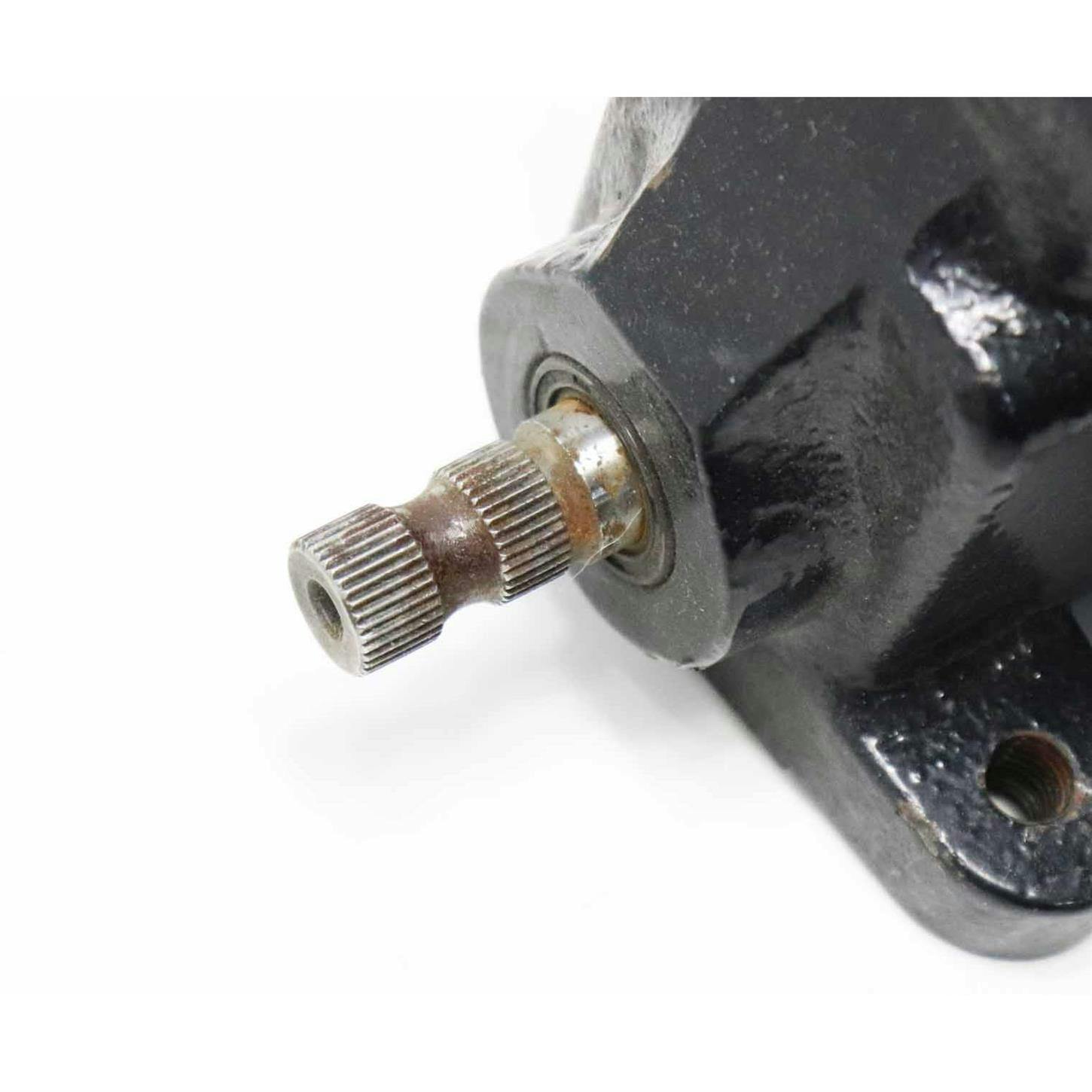

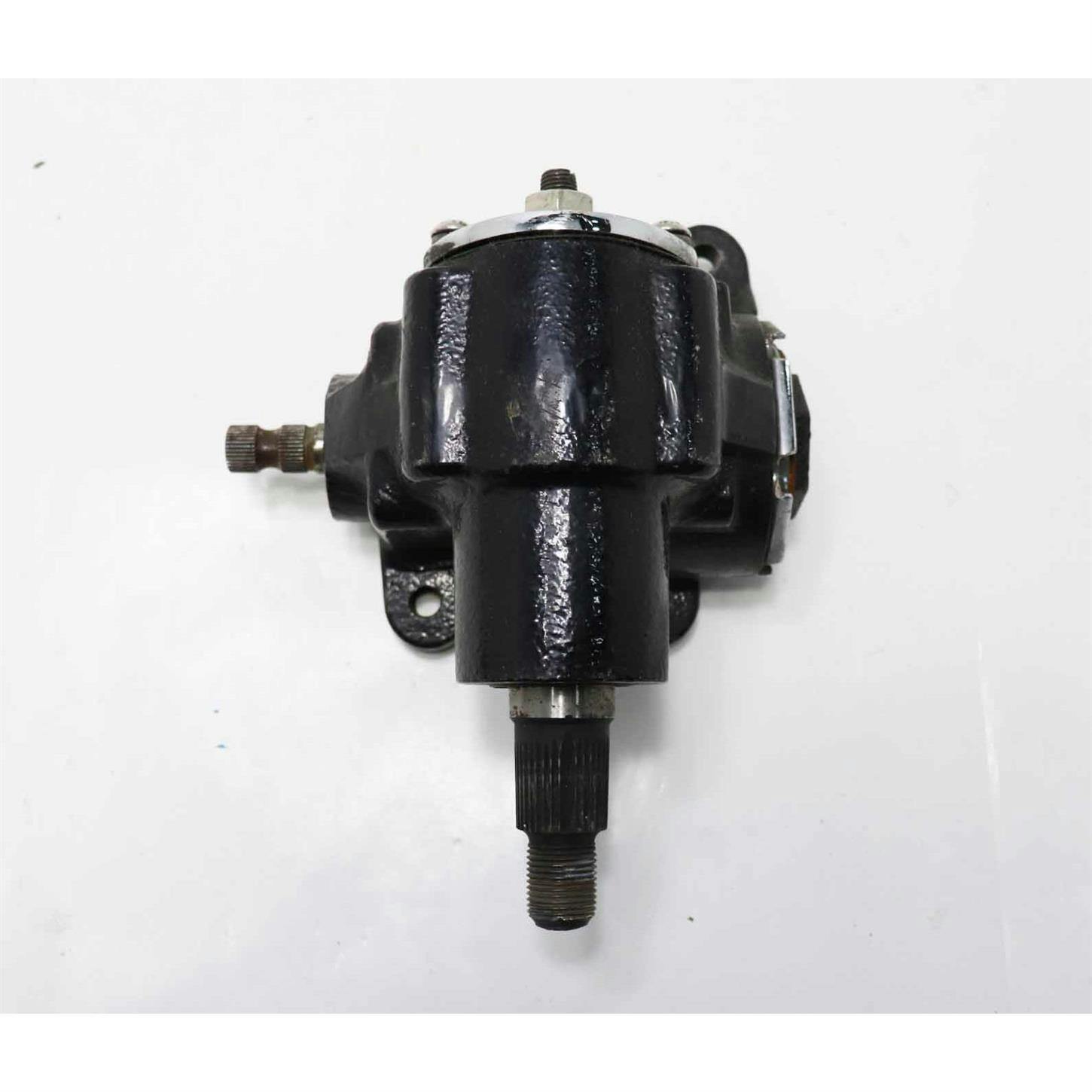

Speedway Vega Cross Steering Gear Box

Write a Review

Ask a Question

Out of Stock

This item is currently not available

Shop all Speedway Steering Gear Boxes

Product Summary

Manual Steering Box Type, 20:1 Steering Ratio, Steel

See more details

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Installation Details

Installation Tips

Must use pitman arm #702-2924 or #702-2925.
Recommended for vehicles under 2800 lbs.
The Vega box is the best choice for Model T - 1934 Ford chassis. 1935-48 chassis can use this Vega box or, if you need power steering, use Saginaw box 910-32500.

Output Shaft (for Pitman arm):
- Splined area tapers from .997" to .934"
Input Shaft 5/8"-36 spline
Centerline through the output shaft to the front of the box is about 3"
Overall length of the box not including the input shaft is 5-3/4"
Input shaft extend rearward 1-3/16"
From adjust screw to end of output shaft is 8"
From outside of box to area on mounting surface is 4-1/2"
Box has a swell in the casting that extends past the mounting legs an additional 1/4"
Mounting pattern is 2-3/4" and 4-3/8" center to center of the three mounting holes

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

This is garage sale priced because it was installed and will need to be adjusted.

No Warranty, No Returns on Garage Sale Items

The Vega Manual Steering Box is the foundation of a cross steering system, which is the most popular steering system for modern Hot Rods. These boxes are compact, durable and are getting more scarce every day.

This unit bolts up to all normal Vega-type brackets and accepts Vega-spline u-joints, pitman arms and accessories. Durable cast iron and machined steel construction will give years of high-mileage service.

New castings and components
Faithful reproduction of size, shape and mounting hole locations
No core charge

Cross Steering Guide (GIF)

Application

Note: Vega steering box is not adjusted at the factory and therefore, it is necessary that the steering box be adjusted upon installation per the instructions as provided on the PDF instruction sheet.

910-32204 Instructions (PDF)

Application

This steering box will bolt to and can be utilized with the following steering box mounts:

916-32005 Model T-1934 Ford Frame - Steering Box Mount
916-32003 1935-41 Ford Frame - Steering Box Mount
916-32004 1941-48 Ford Frame Saginaw Steering Box Mount
