Product Summary

Universal Fit

  • Gives you better control than a Panhard Bar
  • Perfect for coil spring or coil-over rear suspension
  • For chassis widths of 46" or less
  • Threaded approximately 2" on each end

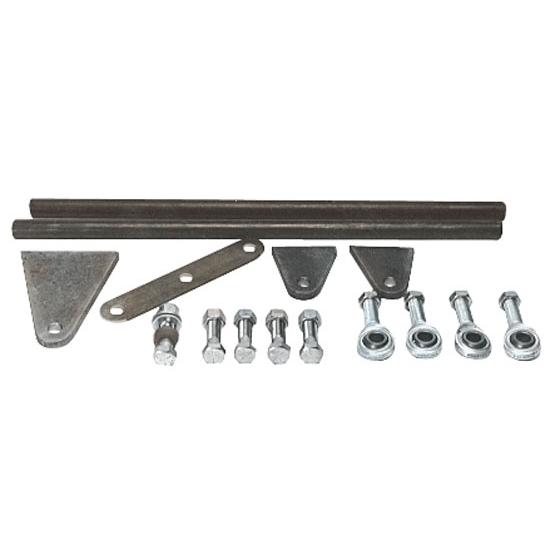

  • Includes mounting brackets, rod (19" threaded for 1/2" rod ends), jam nuts and all required hardware

Key Specs

MFG. Part #91649023
BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 91649023 Details

Gives you better control than a Panhard Bar. Perfect for coil spring or coil-over rear suspension. For chassis widths of 46" or less. Threaded approximately 2 “ on each end.

Kit includes:

  • mounting brackets
  • rod (19" threaded for 1/2" rod ends)
  • jam nuts
  • all required hardware

Charts

Specs

  • Long tab for the rear end housing is 5-1/4" overall length
  • Long tab is 4-5/8" from bottom to center of link mounting hole
  • Long tab overall width is 2-15/16" at base and is 3/8" thick
  • Short tab for frame rail mounts are 2-5/8" tall
  • Short tabs are 2" from base to center of link mounting hole
  • Short tabs are 2" wide at base and 5/16" thick
  • Center pivot plate center to center rod end spacing is 6-1/4"

Speedway Motors 91649023 Specifications

KEY SPECS
MFG. Part #91649023
BrandSpeedway Motors
