#7022940
Universal Street Rod Pitman Arm for GM 525/605 Steering Box
- Fits GM 525 manual and 605 power steering boxes
- 7" center to center
- Universal Fit
$89.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 8.7975" Overall Length, Steel
- Fits GM 525 manual and 605 power steering boxes
- 7" center to center
- Universal Fit
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 7022940 Details
Speedway Motors 7022940 Details
More people are using the GM 525 manual or 605 power steering box. This universal pitman arm is 7" center to center. Universal pitman arm fits GM 525 manual and 605 power steering boxes.
- This pitman arm is universal and is not designed to fit any OEM applications.

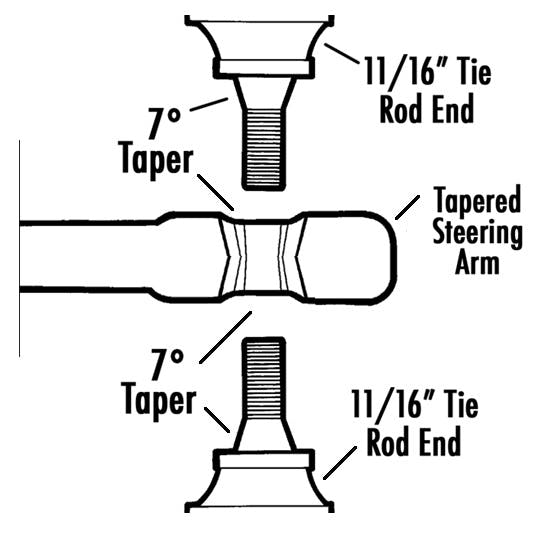

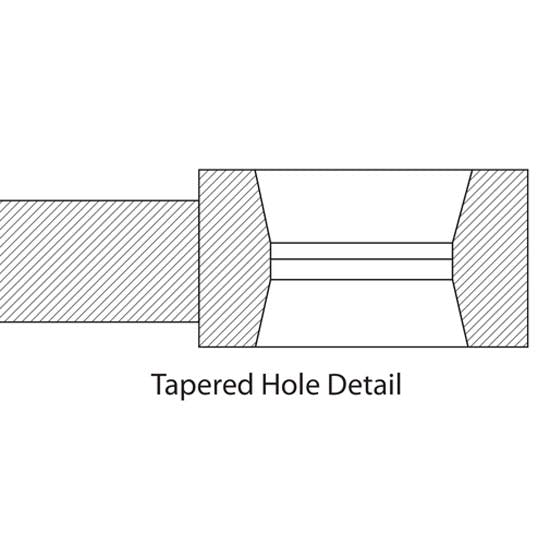

- The small hole on this arm is double-tapered, meaning that it will accept a 7-degree tapered Ford tie rod end from either side.
- The splined hole measures approximately 1-1/16" on the side that fits toward the box.
- For 1" splined shaft.
- Arm features steering box splines full 360 degree in arm- no master splines utilized in arm
Item Details
for 910-32277 525/605 Steering Box
Application
This pitman arm is 'universal' meaning that it is not for any particular car.
This pitman arm will fit 525 and 605 power steering boxes, but it will NOT fit 800 boxes (such as our 910-32500 & 910-32510)
Speedway Motors 7022940 Specifications
Speedway Motors 7022940 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 7022940 |
| Brand | Speedway Motors |
| Material Type | Steel |
| Finish | Zinc Plated |
| GENERAL | |
| Overall Length | 8.7975" |
| Center to Center | 7" |
| Degree of Taper | 7 degree |
| Sold in Quantity | Each |
| Notes | This arm is double tapered so it will accept a 7* tapered tie rod end from either side. It can be bent using "lots" of heat. |
Ratings & Reviews
4.4
10 Reviews
Customers praise the product for its high quality and practicality. They particularly note the dual tapered ends of the tie rod, enhancing usability. Users appreciated its universal fit nature, being stronger and more cost-effective than stock parts on certain equipment. The product also proves to be easily adaptable to customized setting for different vehicles. However, users noted a need to slightly modify the product for precise fitting. While its size made it unsuitable for some models, its strength and flexibility were highly commended.
Ratings & Reviews
4.4
10 Reviews
Customers praise the product for its high quality and practicality. They particularly note the dual tapered ends of the tie rod, enhancing usability. Users appreciated its universal fit nature, being stronger and more cost-effective than stock parts on certain equipment. The product also proves to be easily adaptable to customized setting for different vehicles. However, users noted a need to slightly modify the product for precise fitting. While its size made it unsuitable for some models, its strength and flexibility were highly commended.
4.4
10 reviews
5
7
4
2
3
0
2
0
1
1
Most Liked Positive Review
4.0
Chevy parts in a Yanmar
Good price on a universal fit product. I am using this to replace the weak and expensive parts on a Yanmar 186 tractor. The Chevy 525 box with this arm fits the tie rod actuator on the tractor and is 4x stronger than the stock setup. Much cheaper too, but one does need to fab a bracket.
Most Liked Negative Review
1.0
Wrong length for my 61 Impala
Too long for my 61 Impala using a Borgeson 600 Delphi power steering box
Filter by Ratings
Very good quality
5.0
a year ago
Chris in Fontana
Fontana California
Verified
Bought this to use on a F-100 steering box. It is the right size, but you have to grind the four large double groove sections off the steering shaft.
Would Recommend
Yes. if I were to build another hot rod
5.0
a year ago
Firedome 8
western Illinois
Verified
With 525 steering gear for cross steering in Model A 2 door sedan.
Would Recommend
I would buy again
5.0
a year ago
grecos speed shop
custer wi
Verified
Kinda a hard pitmen arm to find work out great. 1981 z28 drag car took the power sterring box out and put a manual box in from a 1966 gto. With speedways pitman arm I kept all the geometry the same. Good job speedway!
Would Recommend
I ordered this part wrong
5.0
2 years ago
Possom
Backwoods Arkansas
Verified
Ordered it wrong had no trouble returning it
Would Recommend
Pitman arm
5.0
3 years ago
Ron
Bloomfield
Verified
I like the way the tie rod end is tapered on both sides.
Would Recommend
just what I needed
5.0
4 years ago
jim's buggy
miami fla,
Verified
I was able to get the full movement of the steering box to match full movement of the differential.
Very nice quality part.
4.0
8 years ago
Johnny
Northern PA
Verified
Had to ream the small end out slightly for a 5/8 bolt.
Would Recommend
Chevy parts in a Yanmar
4.0
10 years ago
Command Liner
Benton County Oregon
Verified
Good price on a universal fit product. I am using this to replace the weak and expensive parts on a Yanmar 186 tractor. The Chevy 525 box with this arm fits the tie rod actuator on the tractor and is 4x stronger than the stock setup. Much cheaper too, but one does need to fab a bracket.
Would Recommend
Wrong length for my 61 Impala
1.0
11 years ago
CRUIZN1961
Masscahusetts
Verified
Too long for my 61 Impala using a Borgeson 600 Delphi power steering box
Would Not Recommend
Nice hunk of steel
5.0
16 years ago
stef the roader
tucson, az
great product - used it for my lifted FJ40 because i could easily alter it to fit my lift and steering arms
Would Recommend
Showing 10 of 10 reviews
Questions & Answers
Questions & Answers
7 Questions • 9 Answers
Im doing a manual steering conversion in a 79 camaro with power steering . Im using a s10 manual box I believe is a saginaw 525 . Im wondering if this 7 inch arm will work .
by Lee
• 8 years ago
2 answers
View Answers
Will this work with a stock manual steering box on a 1985 Buick Regal?
by trevor
• 10 years ago
1 answer
View Answer
Will this work on my new sweet steering box part # 910-32517
by mikeysfast15
• 10 years ago
1 answer
View Answer
Can the pitman arm be heated & bent? The pitman arm sits a little too low & needs to be bent to clear the main tie rod.
by 4894spd
• 11 years ago
1 answer
View Answer
will it fit a 64 nova manual box? I have a 64 Nova that I put a gasser front end on, will this fit the stock manual steering box?
by cjensen
• 13 years ago
1 answer
View Answer
What is the spline count?
by ed
• 14 years ago
1 answer
View Answer
I am using heim joints with 5/8" bolt. Measured old chevy steering arm tapered hole and it's 5/8" tapered down to 1/2". What is max diameter of this pitman arm hole. Hoping it's 5/8" and I can just drill out taper.
by
• 15 years ago
2 answers
View Answers
7 of 7 questions shown
