#91080154

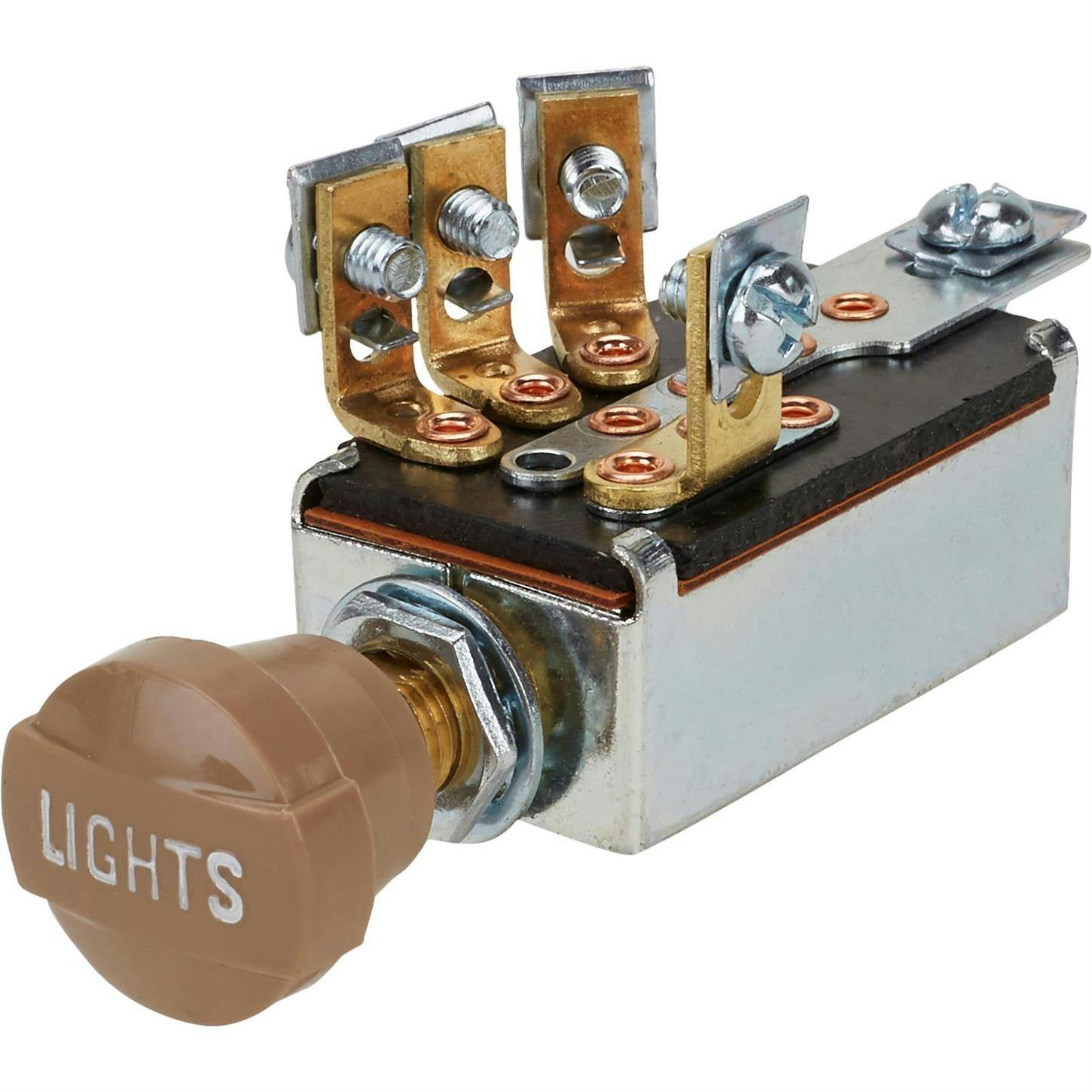

Speedway Universal Headlight Switch with Hi/Low
- Headlight switch is four position
- When the knob is all the way in it is the off position. One notch out is park lights, two notches out is low beams, and all the way out is high beams
- Screw type terminals for easy connection of wires
$46.99
/each
In Stock
$67.99
Save $21.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 3.50" Overall Length, .80" Overall Width
- Headlight switch is four position
- When the knob is all the way in it is the off position. One notch out is park lights, two notches out is low beams, and all the way out is high beams
- Screw type terminals for easy connection of wires
- Requires a 3/8" mounting hole to install the switch
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91080154 Details
Speedway Motors 91080154 Details
This headlight switch has four positions. In is off, out one notch is park lights, out another notch is lows beams, and all the way out is high beams. Screw type terminals. 3/8" mounting hole. Works with both 6V and 12V systems.
Charts
910-80154 Instructions (PDF)
Guides & Documents
Speedway Motors 91080154 Specifications
Speedway Motors 91080154 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91080154 |
| Brand | Speedway Motors |
| GENERAL | |
| Overall Length | 3.50" |
| Extended Length | 4.38" |
| Overall Width | .80" |
| Overall Height | 1.44" |
| Knob Length | .73" |
| Hole Diameter | .375" |
| Thread Pitch | 10-32 |
| Number of Positions | Four |
| Amperage | 10 amps |
| Terminal Type | Spade |
| Sold in Quantity | Each |
Ratings & Reviews
4.7
92 Reviews
The product is praised for its usability and compatibility with many classic and custom-build cars, often overcoming limited dashboard or footwell space. Customers appreciate its integrated high beam feature, reducing the need for additional wiring or floor-mounted dimmers. The product is recommended for its easy and straightforward installation and wire adjustment process. However, some customers note that precautions must be taken to avoid the terminals from shorting out, due to their proximate alignment. The solid build quality and handy screw-on knob are also positively mentioned. The switch seems to present issues when transitioning between beam settings, which some customers found inconvenient. Despite minor critiques, the product is frequently repurchased for different vehicles, demonstrating customer loyalty and product dependability.
Ratings & Reviews
4.7
92 Reviews
The product is praised for its usability and compatibility with many classic and custom-build cars, often overcoming limited dashboard or footwell space. Customers appreciate its integrated high beam feature, reducing the need for additional wiring or floor-mounted dimmers. The product is recommended for its easy and straightforward installation and wire adjustment process. However, some customers note that precautions must be taken to avoid the terminals from shorting out, due to their proximate alignment. The solid build quality and handy screw-on knob are also positively mentioned. The switch seems to present issues when transitioning between beam settings, which some customers found inconvenient. Despite minor critiques, the product is frequently repurchased for different vehicles, demonstrating customer loyalty and product dependability.
4.6
92 reviews
5
72
4
14
3
3
2
0
1
3
Most Liked Positive Review
5.0
Long overdue idea.
I have purchased 2 of these switches from Speedway. What I like best is the built-in high beam position because it simplifies wiring. There is one less component (the switch on the floorboard) with the accompanying wires. The first switch is in a T-bucket which I don't drive at night a lot, and having the dimmer on the dash is not at all inconvenient. The second is going in a '21 Dodge Bros. touring which is nowhere near road-ready, but I wouldn't consider any other switch. The knob has a cool vintage look, too.
Most Liked Negative Review
1.0
Wish it worked
Bought it several months ago but progress on project has been slow this summer so just now installed switch, and the only terminal that has power is for the tail lights and only works in the high beam location, actually seen arching from the main power terminal to one of the other terminals the first time I pulled the switch...I'm sure it's a decent product I just received a defective one...
Filter by Ratings
Exactly what we needed!!!
5.0
2 months ago
Simon
Phoenix, Az
Verified
We didnt want to install a floor high beam switch, in out 27 T-Roadster build. This switch was a great alternative!!!
Would Recommend
Excellent Switch
5.0
5 months ago
Sam
27604
Verified
Ignition Switch
I would buy this again.
5.0
a year ago
Jb
Watertown WI
Verified
Great product
Would Recommend
Easy install & it works great!
5.0
2 years ago
Jr
Kansas
It was a very easy install & it allowed me to move my dimmer switch off the floor! A must have for a big guy in a chopped 5 window. Definitely recommend
Would Recommend
Yes Ĝreat item
5.0
2 years ago
J B
Pennsylvanna
Verified
1936 Dodge 2-seat business coupes Street Rod Won't have to use floor mounted dimmer Switch
Would Recommend
Yes
5.0
2 years ago
Robber
Wahoo Nebraska
Verified
Worked out great
Would Recommend
Yes
4.0
2 years ago
Dogpound
Winona, Minnesota
Verified
Fit the small dash space I have in a 1925 T coupe streetrod
Would Recommend
worked great
5.0
3 years ago
Chopper
Topeka, Ks
Verified
I like the screw on knob with the allen head set screw . Its a lot easier to adjust and install .
Would Recommend
You bet I'd buy this again
5.0
3 years ago
Mike
Pinckney Michigan
Verified
Simplified light wirering
Would Recommend
I would buy this again
5.0
3 years ago
Cliff's t
Abilene Tx
Verified
Worked great on my t
Would Recommend
Showing 10 of 92 reviews
