Speedway Tri-Five Front & Rear Disc Brake Conv., D/S Rotors, Red

#91664008

Speedway Tri-Five Front & Rear Disc Brake Conv., D/S Rotors, Red

Features large single bore GM powder coated red calipers w/ pads
Will fit the full size chevy 1955-1958 platform
Rotors have an 11" diameter and are drilled and slotted for optimal heat dissipation

Booster/Cylinder Finish:

Caliper Color:

$1,287.99

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front and Rear Position, 11 Inch Rotor Diameter

Features large single bore GM powder coated red calipers w/ pads
Will fit the full size chevy 1955-1958 platform
Rotors have an 11" diameter and are drilled and slotted for optimal heat dissipation
Kit includes everything needed for converting both the front and rear
Also comes with an 8" dual zinc brake booster w/ necessary firewall brackets

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	91664008
Position	Front and Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91664008 Details

Our all inclusive disc brake conversion kit makes it easy for the budget minded hot rod enthusiast to convert their drum brakes to disc brakes. The GM full size kits won't require you to swap out spindles, saving you time and money. The included power brake conversion gives you full braking power.

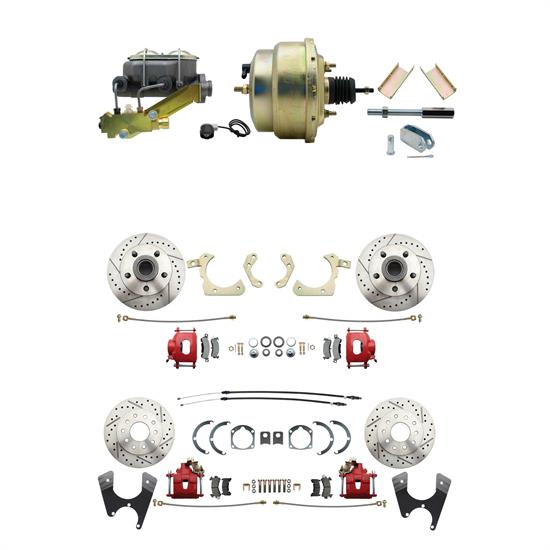

Full Size Chevy 1955-1958 Complete Stock Height Front & Rear Disc Brake Kit Includes

11" Drilled & Slotted Rotors
Large Single Bore GM Powder Coated Red Calipers w/ Pads
Caliper Brackets
Hoses with Banjo Bolts
Bearings
Seals
Dust Caps
Spindle Nuts
Spindle Washers
All Hardware

1955-1958 GM Full Size 8" Dual Zinc Booster Conversion Kit (Impala, Bel Air, Biscayne)

Includes:

1" Bore Dual Bail Cast Iron Master Cylinder
Brass Proportioning Valve Kit for Left Mount
8" Dual Zinc Booster w/ Firewall Brackets
Pedal Extension & Clevis

Charts

Installation Instructions (PDF)

General Booster Instructions (PDF)

Specs

The caliper piston pin needs to be aligned with the notch in the pad to avoid fitment issues.

Guides & Documents

Disc Brake Kits Installation Instructions (91664008)

Speedway Motors 91664008 Specifications

KEY SPECS
MFG. Part #	91664008
Brand	Speedway Motors
Position	Front and Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	One
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	Yes
Brake Booster Included	Yes
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Color	Red
Bolt Pattern	5 on 4.75"
Front Caliper Piston Quantity	1
Front Caliper Finish	Powder Coated

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Can this kit fit a new 9" Ford aftermarket rearend

by Rick

• 4 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1955-1958 Chevy Bel Air

1958 Chevy Biscayne

1958 Chevy Brookwood

1957-1958 Chevy Del Ray

1955-1958 Chevy Nomad

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Two-Ten Series
