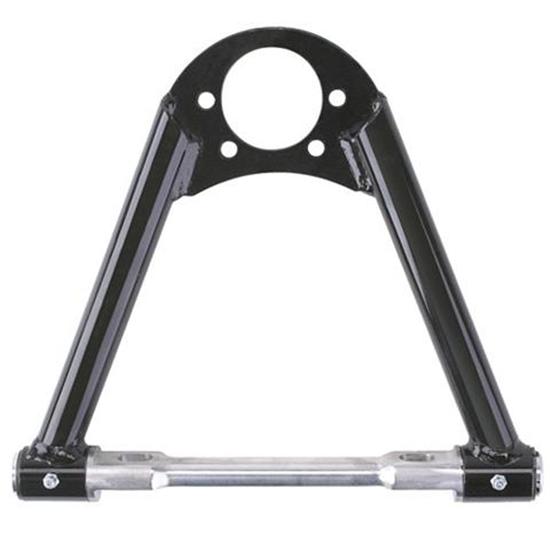

Speedway Strut Type Upper Control Arm, Steel Cross Shaft, 9 Inch

Ask a Question

These strut style tubular steel upper control arms feature an aluminum cross shaft
Accept Moog K6024 or K6136 style bolt-in ball joints

$43.99

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Upper Position, Tubular Control Arm Style, Steel

These strut style tubular steel upper control arms feature an aluminum cross shaft
Accept Moog K6024 or K6136 style bolt-in ball joints

See more details

Key Specs

MFG. Part #	91720009S
Brand	Speedway Motors
Position	Upper
Control Arm Style	Tubular

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

Speedway Motors 91720009S Details

These strut type tubular steel upper control arms feature a steel cross shaft. They accept Moog K6024 or K6136 style bolt-in ball joints. These A-arms have a 6" center-to-center mounting bolt pattern. Length is measured from cross shaft centerline to ball joint center.

CA Prop 65

Speedway Motors 91720009S Specifications

KEY SPECS
MFG. Part #	91720009S
Brand	Speedway Motors
Position	Upper
Control Arm Style	Tubular

GENERAL
Speedway Motors Catalog Part #	917-20009S
Mount Center to Ball Joint Center	9.00"
Mounting Bolt Center to Center	6.00"
Material Type	Steel
Cross Pin Material	Steel
Bushing Material	Steel
Tube O.D.	1.00"
Hole Diameter	2.13"
Shaft Diameter	.75"
Material Thickness	0.21"
Finish	Painted
Sold in Quantity	Each
