#91040712

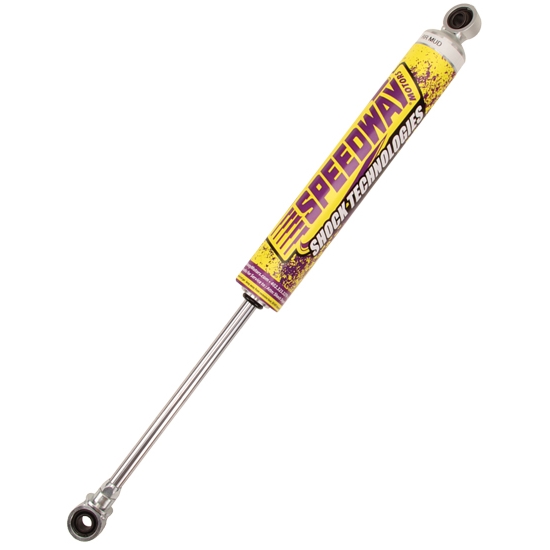

Speedway Sport Mod Left Front Mud Shock
- Stock mount style shocks are tuned for your Southern Sport Mod
- Includes seven shocks, instructions and recommended set ups
See More
$172.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before September 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Sport Mod, Mono Tube Shock Type, Smooth Shock Body Type
- Stock mount style shocks are tuned for your Southern Sport Mod
- Includes seven shocks, instructions and recommended set ups
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Position | Front Left |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91040712 Details
Speedway Motors 91040712 Details
Take the guess work out of selecting the right shocks for ever-changing track conditions. Speedway Motors shock department has worked with several teams to develop these winning B-Mod shock combinations. They have run thousands of laps testing and have won many features. These shocks are based on the Bilstein SZ Series shocks, which makes them a great choice for IMCA, NASCAR and WISSOTA Modifieds/Sport Mods. Speedway has tested and hand-selected the combination of valving and pistons to promote ideal handling and improved feel for any track condition.
Each shock is built and dynoed in-house. Each shock is individually labeled for each corner of the car with a 'Mud', 'Mid' or 'Slick' notation, making it easy to hit the right setup every time.
B-Mod Left Front 'Mud' shock, 7" stroke.
Speedway Motors 91040712 Specifications
Speedway Motors 91040712 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91040712 |
| Brand | Speedway Motors |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Position | Front Left |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.14" |
| Finish | Zinc Plated |
| Coil-Over Compatible | Yes |
| External Canister | No |
| GENERAL | |
| Schrader Valve | No |
| Body Diameter | 2" |
| Rebuildable | Yes |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | 0.625" |
