Speedway Socketless Push-On Hose End Fitting Kit, -8AN

90° socketless push-on hose ends for 37° fittings.

• -8 AN female to push-on hose barb adapter
• Lightweight aluminum hose ends are completely reusable and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Available in a Red/Blue corrosion-resistant finish

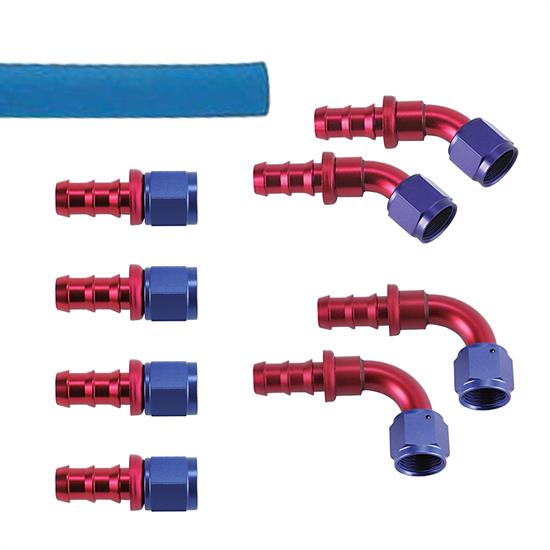

Kit Includes:

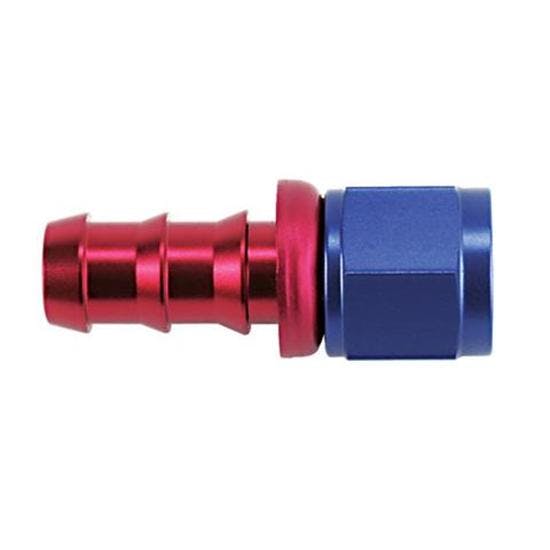

• (4) Straight Socketless Push-On Hose End

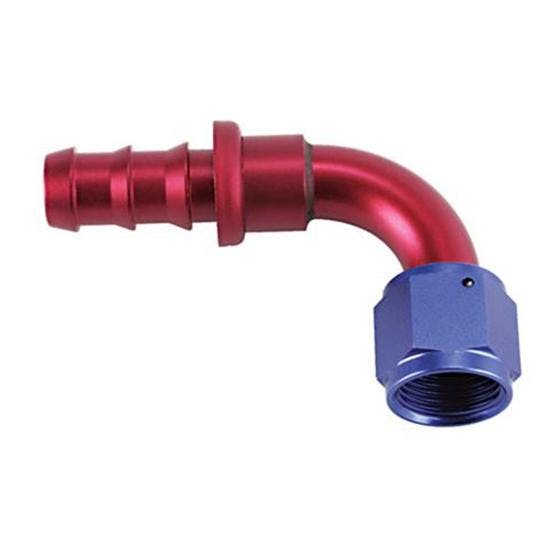

• (2) 90 Degree Socketless Push-On Hose End

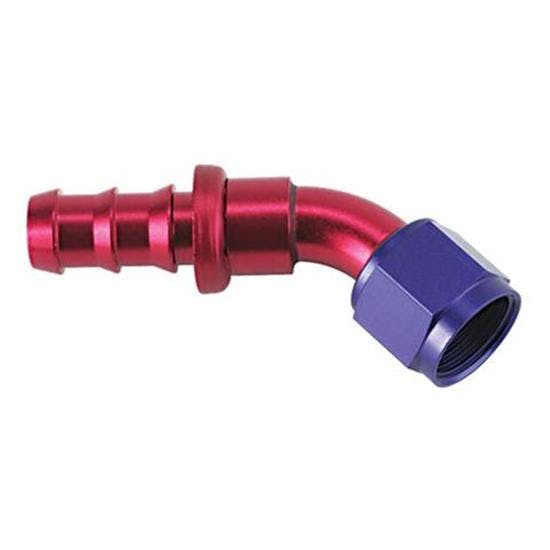

• (2) 45 Degree Socketless Push-On Hose End

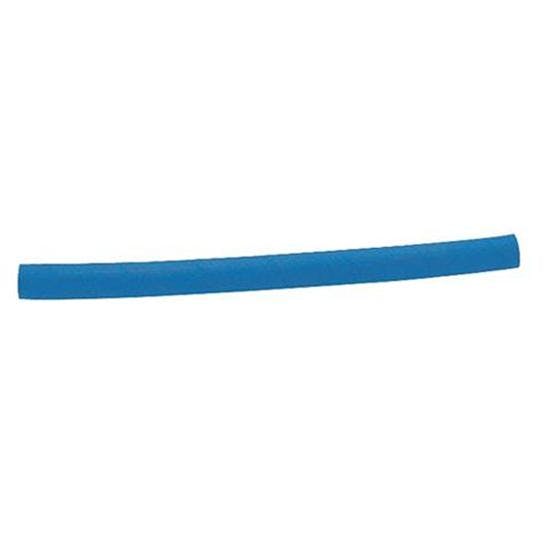

• (1) 20 Foot Blue Push-On Hose -8AN

Socketless Push-On Hose Ends

• Lightweight aluminum hose ends are completely reusable and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Finished in a Red/Blue corrosion-resistant coating

-8AN Blue Push-On Hose

• Blue push-on hose available in AN6, 8, 10 and 12 sizes
• Working temperature of -40 to +200 deg
• 150 psi max pressure
• Ideal for fuel line applications only
• Not suited for oil or water applications exceeding temperatures of 200 degrees
• Use with Speedway brand push-on fittings
• When using at temp and pressures at the high end of the parameter, hose clamps should be utilized.

Socketless Push-On Hose Ends Application Chart (GIF)
