Part # 9101137

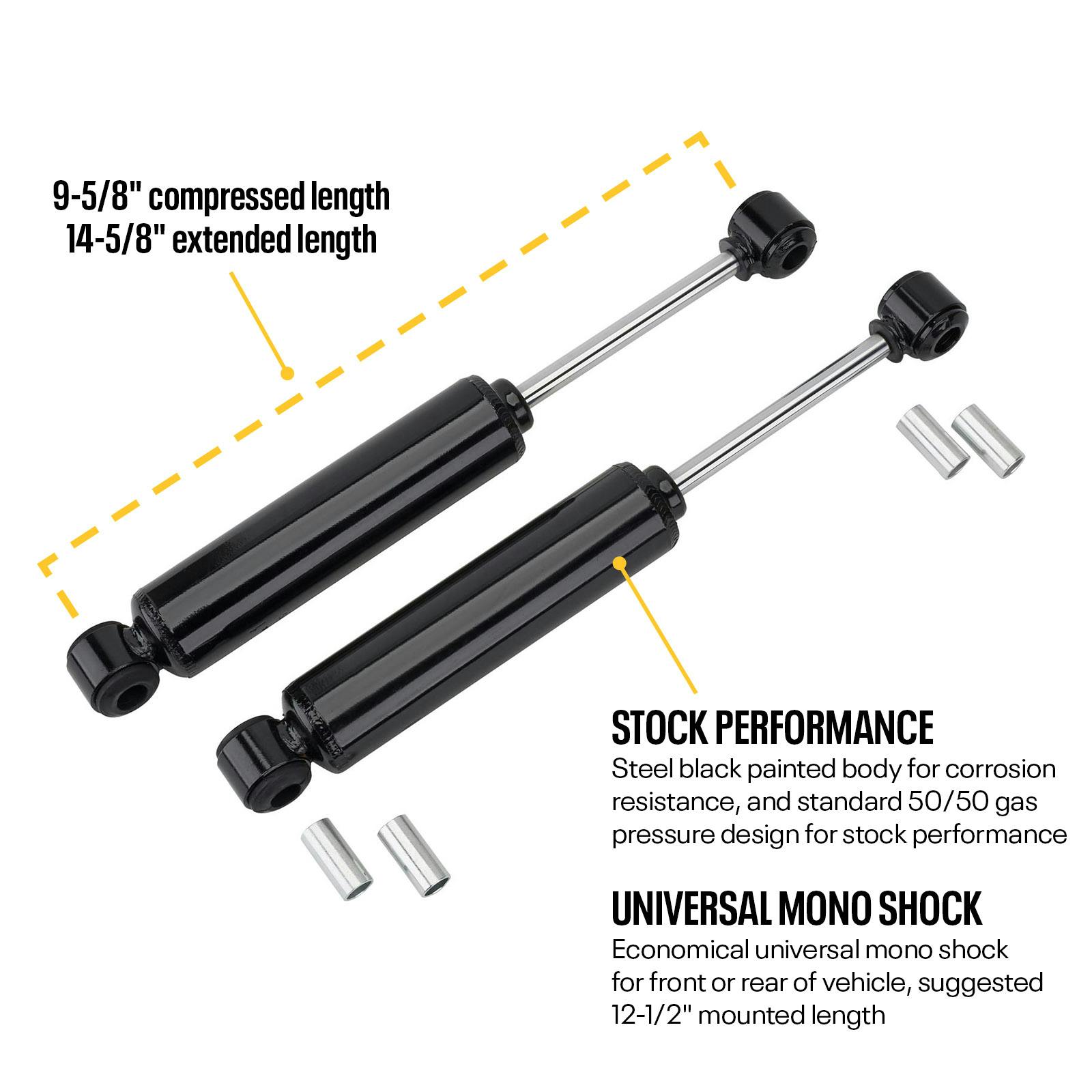

Speedway Short Gas-Filled Tube Shocks, Black, Set of 4
by
Speedway Motors- Economical universal mono shock for front or rear of vehicle, suggested 12-1/2" mounted length
- Bushings included for use with either 1/2" or 5/8" bolts allows versatility for multiple applications
- Steel black painted body for corrosion resistance, and standard 50/50 gas pressure design for stock performance
See More
$136.99
kit
In Stock
$144.00
Save $7.01
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 12.50" Mounted Length, Painted
- Economical universal mono shock for front or rear of vehicle, suggested 12-1/2" mounted length
- Bushings included for use with either 1/2" or 5/8" bolts allows versatility for multiple applications
- Steel black painted body for corrosion resistance, and standard 50/50 gas pressure design for stock performance
- 9-5/8" compressed, 14-5/8" extended offers 5" of travel
- Conveniently sold as a set of 4
Comes as a Kit
View Kit Components
See more details
Key Specs
| Brand | Speedway Motors |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These high-pressure gas shocks are designed for front or rear axle use. They come complete with 1/2" rubber bushings.
- Set of four shocks
- 9-5/8" compressed length
- 14-5/8" extended length
- 5/8" I.D. eyelets
- Includes 8 steel sleeves with 5/8" O.D. and 1/2" I.D.
- Can be used with 5/8" or 1/2" bolts
(Dimensionally similar to Pete and Jake's 1084) For chrome shock version see the Pro 582-SM500.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Speedway Motors |
| GENERAL | |
| Mounted Length | 12.50" |
| Upper Shock Mount | 5/8" Bushed Eyelet |
| Lower Shock Mount | 5/8" Bushed Eyelet |
| Extended Length Range | 14.00" to 14.99" |
| Extended Length | 14.625" |
| Compressed Length Range | 9.00" to 9.99" |
| Compressed Length | 9.625" |
| Schrader Valve | No |
| Finish | Painted |
| Body Diameter | 1.85" |
| Bushing Material | Polyurethane |
| Sold in Quantity | Kit |
| Notes | Bushings are included to reduce from 5/8" to 1/2". |
| Hole Diameter | 0.625" |
| Shock Eyelet Width | 1.42" |
| Bushing Length | 1.38" |
| Gas Charged | Yes |
