Product Summary

Front Position, 11 Inch Rotor Diameter, Natural

  • Will fit 1959-1964 Chevy's
  • 5 x 4-3/4" bolt pattern
  • 11" rotor diameter
  • Powder coated caliper finish
  • Also fits 1959-1964 GM Full Size (Impala, Bel Air)

Comes as a Kit

See more details

Key Specs

MFG. Part #91664013
PositionFront
Wheel Bolt Pattern (in.)5x4.75 in.
Wheel Bolt Pattern (mm)5x120.65 mm
Rotor Diameter11 Inch
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Speedway Motors 91664013 Details

Our all inclusive disc brake conversion kit makes it easy for the budget minded hot rod enthusiast to convert their drum brakes to disc brakes. The GM full size kits won't require you to swap out spindles, saving you time and money. Want power brakes? Add a power brake conversion and have full braking power. Booster conversion kits come in many finishes and sizes and can be configured to any kit.

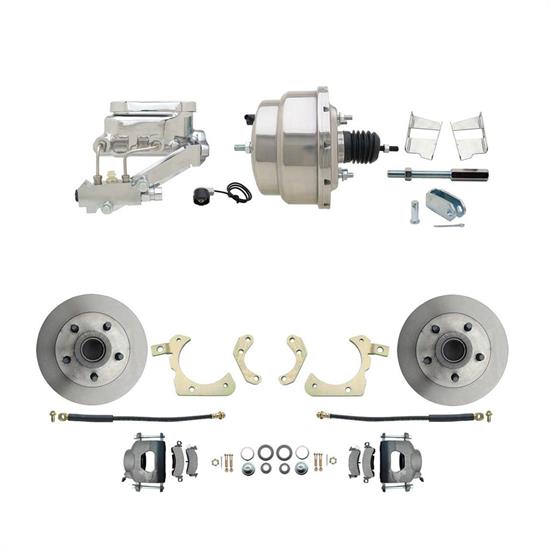

Full Size Chevy 1959-1964 Complete Stock Height Disc Brake Kit Includes

  • 11" Rotors
  • Large Single Bore GM Calipers w/ Pads
  • Caliper Brackets
  • Hoses with Banjo Bolts
  • Bearings
  • Seals
  • Dust Caps
  • Spindle Nuts
  • Spindle Washers
  • All Hardware

1959-1964 GM Full Size (Impala, Bel Air)

  • 8" Dual Chrome Booster Conversion Kit
  • Flat Top Chrome Master Cylinder
  • Left Mount Disc/ Drum Proportioning Valve Kit

Charts

Speedway Motors 91664013 Specifications

KEY SPECS
MFG. Part #91664013
BrandSpeedway Motors
PositionFront
Wheel Bolt Pattern (in.)5x4.75 in.
Wheel Bolt Pattern (mm)5x120.65 mm
Rotor Diameter11 Inch
Rotor TypeVented
Caliper PistonsOne
Caliper FinishNatural
Parking Brake ProvisionNo
Minimum Recommended Wheel Diameter15 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StyleDrilled & Slotted
Front Rotor IncludedYes
Front Rotor Diameter11 Inch
Front Caliper IncludedYes
Rear Caliper IncludedNo
Front Spindles IncludedNo
Master Cylinder IncludedYes
Brake Booster IncludedYes
Brake Hoses IncludedYes
Rear Rotor IncludedNo
Bolt Pattern5 on 4.75"
ColorNatural
Front Caliper FinishNatural
Front Caliper Piston Quantity1

Questions & Answers

1 Question • 1 Answer

Will this kit work with 14x7 reverse spokes?

by V

• 4 years ago

1 answer

1 of 1 questions shown
