#91720003S

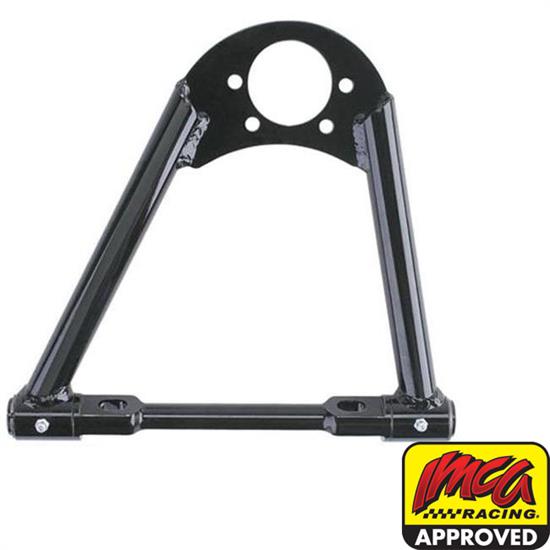

Speedway Offset Upper Control Arm, Steel Cross Shaft, RH, 8-3/4 Inch

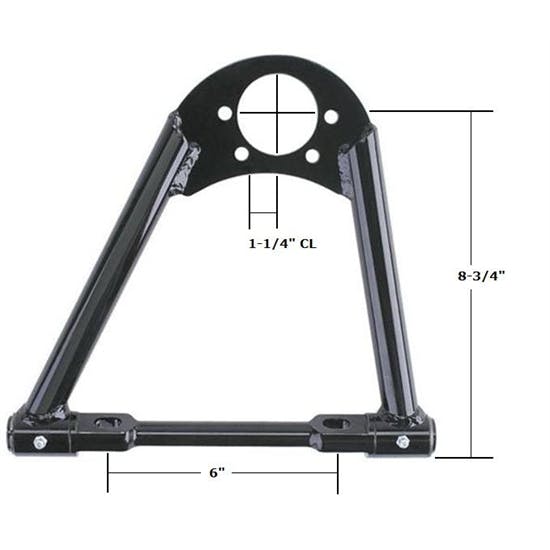

- This Right Hand control arm accepts K6024 or K6136 style ball joints
- Steel cross shaft mounts on 6" centers
- Control arm is offset 1-1/4" from centerline
$61.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
8.75" Mount Center to Ball Joint Center, Steel, Painted
- This Right Hand control arm accepts K6024 or K6136 style ball joints
- Steel cross shaft mounts on 6" centers
- Control arm is offset 1-1/4" from centerline
- Made from 1" OD tubing
- Black powder coated finish
Key Specs
| Control Arm Style | Tubular |
| Position | Right Upper |
| Ball Joint Type | Bolt-in |
| Bushing Material | Steel |
| Control Arm Material | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91720003S Details
Speedway Motors 91720003S Details
Offset type tubular steel upper control arm with IMCA approved steel cross shaft. Accepts Moog style K6024 or K6136 ball joints.
Charts
Guides & Documents
Speedway Motors 91720003S Specifications
Speedway Motors 91720003S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91720003S |
| Brand | Speedway Motors |
| Control Arm Style | Tubular |
| Position | Right Upper |
| Ball Joint Type | Bolt-in |
| Bushing Material | Steel |
| Control Arm Material | Steel |
| Hardware Included | Yes |
| Adjustable | No |
| Finish | Painted |
| GENERAL | |
| Mount Center to Ball Joint Center | 8.75" |
| Mounting Bolt Center to Center | 6" |
| Material Type | Steel |
| Cross Pin Material | Steel |
| Overall Width | 11.68" |
| Overall Length | 11" |
| Ball Joint Included | No |
| Sold in Quantity | Each |
| Tube O.D. | 1" |
| Shaft Diameter | 1.25" |
| Notes | Hole is oval shaped, .54" wide and .80" long. |
