Speedway Motors Optima Battery Installation Kit, Mount/Cables
Universal Fit, AGM Battery Type, Top Battery Terminals, Deep Cycle Battery Usage
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Outfit your ride with a charging system that's sure to stand up to any situation with these Optima Battery installation kits from Speedway Motors. These kits feature everything you need to mount and wire up your battery to bring your project to life.
- (1) Optima Red Top Battery
- (1) Billet Battery Mount Tray
- (1) 2-Gauge Battery Cable Kit, 18 ft.
- (1) Insulated Cable Mount Clamps, 1/2"
Optima Batteries 34/78 Red Top Battery
As featured on Classic Truck’s Week to Wicked. Watch the transformation here!
Discover the revolutionary new technology that has changed the way the world looks at batteries: Optimas famous Spiralcell Technology. These batteries last 2-3 times longer than other batteries and are 100% maitenance free. Plus, with the unique sealed design, you can mount them in any position.
- Strongest 5 second starting burst
- Up to 2x longer life
- More than 15x the vibration resistance
- Completely spill-proof, mountable in many positions
- Maintenance free
- Faster recharging capabilities
- Optimal starting power, regardless of temperature
4 post design - two on top and two on the side. Posts are 1-1/8" tall.
Optima Spec Sheet (PDF)
NOTE: For circle track / off road applications, we recommend the Optima Deep Cycle battery (Yellow Top).9-15/16" X 6-13/16" X 7-13/16" Can't ship Air!
- The vehicle must have a properly working alternator, and should not have “aftermarket accessories” with amperage drain exceeding 10 amps. For applications with extra accessories, the correct Optima battery to use is the Yellow Top.
- The vehicle must have a fully functional voltage regulated charging system. Use of accessories that prevent the charging system form maintaining the battery in a fully charged state will void the warranty and cause premature failure. For these applications, an Optima deep cycle battery is recommended for this combination of starting and heavy cycling.
- Red top batteries should only be used for hot rod/street rod/OE applications where the system has a fully functional voltage regulated charging system. Red top batteries should not be used for off road/circle track aftermarket performance applications. The warranty is voided when a red top battery is used with out a fully functional voltage regulated charging system.
Optima Red Top Warranty Info
- 12V Passenger Vehicle / Light Truck
- 36 Months Free Replacement, Remaining 36 Month Prorated
- Abusive service / Deep Cycle Applications / Car Audio
- Not covered
Complete Warranty - Purchased Before 2-1-09 (PDF)
Complete Warranty - Purchased On or After 2-1-09 (PDF)
Billet Battery Mount, 2-Bolt
These battery mounts work with Optima Red 980 CA (910-66411) and Yellow 870 CA (910-66412).
916-66600 Instructions (pdf)
2-Gauge Battery Cable Kit, 18 ft
Two-gauge standard copper battery wire with ends. This kit is intended for use with top-post batteries. It contains a 2 ft. long negative battery cable with terminals on both ends. The 18 ft. positive cable has a terminal (post clamp) at the 'battery' end, and a terminal to crimp on the other end.
Includes 2' long black negative cable, crimp end terminal, 6 E-Z ties, and 4 short pieces of shrink sleeve.
Insulated Line/Tubing Mount Clamps, 1/2"
You will need these rubber coated fuel line tube clamps and brake line clamps to finish your plumbing job. These tube clamps are made from zinc plated steel, are easy to work with, durable, and corrosion resistant.
10 clamps per package.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

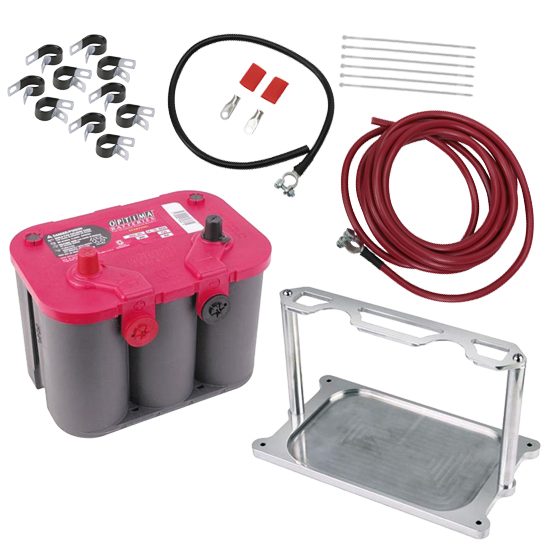

What's In The Kit
Optima Batteries 9004-003 Group 34/78 12V Red Top BatteryPart # 91066411Qty x 1
Billet Battery Mounts 2-BoltPart # 91666600Qty x 1
Speedway 2-Gauge Battery Relocation Cable Kit, Copper, 18 Ft. LengthPart # 91064505Qty x 1
Insulated Line/Tubing Mount Clamps, 1/2 Inch, Bag of 10Part # 91031312-1/2Qty x 1
