Speedway Motors Demo Derby Steering Column Kit, 78-96 Fullsize GM
- This convenient kit includes everything that will be required to build a steering column for your 1978 to 1996 GM full size derby car
- A steel steering wheel is included to handle the harsh conditions derby cars encounter
- Also included are the correct u-joints, quick release, heims, jam nuts, and steering shaft
- Push button style quick release ensures you will not lose a quick release pin
- Forged steel steering U joints offer increased strength over stock style rag joints
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Wanting to build your own steering column for your derby car, but not sure which steering u-joint fits your car? Speedway Motors has you covered. We have created a kit for everything that will be required to build a steering column for your derby car. This kit includes the correct u-joints, a steering wheel, heims, jam nuts, and steering shaft. This kit fits 1978-96 full-size GM cars.

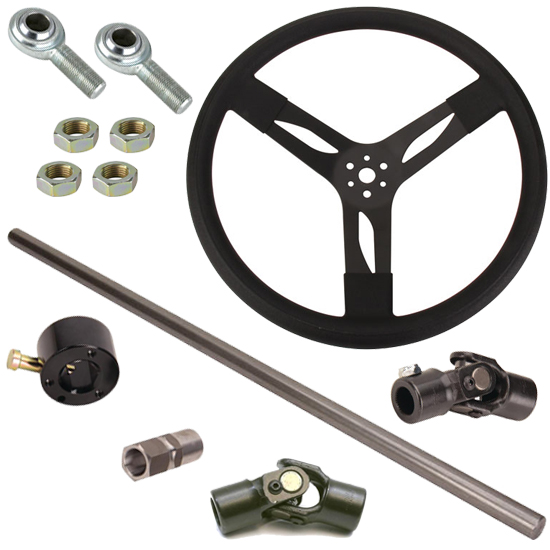

- (2) Steering U-joints
- (2) Steering Shaft Heim Joints
- (4) Jam Nuts
- (1) Steering Shaft
- (1) Quick Release Hub
- (1) Steering Wheel
This steering u-joint will connect the steering shaft to the steering box. Forged steel 3/4" 30-spline to 3/4" round weld-on steering U-joint.
- 3/4" 30 spline to 3/4" round
- Quantity 1
The next steering u-joint will connect the lower steering shaft to the upper steering shaft. Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering u-joints available. Made by Sweet Manufacturing. These steering universal joints have 3/4 weld-on ends.
- 3/4" round to 3/4" round
Steering Shaft Heim Joints:
3/4" heim for steering shaft support. Slides right over standard 3/4" steering shaft. 3/4"-16 right hand threads.
- .757" Ball hole
- Quantity 2
Plain steel fine thread jam nut.Special half thickness nuts for securing steering heims to a panel or flange.
- Quantity 4
Speedway steering shaft is made for you to cut-to-fit. This steering shaft entails:
- 3/4" O.D.
- 1018 solid steel steering shaft
- Quantity 1
Quick Release Hub:
These quick release hubs come with a one-piece hex steel sleeve that must be welded to your steering column. Features a spring-loaded push button release. Bolt holes for mounting steering wheel are 1/4"-20 thread.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Sweet U-Joint 3/4 - 30 Spline to 3/4 Round, Small GM P/S 78-UpPart # 91032238-PLNQty x 1
Sweet Mfg Steering U-Joint, 3/4 In Round to 3/4 In Round, UniversalPart # 91032234Qty x 1
Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16 RH Male .757 HolePart # 1750757Qty x 2
Thin Steel Jam Nuts, 3/4-16 RHPart # 1750247Qty x 4
Universal 3/4 Inch OD Solid Steering Shaft/Racing Column, 72 InchPart # 91632200-72Qty x 1
Speedway Hex Steering Wheel Quick-Release Assembly, 3/4 Inch, BlackPart # 91032847-BLKQty x 1
Black 3-Spoke 15 Dia, Cushion Grip Steering Wheel, 2.75 Inch DishPart # 60409020-BLKQty x 1
