Speedway Motors Complete Air Cleaner/Outerwear Filter Kit
Universal Fit, Filter Top Housing Style, Single Quad Fuel Intake Type, Round Shape, Red
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Outfit and protect your engine with these complete air filter kits from Speedway Motors. They feature a filter top 14" air cleaner designed for single quad applications as well as two shielded valve cover breathers. All air cleaners come complete with an outerwears prefilter for added protection.
- (1) Washable Air Filter Element - 14" x 4"
- (1) Super Flow 14" Air Filter Top
- (1) Sure Seal Air Cleaner Base
- (1) Sure Seal O-Ring Air Cleaner Spacer
- (1) Outerwears Air Cleaner Pre-Filter - 14" x 4"
- (2) Valve Cover Shielded Breathers - 1-3/8"
- (2) Outerwears Shielded Breather Pre-Filters
Air Filter Element:
These filter elements feature a multi-layer cotton gauze material which is 100% washable and reusable. Use appropriate filter cleaner and filter oil at every service.
Air Filter Top:
Take the solid lid off your 14" diameter air cleaner, replace it with this, and increase the air flow to your carb by 30%. Washable multi-layer cotton gauze filter media. Unit is 1.5" tall at center.
Use appropriate filter cleaner and filter oil at every service.
Air Cleaner Base:
Speedway's Sure Seal air cleaner base is manufactured from spun aluminum. Fits Holley carbs. Uses standard 14" diameter filters, sold separately. Minimum filter height required is 4".
- Base has a 1-1/2" drop
- Distance from the carb neck to top with .5" spacer and 4" filter = 4.25"
Air Cleaner Spacer:
The Sure Seal air cleaner riser allows you to raise the air filter up for additional clearance around your carburetor, carburetor linkage, or choke horn. This air cleaner spacer has a unique sealing O-ring on the carburetor side to prevent dust from entering past the air filter base.
- Available in three heights: 1/2", 1" or 2"
- Aluminum construction
- Works with Holley or Edelbrock Performer Series carburetors with 5-1/8" neck
- Seals out dirt and debris
Valve Cover Breathers:
These valve cover breathers feature a clamp-on shielded design with a black finish. These valve cover breather filters are washable & reuseable.
- Clamps to a 1-3/8" O.D. tube
- Black finish
- Overall height of the breather and base is 3-1/8”
- Overall diameter of breather without shield is 2-7/8”
- Overall diameter of breather with shield is 3-1/4”
- Quantity: 2
Air Cleaner Pre-Filter:
Outerwear for X-Stream and 14" x 4" standard element. (will not fit oversize elements). Black, Blue, Orange, Pink, Red, Yellow or Purple available.

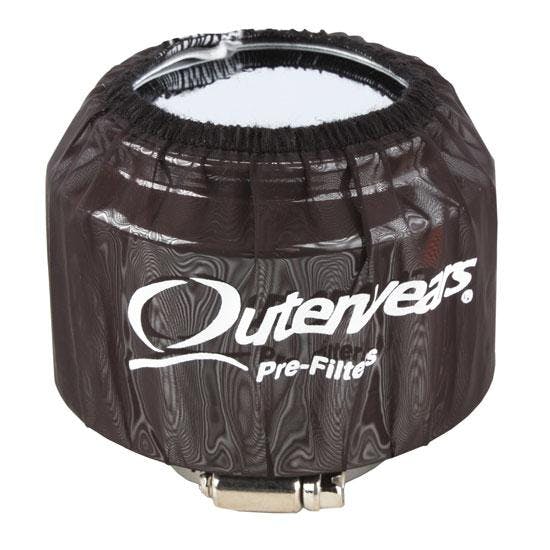

Shielded Breather Pre-Filters:
Various clamp-on shield colors including: Black, blue, orange, pink, purple, red and yellow.
- Base Diameter: 3"
- Top Diameter: 3"
- Height: 2-1/2"
- Quantity: 2

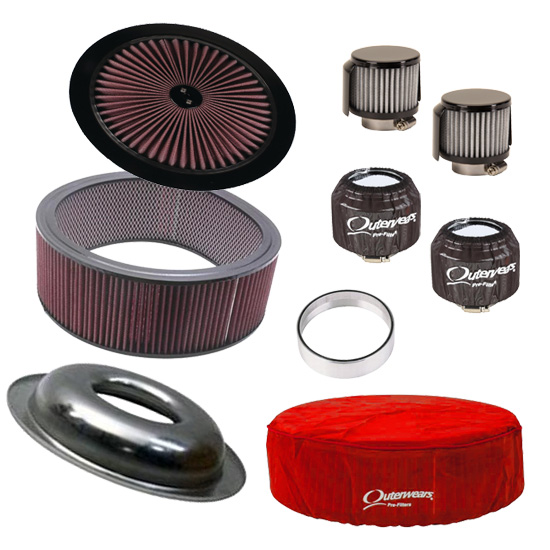

What's In The Kit
Speedway Super Flow 14 Inch Air Filter Top, BlackPart # 91011080Qty x 1
Outerwears Air Cleaner Pre Filter - 14 Inch x 4 InchPart # 564444TQty x 1
Speedway Washable Air Filter Element, 14 x 4 InchPart # 91011084Qty x 1
Sure Seal Air Cleaner Base Only, 14 InchPart # 91011062-2Qty x 1
Outerwears Shielded Breather Pre-FilterPart # 5641125Qty x 2
Black Valve Cover Shielded Breather, 1-3/8 InchPart # 4656210998Qty x 2
Sure Seal O-Ring Air Cleaner SpacerPart # 91011063Qty x 1
