Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit

Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit

Full Face Helmet Type, Snell SA2015 Safety Rating, Fiberglass Helmet Shell Material

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
X
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Speedway Motors 1320 SA20 Deluxe Top Air Helmet Kit
Zoomed In Image
Part # 9162014
$534.99
$552.37
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This top air helmet kit includes everything you need to get your car outfitted with a fresh air system
  • The Impact 1320 side air helmet is Snell SA2015 certified which meets many racing rule requirements
  • Tru-Air helmet pumper delivers clean filtered air to the driver to keep cool on hot days
  • Two speed motor lets the driver choose between low and high speed air supply
  • Double throw toggle switch is included to operate both low and high speeds

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Item 1 of 1
Impact Racing SA2020 1320 Side Air Helmet
Impact Racing SA2020 1320 Side Air Helmet
Quantity: 1
Next
Add to Cart

Details

Helmet Type:
Full Face
Safety Rating:
Snell SA2015
Helmet Shell Material:
Fiberglass
Restraint Compatible:
Yes
Age Group:
Adult
Fresh Air Equipped:
Yes
Shield Included:
Yes
Tear Off Style:
F
MFG. Part #:
9162014
Sold in Quantity:
Kit

Info

Helmet

Do you like the value-packed options and pricing of our 1320 helmet but need something with a fresh air port? Impact listened to driver feedback and we are proud to announce the addition of a budget-friendly side air helmet to our line-up! Featuring a factory-installed air port, the Impact 1320 Side Air provides continuous fresh air channeled through the chin bar and providing cooling comfort directed onto the face. Manufactured from our exclusive “Intelligent Gray Matter” (a variable-density, single-piece inner liner) and upholstered in fire retardant soft-knit Nomex®, the 1320 offers many of the features and benefits that have made our helmets a “must have” safety item for racers in all forms of motorsports. The 1320 SA is a custom handcrafted fiberglass shell manufactured to Impact’s exacting standards and providing racers with an affordable Made in the USA helmet without compromising safety or quality. Featuring our exclusive wide eye port, the Impact 1320 SA also includes removable cheek pads. Optionally available cheek pads are available in a variety of thicknesses and configurations to provide a custom fit. A fire retardant Kevlar® chin strap with dual D-ring closure and our 1/8” polycarbonate shield with three-position detent finish off this value-packed helmet.

  • Made in the USA
  • SNELL SA2020 CERTIFIED
  • Shell construction featuring proprietary American space-age materials
  • Gray Matter fire-retardant covered liner made of Impact's "intelligent" single piece variable-density core
  • Side Air Inlet to keep your helmet fee and clear
  • Interchangeable cheekpads for a perfect fit
  • Fire-retardant Kevlar® chinstrap with locking dual D-ring design
  • .125" Clear Shield comes standard with 3 position detent
  • Colors: Flat Black, Silver

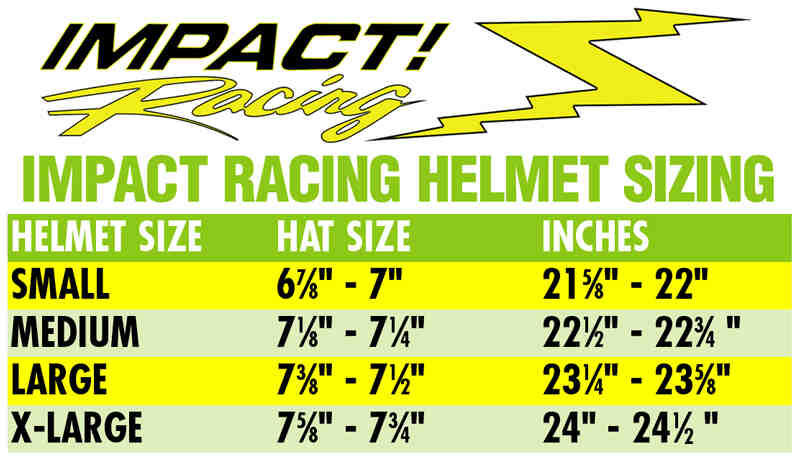

  • Sizes: XS - XL

Air Pump:

For use with fresh air equipped helmets. Keeps dust and dirt out, provides cooler air inside the helmet, and prevents shield from fogging. Includes remote mount fan and filter assembly with 4' hose. 12 volt.

  • 9.75" overall height
  • 7.00" overall width
  • 12 volt
  • 49.50" tube length

Toggle Switch:

  • Switch Type:  Toggle Switch
  • Circuitry:  SPDT
  • Electrical Rating:  25A at 12V DC
  • Contacts:  Silver
  • Housing:  Plastic with plated steel cap
  • Up Position:  On
  • Center Position:  Off
  • Down Position:  On
  • Terminals:  3 screw
  • Handle Material:  Nickel-plated brass
  • Handle Length:  11/16"
  • Mounting Hardware:  Nickel plated brass face and hex nut
  • Mounting Stem Material:  Nickel plated brass
  • Mounting Stem:  15/32" -32 thread, 15/32" long
  • Mounting Hole:  15/32" panel hole
  • Panel Thickness:  Up to 1/4" thick

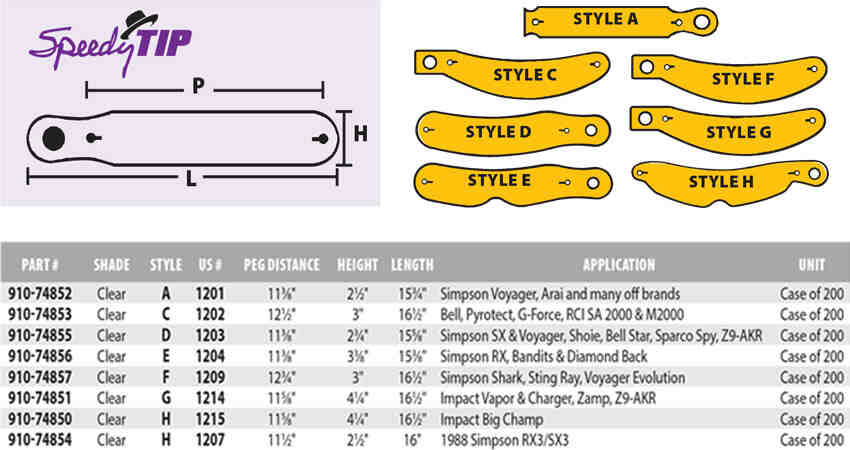

Charts

910-74802 Instructions (PDF)




Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Tru-Air Pumper Racing Helmet Air Pump Blower Breather
    Qty x 1
  • Double Throw Toggle Switch
    Qty x 1
  • Impact Racing SA2020 1320 Side Air Helmet
    Qty x 1
