Add to Cart
$949.99
Speedway Midget Axle Assembly for Stealth/TCR Chassis
Speedway Midget Axle Assembly for Stealth/TCR Chassis

Speedway Midget Axle Assembly for Stealth/TCR Chassis

Straight Axle Front Suspension Type, Stock Height Suspension Height Adjustment

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Speedway Midget Axle Assembly for Stealth/TCR Chassis
Speedway Midget Axle Assembly for Stealth/TCR Chassis
Speedway Midget Axle Assembly for Stealth/TCR Chassis
X
Speedway Midget Axle Assembly for Stealth/TCR Chassis
Zoomed In Image
Part # 95035100
$949.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
Stock Height
Control Arm Style:
Not Included
Shock Type:
Not Included
Spring Type:
Not Included
MFG. Part #:
95035100

Info

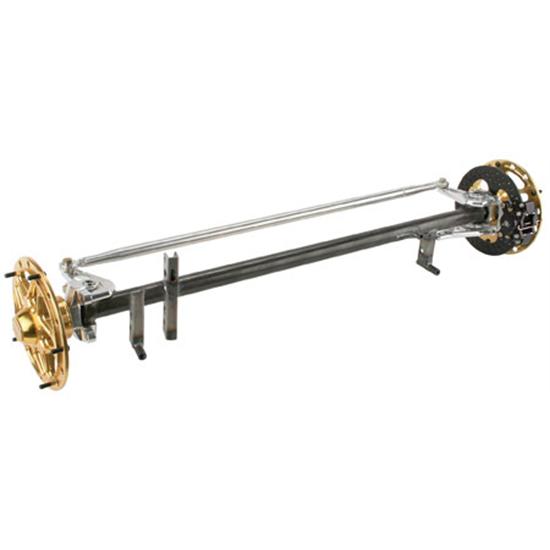

You get everything shown, but you do the assembly. Speedway's 44" 4130 front axle, steel king pins, aluminum spindles with seel snouts, aluminum steering arms, Winters direct mount hubs, LF brake bracket, LF aluminum brake rotor, rotor bolts, LF two piston caliper, brake pads, aluminum tie rod, aluminum heims, aluminum jam nuts, grade 8 bolt and nut kit.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • M&W MFA175ST Speedway Stealth/TCR 44 Inch Midget Axle
    Qty x 1
  • Winters Performance 4125 9 Degree Aluminum Midget Spindle
    Qty x 2
  • Ultra Lite Midget Hollow King Pin
    Qty x 2
  • Speedway Ford Roller Torsional-Thrust Bearing Kit
    Qty x 2
  • M&W MSA3 Billet Aluminum Right Hand Steering Arm
    Qty x 2
  • Midget LH Lower Steering Arm
    Qty x 1
  • 5/8 Lightweight Swedged Aluminum Drag Link/Tie Rod Tube 40 Inch
    Qty x 1
  • Aluminum X-Series Heim Joint Rod Ends, 5/8-18 LH Male, 1/2 Inch Hole
    Qty x 1
  • Aluminum X-Series Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole
    Qty x 1
  • Heavy Duty Aluminum Jam Nut, 5/8-18 LH
    Qty x 1
  • Heavy Duty Aluminum Jam Nut, 5/8-18 RH
    Qty x 1
  • Steel Flathead Bolt, 1/2-20 x 3/4 Inch
    Qty x 3
  • Winters Performance 3980 D-Mount Aluminum Front Hubs, Gold
    Qty x 1
  • Speedway Front Aluminum Drilled Brake Rotor - 10.125 x .312 Inch
    Qty x 1
  • Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
    Qty x 1
  • Speedway 156 Hard Brake Pad
    Qty x 2
  • M&W MBCB-3 Left Front Caliper Bracket
    Qty x 1
  • Midget Sprint Front Axle Bolt Kit
    Qty x 1
