Speedway Front End Toe and Camber Alignment Kit with Turn Plates
23.50" Overall Length
- Several of the quickest and simplest ways to align your front end in one easy kit
- Aluminum turn plates clearly marked at 0, 10, 15, and 20 degrees. The thrust bearing between plates allows for smooth and precise alignment
- Allows you to make accurate front-end caster & camber adjustments quickly, easily, and accurately - caster readout from +12º to -4º in 1/2º increments
- If you're looking for precision chassis setup each time, this caster / camber gauge is second to none - reads camber from +6° to -6° accurate to 1/4°
- Toe-in plates feature formed design that is rigid for accuracy and stays put against the tire
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Get your wheels lined up correctly with this alignment kit from Speedway Motors. We've combined several of the quickest and simplest ways to align your front end into one easy kit so you can get your car dialed-in to dominate!

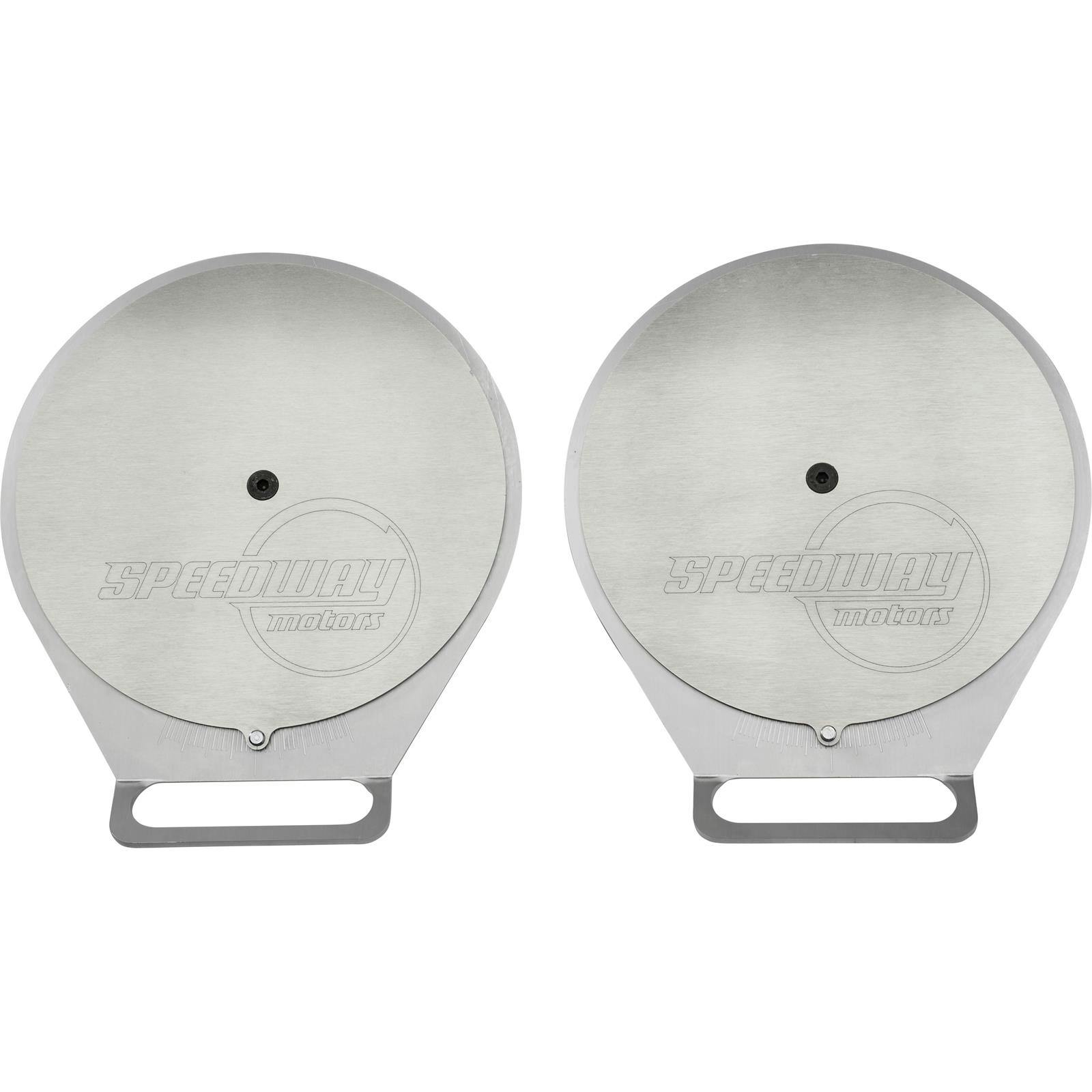

Alignment Turn Plates, 0-20 Degrees
At only 5/16 in. thick, you don't need a jack or lift to roll onto these turn plates. They're made from aluminum and are clearly marked at 0, 10, 15, and 20 degrees, with one-degree increments in between.
The Speedway alignment turn plates have a smooth handle cut into them for portability, and the bottoms feature a thrust bearing between the plates, so turning the wheels for precise alignment is smooth and accurate.
Longacre® 52-78260 Caster / Camber Gauge w/ Magnetic Adapter
- Reads camber from +6 deg. to -6 deg. accurate to 1/4 deg.
- Caster readout from +12 deg. to -4 deg. in 1/2 deg. increments
- All vials are individually checked for accuracy and assembled on a precision fixture
- All critical surfaces are CNC machined for accuracy
- New stronger magnetic adapter - dead flat surface for accuracy, won't chip or flake
- Comes with silver carrying case
Longacre® Racing 79501 Aluminum Toe-In Plates w/ Magnets
Here's the quickest and simplest way to measure toe-in. Rest one of these plates against the tire on each side and use a tape measure. Longacre® toe plate comes with two tape measures.
- Quickest and simplest way to measure toe-in
- Rest one of these plates against the tire on each side and measure toe directly using the 2 tapes (included)
- Formed design is rigid for accuracy and stays put against the tire
- Dimensions: 23-1/2" x 9"
- Turn wheels to straight ahead: Should be done on level ground. Set caster & camber first.
- Lean plates up against wheels: Folded lip goes to the outside. Be sure the entire plate is up against the wheel.
- Measure front width, then rear: Use the slots for the tape measure. Subtract one from the other for toe. Larger front width means toe-out.
475-7950 Instructions (PDF)
Toe Simplified (Link)
Set Toe Properly (Link)
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
What's In The Kit
Speedway Alignment Turn Plates, 0-20 DegreesPart # 3003600Qty x 1
Longacre® 52-78260 Caster / Camber Gauge w/ Magnetic AdapterPart # 47578260Qty x 1
Longacre® Racing 79501 Aluminum Toe-In Plates w/ MagnetsPart # 4757950Qty x 1
