1968-72 GM A-Body Ford 9 Inch Bolt-In Rear End Swap Kit, Bare

• Housing length: 55-3/4 inches (from flange-to-flange).
• Total wheel-to-wheel mounting surface width is 60-3/4 inches (from hub-to-hub).
• Direct replacement Ford 9-inch housing rear end for your 64-67 A-Body
• Pre-welded mounting pads retain stock control arm mounting locations
• Uses factory shock mounting location to retain stock shock length
• 9-inch housing features stock 68-72 Chevelle rear end width flange to flange for perfect fit
• Works with any Ford 9-inch housing center section (sold separately)
• Big Ford new style “Torino” axle flange accepts drum or disc brakes
• New 31 spline axles come with bearings, lock rings, axle seals, and wheel studs installed
• Axles feature 5x4.5 and 5x4.75 GM car dual bolt patterns with 1/2-20 threaded studs

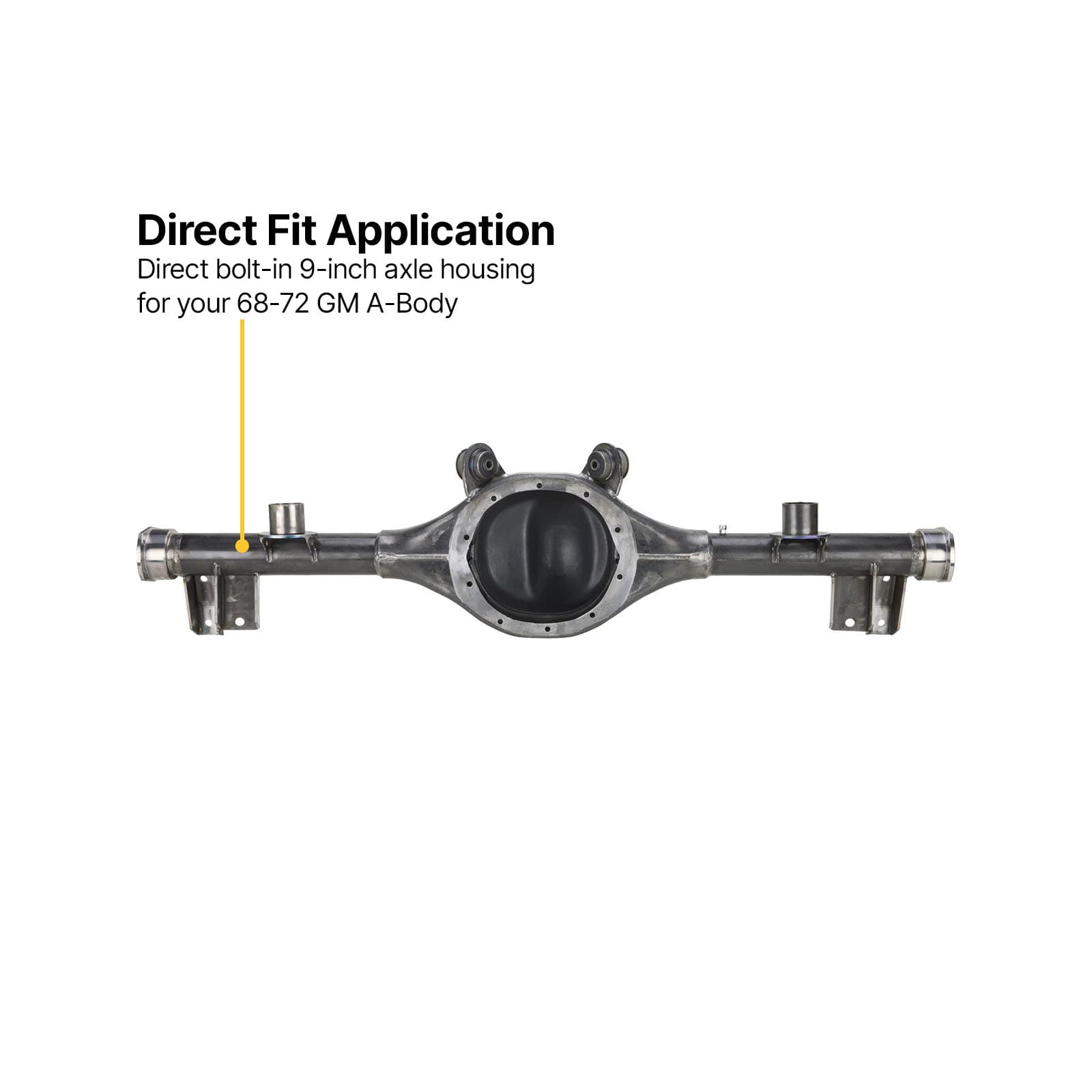

A Direct-Fit Ford 9-inch Rear End Housing for Your Second Gen A-Body

There is certainly no denying the popularity of Ford’s venerable 9-inch rear axle when it comes to high performance street and racing applications. It is probably a safe bet there are more non-Ford vehicles on the road (and track) with a Ford 9-inch rear end under them than Ford ever shipped off their assembly lines! That is saying a lot right there. From the stronger housing design to the huge aftermarket support in axles, differentials, ring and pinion gears, and more, the Ford 9-inch rear end is the performance axle housing to use, without a doubt.

For those building up a 1968-72 GM A-Body car (Chevelle, GTO, Malibu, Tempest, Cutlass, 442, etc.), Speedway Motors offers a bolt-in 9-inch Ford rear end housing for your build that is a direct swap for stock second gen A-Body rear ends. This A-Body rear end housing is made from premium steel and is fully welded, including brand new “Torino” big Ford axle housing. The housing maintains the 2nd gen Chevelle rear end width and retains the stock shock mount locations as well. The axle’s control arm mounting brackets are welded in their stock mounting location for a bolt in solution. This allows you to retain stock ride height characteristics or you can lower the rear of your A-Body via lowering springs, or other options.

Includes Fully Assembled Axles Ready for Your Differential and Center Section

Our 2nd gen Chevelle 9-inch rear end housing package includes strong 31-spline performance axles with bearings and bearing lock rings already pressed into place on the axles. The axles feature dual Chevy/Ford bolt pattern of 5 on 4-3/4 and of 5 on 4-1/2 with 1/2-20 press-in threaded studs preinstalled in the 5 on 4-3/4 GM pattern. Finally, we include the axle retainer brackets and the correct 9-inch T-bolts and nuts to secure the axles and your drum or disc brake kit of choice.

Additional hardware includes 10 press-in studs with nylon locking nuts for the main A-Body 9-inch housing to center section assembly, and a screw in axle vent fitting. All your new Ford 9-inch housing needs for completion is a complete center section with your choice of differential and gearing and drum or disc brake package. Our complete 9-inch 3rd members are the perfect choice to finish your first gen A-body rear end build. Replace your tired 1968-1972 Chevelle rear end with our Ford 9-inch rear end in your first gen Chevelle, Malibu, Tempest, or GTO while maintaining the stock rear end width and upgrade to the strength and vast options the Ford 9-inch offers.
