Speedway Disc Brake Residual Valves, 2 PSI, Purple, Pair

Ever had problems with a spongy pedal or slow, unresponsive brakes? If so, you may need a residual pressure valve installed in your brake line. A residual valve acts like a one-way or check valve to maintain brake system pressure to eliminate the problems of a spongy pedal. This 2 PSI residual valve is installed inline between the master cylinder and disc brake calipers to keep 2 PSI of residual pressure at the caliper after the brake pedal is released. This ensures that you will have a high, firm pedal next time you press the brake pedal.

If your master cylinder is located below the floorboard, installing a 2 PSI residual valve is highly recommended. If your master cylinder is mounted on the firewall, a residual valve is generally not needed because gravity will provide a natural residual pressure within the brake line.

Our residual pressure valve features a distinctive purple anodized finish with 1/8" NPT port at each end. Use 2 PSI residual valves for disc brake applications only.  Inverted flare or AN threaded adapter fittings to the 1/8" NPT female thread will be required and are noted below and available as required.

Kit includes two Residual Valves for systems that are front and rear disc brakes.

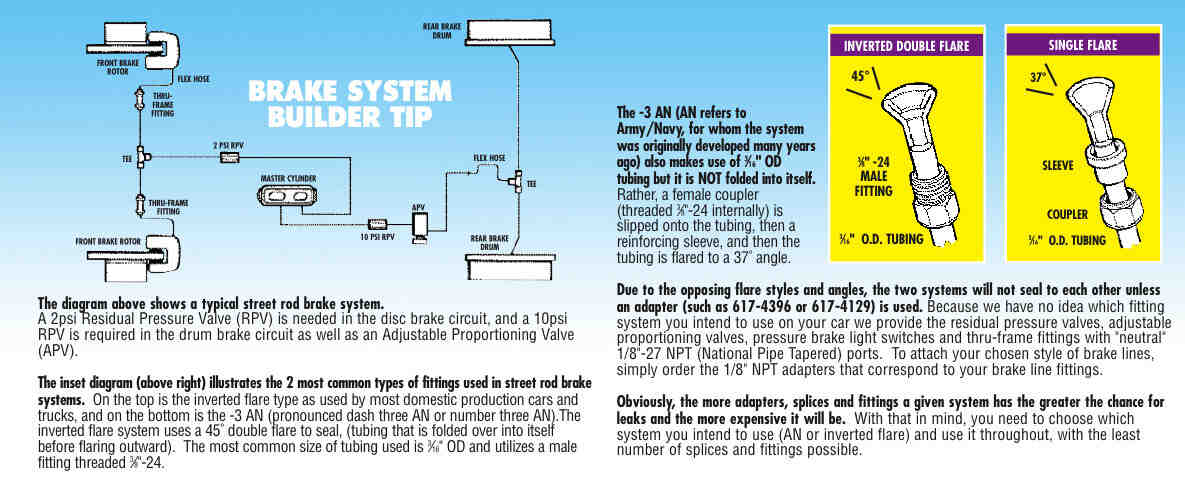

Brake System Builder's Tip (JPG)
