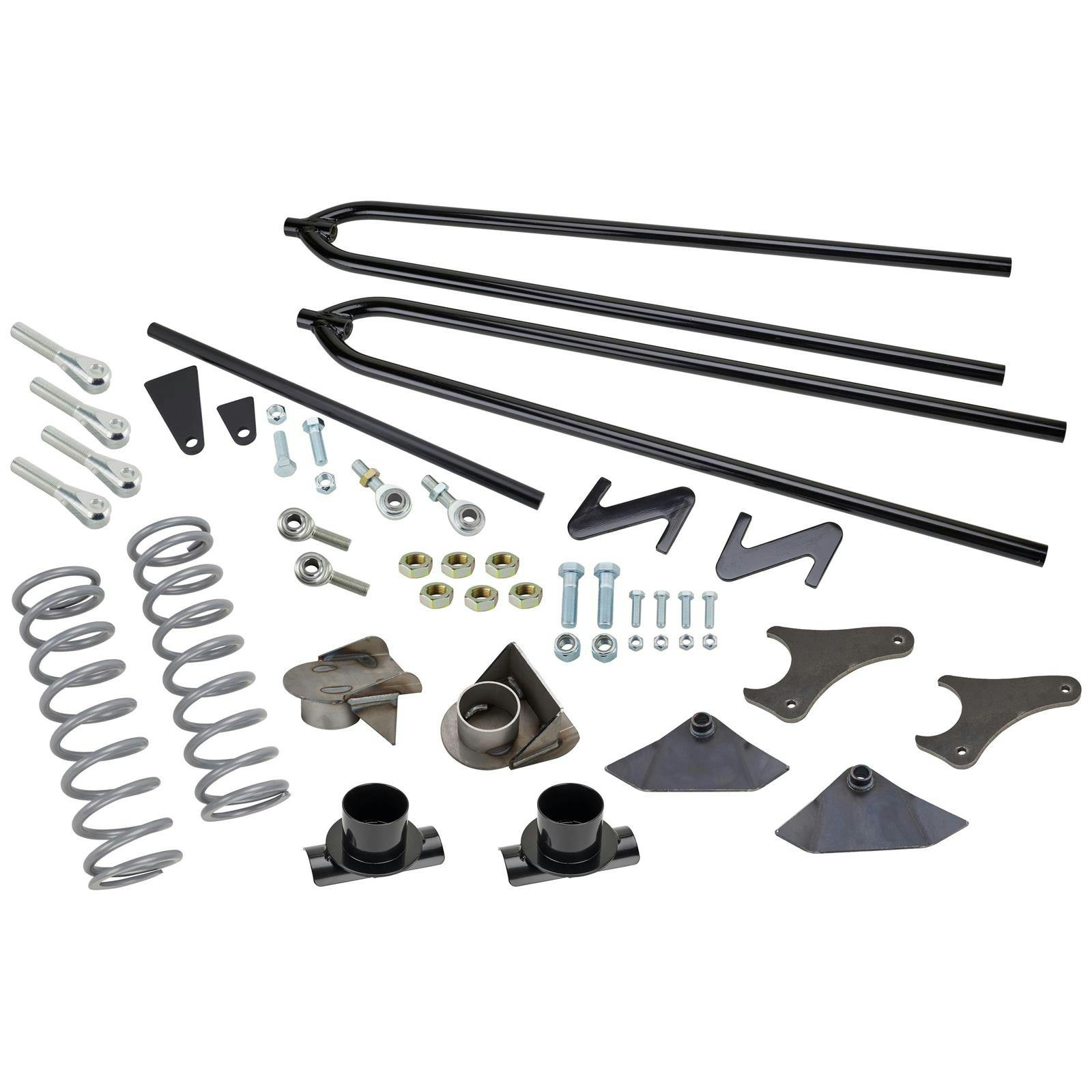

Speedway Deluxe Coil Spring Hairpin Radius Rod Rear Suspension Kit
Speedway Deluxe Coil Spring Hairpin Radius Rod Rear Suspension Kit
Universal Fit, Solid Axle Rear Suspension Type, Radius Rod Trailing Arm Style, Steel
On Backorder
Ships FREE
Select Vehicle
Speedway Deluxe Coil Spring Hairpin Radius Rod Rear Suspension Kit
X
We estimate this item will ship on or before October 9th.
Part # 91649021
$329.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Our Deluxe Coil Spring kit includes a weld-on 25.5" Panhard bar, 2 coil springs (175 lb. rate, 14" tall, 4.5" O.D.)
- As well as upper and lower spring mounts, two 32" steel radius rods with mounting brackets, and all hardware
- Weld to your 3" axle tubes
- Silver painted coil spring
- Spring is 4.5" O.D. 3.5" I.D. and 14" free height
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Rear Suspension Type:
Solid Axle
Trailing Arm Style:
Radius Rod
Suspension Kit Type:
Conversion
Suspension Height Adjustment:
Stock Height
Spring Type:
Coil Spring
Spring Rate:
175 lbs.
Shocks Included:
No
Bolt-On:
No
Axle Housing Included:
No
Material Type:
Steel
Finish:
Natural
MFG. Part #:
91649021
Sold in Quantity:
Kit
Info
Our Deluxe Coil Spring kit includes a weld-on 25.5" Panhard bar, 2 coil springs (175 lb. rate, 14" tall, 4.5" O.D.), upper and lower spring mounts, two 32" steel radius rods with mounting brackets, and all hardware.
Weld to your 3" axle tubes.
Panhard Bar Mount Guide (GIF)
Charts
916-49021 Instructions (PDF)
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
Front Frame Leaf Spring Perch Kit, Standard Ride Height$34.99 -
Spring-Behind 4 Inch Drop Tube Axle Front End for Ford Spindles, Plain$469.99
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Standard Steel Heim Joint Rod Ends, 5/8-18 RH MalePart # 1750106Qty x 2
-
Steel Jam Nut, 5/8-18 RHPart # 1750246Qty x 6
-
Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc PlatedPart # 91002006Qty x 4
-
Universal 14 Inch Rear Coil SpringsPart # 91043101Qty x 1
-
Radius Rod/Four-Bar Frame Mounting Brackets, 5/8 Hole, 4-3/8 InchPart # 91635051Qty x 1
-
Speedway Lower Rear Axle Radius Rod Mount Bracket, 5-3/4 InchPart # 91645009Qty x 2
-
Upper Weld-On Coil Spring Mounts (PR)Part # 91645100Qty x 1
-
Classic 32 Inch Rear Radius Rods, Plain SteelPart # 91645110Qty x 1
-
Speedway Universal Weld-On Rear Panhard Bar Track Rod KitPart # 91649022Qty x 1
-
Nut/Bolt KitPart # 91649021-1Qty x 1
-
Speedway Universal Lower Coil Spring Mount Perch for 3 Inch Axle TubePart # 91720243Qty x 2
