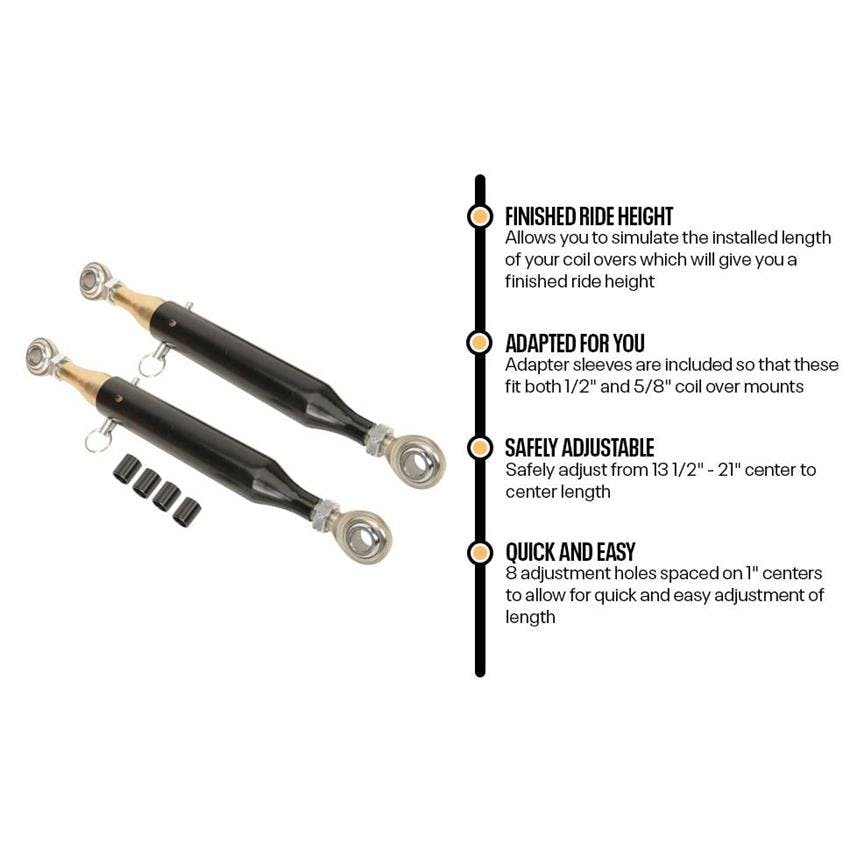

Speedway Coilover Shock Ride Height Mockup Tool
- Allows you to simulate the installed length of your coil overs which will give you a finished ride height
- For fabrication purposes only not to replace shocks
- Adapter sleeves are included so that these fit both 1/2" and 5/8" coil over mounts
$100.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
.63" Inside Diameter, 13.50" Compressed Length, Steel
- Allows you to simulate the installed length of your coil overs which will give you a finished ride height
- For fabrication purposes only not to replace shocks
- Adapter sleeves are included so that these fit both 1/2" and 5/8" coil over mounts
- Safely adjust from 13 1/2" - 21" center to center length
- 8 adjustment holes spaced on 1" centers to allow for quick and easy adjustment of length
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91636037 Details
Speedway Motors 91636037 Details
- Allows simulation of vehicle ride height for fabrication purposes
- Include 5/8" rod ends, jam nuts, quick pin, and reducer for rod ends from 5/8" to 1/2"
Builders Tip: If you cut a short piece of roll bar padding shown below and install it around the coil over mock up assembly, the o/d of the roll bar padding will replicate the o/d of the coil over spring to be used. This will allow the builder to visualize and consider where and how it needs to be mounted for clearances as if the coil over springs were in place.
Speedway Motors 91636037 Specifications
Speedway Motors 91636037 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91636037 |
| Brand | Speedway Motors |
| GENERAL | |
| Inside Diameter | .63" |
| Compressed Length | 13.50" |
| Extended Length | 21.00" |
| Material Type | Steel |
| Finish | Painted |
| Sold in Quantity | Pair |
Ratings & Reviews
4.8
31 Reviews
Customers highly recommend the product for its quality, practicality, and ease of use in setting and adjusting ride height. It is specially prized for chassis building or setup, replacing the struggles of fabricating spacers or blocks. The tool fits a wide range of applications and is viewed as a must-have for doing the job correctly. Its strong, well-built design withstands multiple uses and even the rigors of professional shops. A minor issue is the potential need to chase threads or modify lengths. The product is described as self-explanatory, user-friendly, and a great value-for-money, effectively aiding in various car builds.
Ratings & Reviews
4.8
31 Reviews
Customers highly recommend the product for its quality, practicality, and ease of use in setting and adjusting ride height. It is specially prized for chassis building or setup, replacing the struggles of fabricating spacers or blocks. The tool fits a wide range of applications and is viewed as a must-have for doing the job correctly. Its strong, well-built design withstands multiple uses and even the rigors of professional shops. A minor issue is the potential need to chase threads or modify lengths. The product is described as self-explanatory, user-friendly, and a great value-for-money, effectively aiding in various car builds.
4.8
31 reviews
5
26
4
4
3
0
2
1
1
0
Most Liked Positive Review
5.0
this is a great alignment tool.
i saw this in your in the latest catalog i received. it was just thing i needed right now because i'm trying to set-up my ride hight on the "A" street rod i'm building until ican purchase the coilover setup i want. also thanks for all the tech help you've given me thanks.
Most Liked Negative Review
2.0
Still making it work
I received these and tried to fit the Part # 91636010 Coil-Over Shock Mount Support from Speedway. The bolt won't pass through the bearing on the end of the mock up tool. Worse yet, when I gave the bolt a tap or two to set it in, the head of the bolt split where the allen head socket would go. So far I haven't had a chance to get back out to the shop with a vernier to check if the bolt or the bearing is the problem, but sadly, no mock-up has taken place yet. Nicely finished product, and the bearings appear to be fairly good quality for a mock up tool. May be able to recommend product after I sort if the bolt is the issue.
Filter by Ratings
Great tool to have for suspension set up
5.0
a year ago
Marty
Cornelius NC
Verified
I am so glad that I purchased this tool. It let me set my ride height rigid so that I could make 4 link adjustments with no issues. Would highly recommend for tgat reason.
Would Recommend
Great Tool
4.0
2 years ago
Q
Salt Lake City
Nice for making adjustments as I continue working.
Would Recommend
This product worked perfect for me
4.0
2 years ago
Mike
Moultonboro NH
Verified
used it to mock up and test ride height and travel limits
Would Recommend
A great tool
5.0
2 years ago
Let's go bran…… you know who
Conservative in ma
Verified
This is a superior tool for setting up your ride height on a ladder bar or four link suspension recommended highly it makes things a breeze for set up and works so you can move the car around the shop if necessary
Would Recommend
Perfect tool for setting ride height
5.0
3 years ago
TNDoug
East Tennessee
Verified
I used this to set the ride height on a custom '27 "T". It worked great for the front and rear.
Would Recommend
Would buy again
4.0
4 years ago
Luke
Center Point Iowa
Verified
Will work great for ride heighth adjusting. I needed to chase threads on one of them-minor issue
Would Recommend
They are nice as I can keep adjusting my ride Height as I bu
5.0
4 years ago
Mike
Tide water or
Verified
They are working great as I build
Would Recommend
i would buy partgain from speedway
5.0
6 years ago
speedman
lena il.
Verified
part fit great
Would Recommend
Slick product
5.0
6 years ago
Robi
Victoria BC Canada
Verified
Works great. Depending on length required you may have to shorten them stightly or lengthen as required. But easy to mod...
Would Recommend
Heavy duty, easy to use, easy storage
5.0
6 years ago
MAJDAD
Phoenix, AZ
Verified
Self explanatory use. Best for setting up rear coil-over. Almost too big for front end set up on street rods.
Would Recommend
