Speedway Chevy LS Engine Camshaft Cam Bearing Driver
Speedway Chevy LS Engine Camshaft Cam Bearing Driver
Speedway Motors

|

#91381106

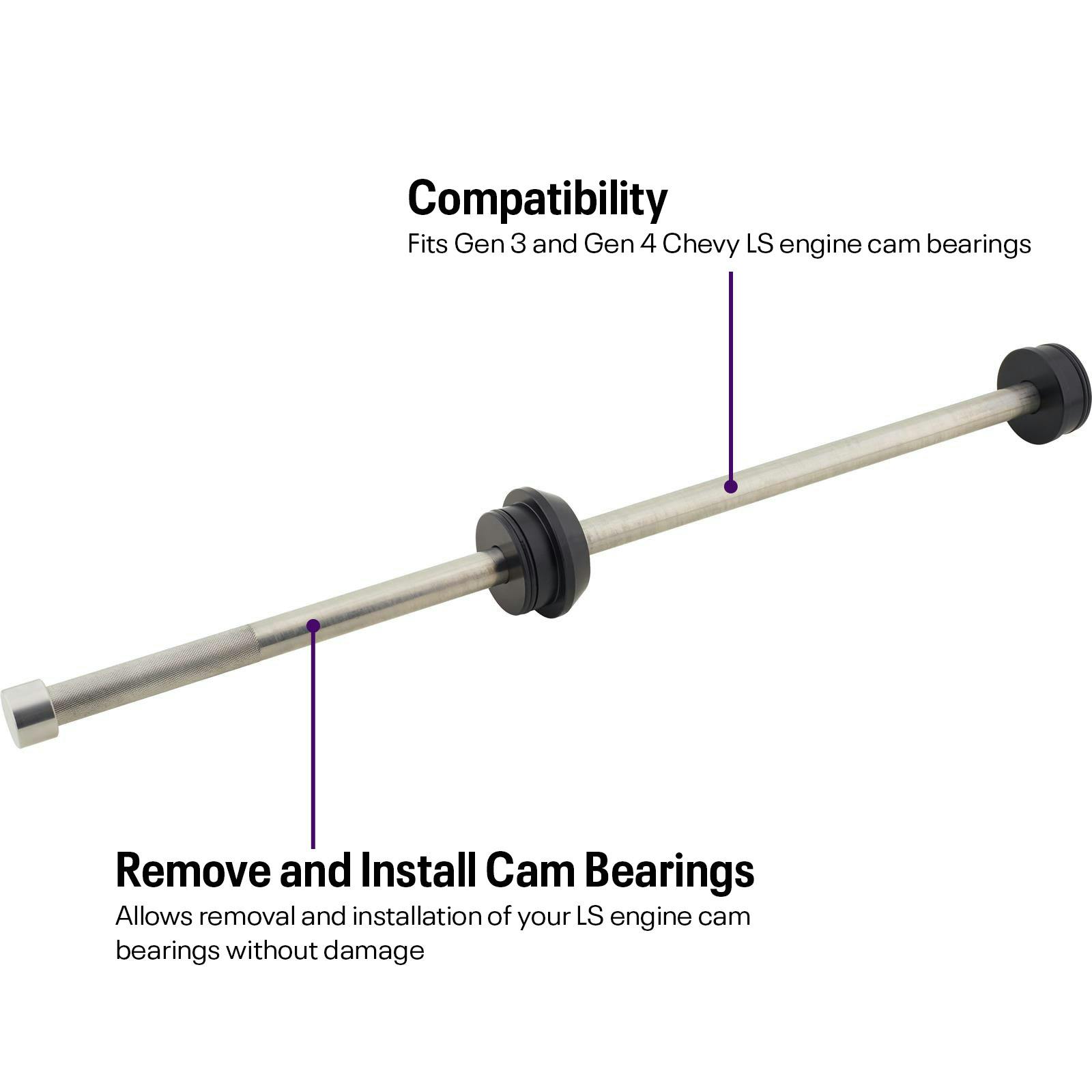

Speedway Chevy LS Engine Camshaft Cam Bearing Driver

  • Allows removal and installation of your LS engine cam bearings without damage
  • Fits Gen 3 and Gen 4 Chevy LS engine cam bearings
  • Made from stainless steel and anodized aluminum for long service life
See More

$95.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Installs Bearings, Removes Bearings

  • Allows removal and installation of your LS engine cam bearings without damage
  • Fits Gen 3 and Gen 4 Chevy LS engine cam bearings
  • Made from stainless steel and anodized aluminum for long service life
  • Includes two different sized O-rings to retain bearings on drive spool
  • Always remove cam bearings when boiling or cleaning an engine block
See more details

Key Specs

MFG. Part #91381106
BrandSpeedway Motors
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91381106 Details

  • LS specific cam bearing tool makes removal and installation easy
  • Made from high-quality stainless steel and aluminum materials
  • Large strike face and knurled handle ensures proper support during use
  • Included O-rings provide light tension to hold bearings in place on the tool
  • Works on all Gen 3 and Gen 4 LS aluminum or iron engine blocks

Remove And Install LS Cam Bearings Quickly and Easily

High mileage LS engines requiring a full rebuild means that the camshaft bearings must be replaced. To properly clean an LS block the cam bearings and all removable gallery plugs must be stripped from the block. The best way to remove your cam bearings is with the proper cam bearing tool. Using our Chevy LS cam bearing tool makes it easy to remove and replace your LS cam bearings without damage. Once your block has been cleaned you can use the same LS cam bearing tool to install your new LS cam bearings in the proper order. The tool’s drive arbor is made from high-quality stainless steel for long service life and the knurled handle on the drive arbor provides for enhanced grip when driving bearings in or out. We added a large diameter stainless steel strike face as well for your hammer. The tapered alignment spool and bearing drive spool are both made from anodized aluminum to prevent block damage, cradle your new LS cam bearings properly, and most importantly, last. This is a must have tool for all engine builders, mechanics, and do-it-yourselfers rebuilding Chevy LS engines!

Due to the differences in small block Chevy vs LS cam bearing dimensions we have made this LS cam bearing tool specifically for the Chevy LS engine cam bearing dimensions. We include with the LS cam bearing tool two O-rings that retain the LS cam bearings on the drive spool during the installation and removal of each of the five cam bearings in the LS engine. The anodized aluminum drive spool and alignment spool are CNC machined to provide a precise fit for proper alignment when doing your LS cam bearing install. We make the removal and replacement of your Chevy LS engine cam bearings quick and easy.

Speedway Motors 91381106 Specifications

KEY SPECS
MFG. Part #91381106
BrandSpeedway Motors
GENERAL
Sold in QuantityEach
Notes(2) O-Rings: 0.734" ID x 1.012" OD & 1.859" ID x 2.137" OD included
Case IncludedNo
Installs BearingsYes
Removes BearingsYes

Ratings & Reviews

5

10 Reviews

Overall Assessment

Customers highlighted the practicality and superior quality of our product. They commend it as a tool that fits perfectly and has made cam bearing installation easier than ever before. Notably, our product has been praised for avoiding damage to new bearings, eliminating the need for additional modifying works such as filing or sanding. It is recommended for frequent LS cam bearing jobs due to its functionality and reliability, setting it apart from universal tools in the market.

Write A Review

5

10 reviews

5

10

4

0

3

0

2

0

1

0

Filter by Ratings

Good product

5.0

4 months ago

Chris

Michigan

Verified

Worked as expected

Would Recommend

This is a MUST if you rebuild LS engines

5.0

8 months ago

TS12

Sioux Falls, SD

Verified

I have the universal cam bearing tool that has worked ok for years but I will throw it in the trash after using this tool. I wish I would've bought it years ago. The fit and install work flawlessly and the bar is the perfect length. If you're doing your own LS cam bearings, 10/10 would recommend even if you only need to use it once. Worth every penny.

Would Recommend

Took Works!

5.0

10 months ago

Big B

East Layton, Utah

Verified

Highly recommend this tool for cam bearings removal and install. Worked as it is designed to with ease.

Would Recommend

110% Worth it!!

5.0

12 months ago

Mo

Lincoln, Ne

Verified

Got this in place for an amazon one and was a little hesitant cause it was a bit pricey but wow did it do its job and do it dang good!

Would Recommend

Excellent tool for LS cam bearings

5.0

a year ago

Steve

Minerva, OH

Verified

The o-rings on the tool were great to help hold the bearing in place, couldn't have been easier.

Would Recommend

Yes

5.0

2 years ago

Cobb

Fort Smith Arkansas

Verified

Works great

Would Recommend

Worked great

5.0

2 years ago

Smile

Tn

Verified

Worked great

Would Recommend

This camshaft bearing install tool worked absolutely great!

5.0

2 years ago

Jeff

Brillion, WI

Verified

It has o-rings to keep it centered as well as to hold the bearings, and drive the new bearings in straight. If you drive one out and the new one in one at a time, it is hard to make a mistake with this. Very well made, and price was very reasonable as well.

Would Recommend

Yes this product was very helpful

5.0

2 years ago

Mudin mudout

Tooele Utah

Verified

I ordered one but it was to small for My cam bearings. So I bought this one and it was perfect but I wish I had more engines to use. Then on.

Would Recommend

Made my cam bearings the easiest I've ever installed.

5.0

3 years ago

Woods Garage

Imperial,Mo

Verified

Bought this tool because I didn't want to use my "universal" cam bearing install tool and mess up my new bearings from banging them against the universal spreader and have to file or sand down the bearings for the cam to go in and spin freely. Bearings went in without a hitch and cam spun excellent with no filing or sanding needed. If you do a lot of LS cam bearings this is a tool I would recommend.

Would Recommend

Showing 10 of 10 reviews
