Speedway Aluminum Extruded Leaf Spring Lowering Block
Speedway Aluminum Extruded Leaf Spring Lowering Block
Universal Fit
In Stock
Can Ship FREE
Select Vehicle
Speedway Aluminum Extruded Leaf Spring Lowering Block
X
Part # 91643
Starting from
$5.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Lightweight extruded aluminum lowering blocks are stronger than billet and can withstand even the harshest environments
- Universal design can be used in a variety of applications where a 2.5" wide x 5" long block is sufficient
- Use to lower the ride height on leaf spring suspensions where the axle sits on top of the spring
- Also can be used to raise ride height on leaf spring suspensions with the axle is below the spring
- Increase or decrease suspension height on most leaf spring applications
Details
MFG. Part #:
Select Thickness to see
Info

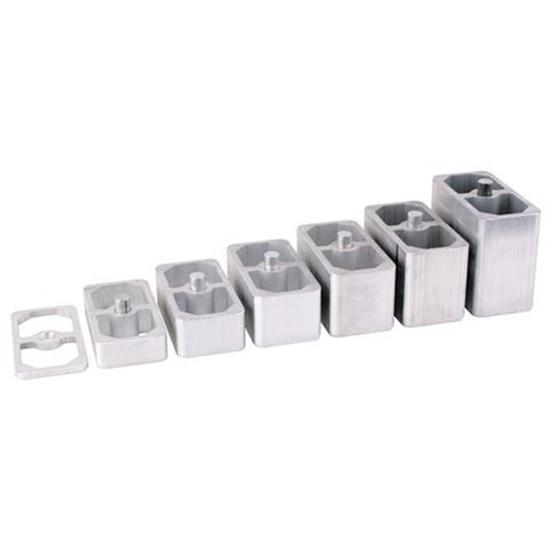

Our lightweight extruded aluminum lowering blocks are stronger than billet! Available in several heights, all 2-1/2" wide, 5" long. The centering pin is 9/16". These blocks will increase or decrease suspension height on most leaf spring applications and can be installed below the leaf spring to raise the vehicle or on top of the leaf spring to lower the vehicle. These lowering blocks allow you to lower your leaf spring vehicle by up to 4 inches. Heavy Duty U-bolts and hardware are available separately.
- Lightweight aluminum lowering blocks are stronger than billet
- 2-1/2" wide
- 5" long
- 9/16" centering pin
- Increase or decrease suspension height on most leaf spring applications
- Allows you to lower your leaf spring vehicle by up to 4 inches
- U-bolts and hardware available separately
Lowering blocks are sold individually (each).
THICKNESS options explained:

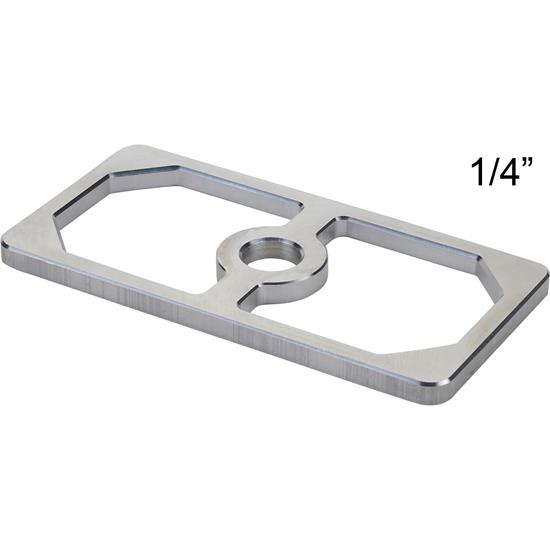

- 025 = 1/4" thick
- 050 = 1/2" thick
- 075 = 3/4" thick
- 100 = 1" thick
- 150 = 1.5" thick
- 200 = 2" thick
- 250 = 2.5" thick
- 300 = 3" thick
- 350 = 3.5" thick
- 400 = 4" thick
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
