Product Summary

Modified, Mono Tube Shock Type, Smooth Shock Body Type

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Made to Order

    This custom item will ship when completed

    Quick and Easy Returns

    Return Policy

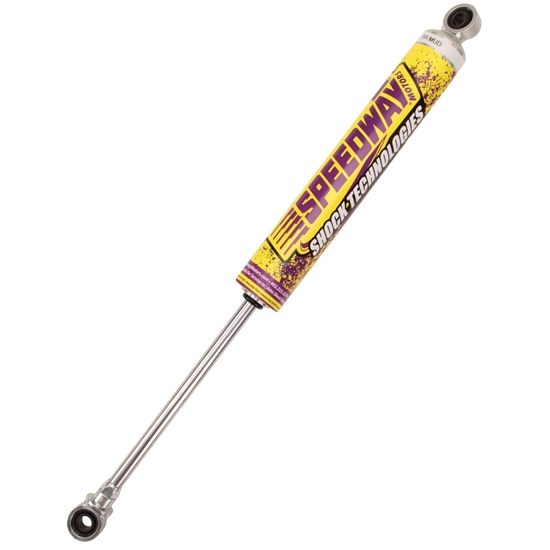

    Speedway Motors 91040701 Details

    Take the guess work out of selecting the right shocks for ever-changing track conditions. Speedway Motors shock department has worked with several teams to develop these winning A-Mod shock combinations. They have run thousands of laps testing and have won many features. These shocks are based on the Bilstein SZ Series shocks, which makes them a great choice for IMCA, NASCAR and WISSOTA Modifieds. Speedway has tested and hand-selected the combination of valving and pistons to promote ideal handling and improved feel for any track condition.

    Each shock is built and dynoed in-house. Each shock is individually labeled for each corner of the car with a 'Mud', 'Mid' or 'Slick' notation, making it easy to hit the right setup every time.

    A-Mod Right Front 'Mud' shock, 7" stroke.

    Speedway Motors 91040701 Specifications

    KEY SPECS
    MFG. Part #91040701
    BrandSpeedway Motors
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    PositionFront
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range20.00" to 20.99"
    Extended Length20"
    Compressed Length Range13.00" to 13.99"
    FinishZinc Plated
    Compressed Length13.14"
    GENERAL
    RebuildableYes
    Schrader ValveNo
    Coil-Over CompatibleYes
    External CanisterNo
    Inside Diameter46 mm
    Shock Eyelet Width0.625"
    Sold in QuantityEach

    Questions & Answers

    1 Question • 1 Answer

    What is the compression / rebound on this shock ?

    by Travis

    • 9 years ago

    1 answer
