Speedway 59-64 Impala Front & Rear Disc Brake Kit, D/S Rotors, Black

#91664018

Speedway 59-64 Impala Front & Rear Disc Brake Kit, D/S Rotors, Black

Name: Speedway 59-64 Impala Front & Rear Disc Brake Kit, D/S Rotors, Black
Brand: Speedway Motors
SKU: 91664018
Price: 1350.99 USD
Availability: LimitedAvailability

Write a Review

Ask a Question

Type:

Zinc Booster/Black/Drilled-Slotted

Chrome Booster/Black/Drilled-Slotted Zinc Booster/Red/Drilled-Slotted Chrome Booster/Red/Drilled-Slotted

$1,350.99

/kit

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front and Rear Position, 11 Inch Rotor Diameter

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	91664018
Position	Front and Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91664018 Details

Our all inclusive disc brake conversion kit makes it easy for the budget minded hot rod enthusiast to convert their drum brakes to disc brakes. The GM full size kits won't require you to swap out spindles, saving you time and money. Want power brakes? Add a power brake conversion and have full braking power. Booster conversion kits come in many finishes and sizes and can be configured to any kit.

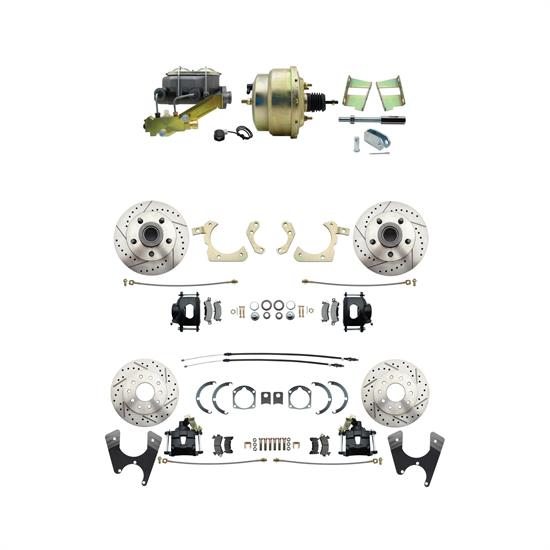

Full Size Chevy 1959-1964 Complete Stock Height Front & Rear Disc Brake Kit Includes

11" Drilled & Slotted Rotors
Large Single Bore GM Powder Coated Black Calipers w/ Pads
Caliper Brackets
Hoses with Banjo Bolts
Bearings
Seals
Dust Caps
Spindle Nuts
Spindle Washers
All Hardware

1959-1964 GM Full Size 8" Dual Zinc Booster Conversion Kit (Impala, Bel Air, Biscayne)

Includes:

1" Bore Dual Bail Cast Iron Master Cylinder
Brass Proportioning Valve Kit for Left Mount
8" Dual Zinc Booster w/ Firewall Brackets
Pedal Extension & Clevis

Charts

Installation Instructions (PDF)

General Booster Instructions (PDF)

Specs

The caliper piston pin needs to be aligned with the notch in the pad to avoid fitment issues.

Guides & Documents

Disc Brake Kits Installation Instructions (91664018)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (91664018)

Speedway Motors 91664018 Specifications

KEY SPECS
MFG. Part #	91664018
Brand	Speedway Motors
Position	Front and Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	One
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	Yes
Brake Booster Included	Yes
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Bolt Pattern	5 on 4.75"
Color	Black
Mounting Bracket Included	Yes
Application Type	Disc/Drum
Front Caliper Piston Quantity	1
Front Caliper Finish	Powder Coated

GENERAL
Rotor Thickness	1"
Front Caliper Material	Cast Iron
Front Caliper Piston	Single Large Piston
Brake Booster Diameter	8 Inch
Brake Booster Material	Steel
Brake Booster Type	Vacuum Diaphragm Dual
Brake Hose Material	Stainless Steel Braided
Master Cylinder Bail Type	Dual Bail
Master Cylinder Finish	Natural
Master Cylinder Material	Cast Iron
Proportioning Valve Location	Left Mount
Brake Booster Bracket Finish	Zinc
Brake Booster Finish	Zinc
Brake Pedal Rod Included	Yes
Front Pad Replacement	MKD52

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1959-1964 Chevy Bel Air

1959-1964 Chevy Biscayne

1959-1961 Chevy Brookwood

1959-1964 Chevy Impala
