Speedway 481808-BL Aluminum Tube Nut Couplers, -8 AN, 1/2", 2/Pk
- You need to flare the tube to 37* to match the AN fittings
- Not for use with 45* flared lines
$10.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Product Summary
Universal Fit, Tube Fitting Nut Tube Fitting Type
- You need to flare the tube to 37* to match the AN fittings
- Not for use with 45* flared lines
Key Specs
| AN Size | -8 AN |
| Fitting End A | -8 AN Tube nut |
| Hole Diameter | 0.500" |
| Material Type | Aluminum |
| Finish | Anodized |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 61760581 Details
Speedway Motors 61760581 Details
Use these tube nut couplers in conjunction with our tube sleeves (sold seperately) to seal bulkhead fittings to fuel cells, oil tanks and other applications using hard line fitting situations. You need to flare the tube to 37° to match the AN fittings. Not for use with 45° flared lines.

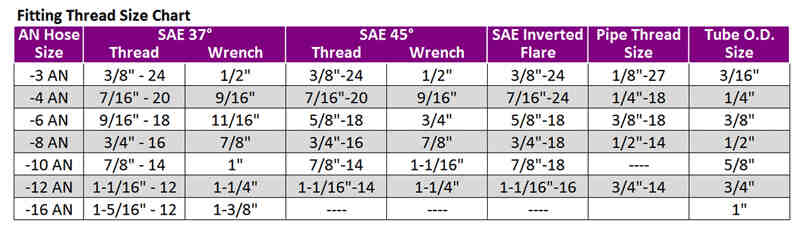

Charts
Guides & Documents
Speedway Motors 61760581 Specifications
Speedway Motors 61760581 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 61760581 |
| Brand | Speedway Motors |
| AN Size | -8 AN |
| Fitting End A | -8 AN Tube nut |
| Hole Diameter | 0.500" |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Black |
| GENERAL | |
| Tube Fitting Type | Tube Fitting Nut |
| Thread Pitch | 3/4"-16 |
| Angle | Straight |
| Notes | For 1/2" O.D. metal tube. |
| GTIN Code | 822320016642 |
| Sold in Quantity | Pair |
