Speedway 429/460 Ford Big Block Engine Weld-In Motor Mounts
Speedway 429/460 Ford Big Block Engine Weld-In Motor Mounts
Speedway Motors

|

#7204503

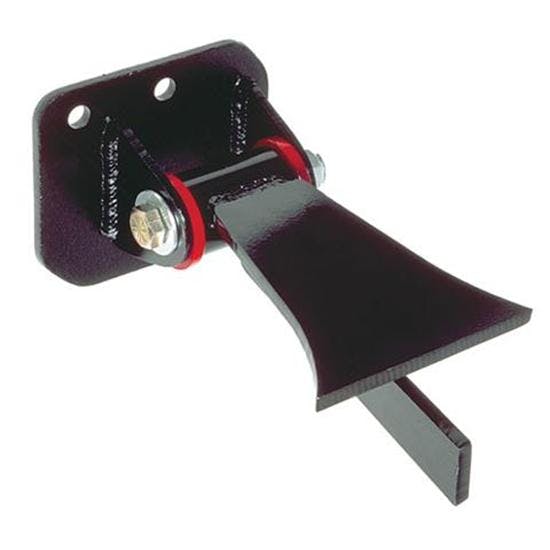

Speedway 429/460 Ford Big Block Engine Weld-In Motor Mounts

  • These big block Ford weld in motor mounts work well for a variety of application where a bolt in mount isn't available
  • Perfect for fabricating your own mounts for custom engine swaps
  • Features polyurethane bushings to dampen vibrations which provides a smooth driving experience
See More

$161.99

/pair

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Frame & Block Mounts Motor Mount Type

  • These big block Ford weld in motor mounts work well for a variety of application where a bolt in mount isn't available
  • Perfect for fabricating your own mounts for custom engine swaps
  • Features polyurethane bushings to dampen vibrations which provides a smooth driving experience
  • Hardware to bolt the engine and frame mount together is provided, however, engine hardware must be purchased separately
  • Sold in pairs
See more details

Key Specs

MFG. Part #7204503
BrandSpeedway Motors
Attachment StyleWeld-on/Bolt-on
Mount MaterialSteel
Bushing MaterialPolyurethane
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 7204503 Details

These 429-460 Ford motor mount kits allow you to put that 'little bit different' engine in your project. They have urethane bushings and include both the engine and frame brackets. Frame brackets must be cut to fit and welded to frame.

Specs

  • 3-bolt engine flange measures 4-7/8" x 5-1/2"
  • Tab extends 1-3/4" center of mounting hole
  • Upper bolt holes are 2" center to center and vertical spacing is 3-5/16" center to center
  • Frame mount is 6-1/2" from center of bushing sleeve to end of weld on tab
  • Lower weld on tab extends an additional 1-1/4" further than the top tab
  • Bushing outside diameter is 1-1/2" and bushing length is 3"

Speedway Motors 7204503 Specifications

KEY SPECS
MFG. Part #7204503
BrandSpeedway Motors
Attachment StyleWeld-on/Bolt-on
Mount MaterialSteel
Bushing MaterialPolyurethane
GENERAL
Motor Mount TypeFrame & Block Mounts
Application CompatibilityEngine Swap
Mount FinishPainted
ColorBlack
Bushing IncludedYes
Mounting Plate Length4.875"
Mounting Plate Width5.5"
Hole Diameter1.5"
Sold in QuantityPair

Ratings & Reviews

4.7

11 Reviews

Overall Assessment

Our product garners high praise for its quality, easy installation, and versatility. Users highlight its compatibility with various models, including an application on a 1969 Mustang with a swapped 460. The motor mount's perfect fit, possibly with slight trimming necessary, ensures practicality. Some may face issue with bolt lengths, but its constructive design prevailed as users adapted successfully, proving the product's adaptability. Another key assertion is the product's excellence in fitting custom-made frames. Our product's superiority shines, with customers ceasing to make their own mounts after finding ours for the considerable quality at a reasonable price.

Write A Review

4.7

11 reviews

5

9

4

1

3

1

2

0

1

0

Most Liked Positive Review

5.0

First class as always

I,d been looking for ways to mount a 460 in my 27 T Deluxe chassis. Had built my own but they were tooooo bulky. I found these mounts to be just what I needed,also used a six inch drop tranny mount, from Speedway of course. Speedy, this A coupe is going to be soooo sweet. I suspect it to be over 80% Speedway parts by the time it's completed. Model A coupe sitting on a Deluxe 27 T frame Powered by a punched out 460. [...] Sincerly, John Custer

Most Liked Negative Review

3.0

Not great Not horrible

I bought these instead of making my own which may have been a mistake. The product does seem to be well made. However I had a few problems. It comes with all the bolts you need but the bolts they send to attach it to the engine block are too long and bottom out in the block. So if you don't have the original bolts you will have to run to the hardware store. Sadly I had to actually move my engine from the desired location to make these mounts work. Yes they are made to cut and fit however they were too short on one side for my application.

Filter by Ratings

Yes

5.0

6 years ago

Hollywood

Rockledge Florida

Verified

very easy to work with

Would Recommend

Good quality

4.0

7 years ago

Mando

Corpus Christi, Tx

Verified

Using on a 1969 Mustang with a swapped 460.

Would Recommend

perfect fit

5.0

8 years ago

Ritchie

Sudbury ON

Verified

Easy to install looks good

Would Recommend

Beefy

5.0

9 years ago

Durty

Devils Lake

Verified

awesome product. I probably wouldnt paint them before sending them out being they are a weld on kit.

Would Recommend

These toot mounts are superb !

5.0

9 years ago

Scuba Steve

Greenfield, MA

Verified

I used these motor mounts to lnstall a Ford 460 engine in my 1931 Model A sedan hot rod project. A little trimming was expected, And they fit perfect.

Would Recommend

Just what I needed for my T bird. Nice p

5.0

12 years ago

JohnnyUnitas

Racine, WI, USA

Verified

Bought these on Ebay. Received 3 days later. Whould buy from speedway again

Would Recommend

works awesome!

5.0

13 years ago

buffaloboldt

Saskatchewan, Canada

I used this mount to install a 460 in a 54 chevy. Lots of material to work with and it fits great.

Would Recommend

Not great Not horrible

3.0

15 years ago

Josh

Anchorage, Alaska

I bought these instead of making my own which may have been a mistake. The product does seem to be well made. However I had a few problems. It comes with all the bolts you need but the bolts they send to attach it to the engine block are too long and bottom out in the block. So if you don't have the original bolts you will have to run to the hardware store. Sadly I had to actually move my engine from the desired location to make these mounts work. Yes they are made to cut and fit however they were too short on one side for my application.

Would Not Recommend

very nice product

5.0

15 years ago

scott's model t

goshen ohio

Verified

easy to install easily modified to fit custom 2x3 frame

Would Recommend

First class as always

5.0

16 years ago

Animal

Ozark, MO.

I,d been looking for ways to mount a 460 in my 27 T Deluxe chassis. Had built my own but they were tooooo bulky. I found these mounts to be just what I needed,also used a six inch drop tranny mount, from Speedway of course. Speedy, this A coupe is going to be soooo sweet. I suspect it to be over 80% Speedway parts by the time it's completed. Model A coupe sitting on a Deluxe 27 T frame Powered by a punched out 460. [...] Sincerly, John Custer

Would Recommend

Load More Reviews

Showing 10 of 11 reviews

Questions & Answers

12 Questions • 11 Answers

Do you sell replacement polyurethane bushings for these mounts? Mine are beginning to disintegrate.

by Mike

• 2 years ago

1 answer

View Answer

Will this work in a 1969 Mustang with a Mustang ii boxed crossmember?

by Armando

• 7 years ago

1 answer

View Answer

I have a 1993 Ford F-150 that had the i6 in it. I'm swapping it out to a 460 will these work in the 1993 Ford f150

by Pay138

• 8 years ago

2 answers

View Answers

I have a 60 ford f100 with a dropped axle. It currently has a 390 in it. But has a crossmember type engine mount in it that now hits the dropped axle. So i need to swap to a different type of motor mount. Will these work with a 390? And my dropped axle. I don't need a cross member type mount do i?

by Shane

• 10 years ago

1 answer

View Answer

I have a 1960 F100 and would like to know if these are the mounts I need to install a 460. I know you already said they fit a 58 but I just want to be 100 percent positive before I order. Thank you!

by Jose

• 10 years ago

1 answer

View Answer

Will these motor mounts work for putting a 70's 460 in to a 94 f150 that had a 300 I6 ?

by Furdturd

• 10 years ago

1 answer

View Answer

You have said these work with "c" channel frames, mine is boxed for my 1937 ford. Which 460 motor mounts will work with a boxed 1937 ford passenger car frame with a mustang II ifs crossmember setup? Thanks

by 1937ford

• 11 years ago

1 answer

View Answer

I have a 76 460 from an ltd and want to put it in a 58 f100, will these motor mounts do the job?

by Cori

• 11 years ago

1 answer

View Answer

How do I install these motor mounts on a Heidts super ride 2 front suspension ?

by pat

• 11 years ago

1 answer

View Answer

What is the best engine mount for a 460 Ford motor to use in a 54 Ford F100? Do you give dimensions on where exactly to put the motor mounts when you weld them to the frame? I just purchased and installed the Mustang II suspension in my 54 and the instructions were spot on for placement. Is this the same for the motor mounts?

by CAPogue76

• 13 years ago

1 answer

View Answer

Load More Questions

10 of 12 questions shown
