Product Summary

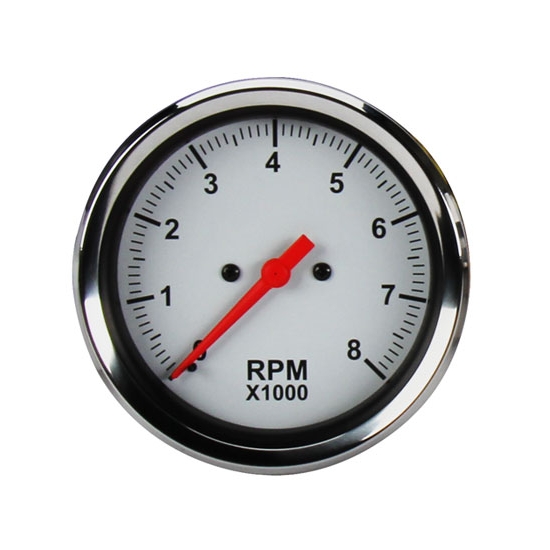

Universal Fit, Electric Gauge Type, 3.34" Body Diameter

  • Backlit white face with black lettering
  • 3-3/8" body diameter & 3-3/4" bezel
  • 0-8000 RPM measurement range
  • MUST be used with a resistor core wire and plugs
  • NOT for use with solid core wires

Key Specs

MFG. Part #91065053
BrandSpeedway Motors
Gauge TypeElectric
RPM Range0-8,000 RPM

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 91065053 Details

  • 3-3/8” body diameter
  • 3-3/4 ” bezel
  • Backlit white face with black lettering
  • Orange needle
  • NOT for use with solid core wires
  • MUST be used with a resistor core wire wire and plugs
  • Replacement light socket assembly available # 910-65075

Charts

Speedway Motors 91065053 Specifications

KEY SPECS
MFG. Part #91065053
BrandSpeedway Motors
Gauge TypeElectric
RPM Range0-8,000 RPM
GENERAL
Speedway Motors Catalog Part #910-65053
Body Diameter3.34"
Gauge Face ColorWhite
Lettering ColorBlack
Needle ColorOrange
Overall Diameter3.75"
LightedYes
Bezel FinishStainless
Body Length1.60"
Depth2.50"
Stud Length.80"
Stud Diameter.19"
Bezel IncludedYes
Sold in QuantityEach
