Speedway 3/16 Inch Nickel/Copper AN Brake Line Kit
- NiCopp is brake line tubing that is easier to bend and form that steel tubing, bends 58% easier than steel tubing and can be flared with a 37° AN flaring tool, or 45° double flaring tool
- NiCopp is considered the super -premium type of brake line and has the strength and structural integrity of steel lines but with the added benefit of being much more corrosion resistant
$196.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Nickel Copper Alloy, 0.188" Tube O.D.
- NiCopp is brake line tubing that is easier to bend and form that steel tubing, bends 58% easier than steel tubing and can be flared with a 37° AN flaring tool, or 45° double flaring tool
- NiCopp is considered the super -premium type of brake line and has the strength and structural integrity of steel lines but with the added benefit of being much more corrosion resistant
- 3/16" x 25' Nickel/Copper/Iron Alloy Tubing commonly referred to as '90-10 copper' and is approximately 9.2% Nickel, 1.4% Iron, 0.8% Manganese, and 88.6% Copper
- NiCopp does not rust or Corrode and should be considered where the longest life-span for lines is required and / or where a direct OEM replacement alternative is desired
- This kit included a 25 foot roll of 3/16" Nickel/Copper/Iron Alloy Tubing along with AN3 tubing adapters, weld on brake line tabs, and braided stainless steel AN3 brake lines
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91095191 |
| Material Type | Nickel Copper Alloy |
| Overall Length | 25 ft. |
| AN Size | -3 AN |
| Finish | Natural |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91095191 Details
Speedway Motors 91095191 Details
Now available for your 3/16" brake line consideration is a new NiCopp Nickel/Copper AN brake line complete kit. This kit included a 25 foot roll of 3/16 inch Nickel/Copper/Iron Alloy Tubing along with AN tubing adapters, weld on brake line tabs, and braided stainless steel AN3 brake lines. One click and you can include everything you need to plumb your brake system from the master cylinder to the wheels.
- 3/16" x 25' Nickel/Copper/Iron Alloy Tubing that meets SAE Standard J1047 and ISO 4038 meeting all international and U.S. requirements for brake tubing
- NiCopp alloy is approximately 9.2% Nickel, 1.4% Iron, 0.8% Manganese and 88.6% Copper
- NiCopp has the strength and structural integrity of steel lines but with the added benefit of being much more corrosion resistant
- NiCopp is also easier to bend and form than steel tubing, bends 58% easier than steel tubing
- Commonly referred to as '90-10 copper' and has a copper color
- NiCopp is considered the super-premium brand in brake lines and does not rust or corrode
- NiCopp has been used on hydraulic/fluid transfer systems on vehicles where steel lines and tubing are commonly used. This includes brake, fuel and transmission systems.
- Available in a 25' roll of 3/16" line
- This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool
- AN3 tube sleeves and tube nuts included
- AN Bulkhead fittings, AN tees, weld on brake line tabs and braided stainless steel AN brake lines to layout your entire brake line system
Kit includes
- (1) Speedway 3/16 Inch Ni/Copp Nickel/Copper Brake Line, 25 Ft. Roll
- (3) Steel AN3 Tube Nuts - 6/Bag
- (3) Steel AN3 Tube Sleeve - 6/Bag
- (4) 18" Braided S.S. Brake Line - Straight AN3
- (1) Weld-On Chassis Tabs, 1 Inch with 3/8 Hole, pack of 5
- (1) Steel Jam Nuts 3/8" 6/Pack
- (4) Steel AN3 Straight Bulkhead Adapter
- (6) Straight -3 AN Male to 1/8 NPT Male Adapter Fitting
- (2) Steel -3 AN Straight Bulkhead Tee Adapter Brake Fitting
Learn more about flaring lines and how to select proper automotive fittings by reading our tech article. The Principles of Automotive Fittings.
Charts

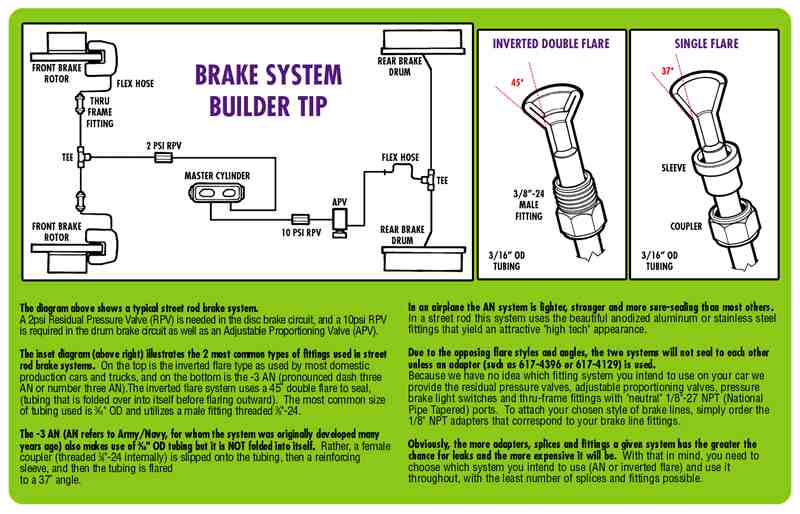

Brake System Builder Tip (GIF)
Speedway Motors 91095191 Specifications
Speedway Motors 91095191 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91095191 |
| Brand | Speedway Motors |
| Material Type | Nickel Copper Alloy |
| Overall Length | 25 ft. |
| AN Size | -3 AN |
| Finish | Natural |
| GENERAL | |
| Tube O.D. | 0.188" |
| Sold in Quantity | Kit |
| Notes | Fittings to calipers and master cylinders are not included. |
| Outer Braid | No Outer Braid |
| Inlet Fitting Angle | Straight |
| Outlet Fitting Angle | Straight |
| Hose Length | 18" |
