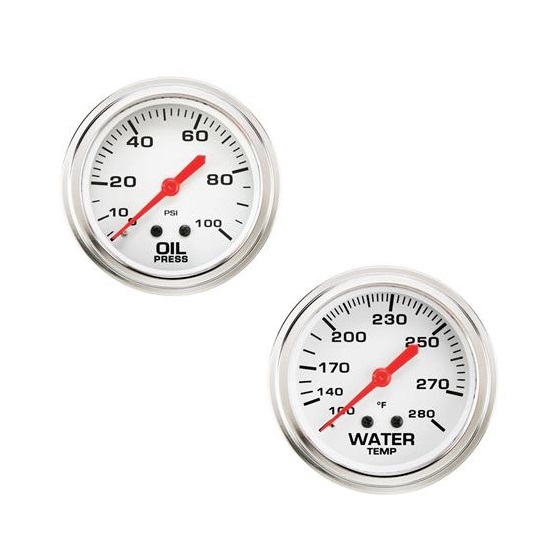

Speedway 2-5/8 Inch Oil Press & Water Temp Gauge Kit

Kit Includes:

• (1) Speedway 2-5/8 Inch Mechanical Oil Pressure Gauge
• (1) Speedway 2 5/8 Inch Water Temperature Gauge

Speedway 2-5/8 Inch Mechanical Oil Pressure Gauge

Lightweight 2-5/8” Speedway Motors gauges feature a chrome bezel, but we have included both a black and silver bezel to allow you to customize your panel. The backlight, white face makes these gauges easy to read from 0 – 100PSI. Also included with the gauge is a mounting bracket with all necessary hardware, tubing kit, and complete installation instructions.

• Overall Diameter: 8.83"
• Body Diameter: 2.56"
• Body Length: 1.11"
• Depth: 1.80"
• Mounting Bolt Center to Center: 2.06"
• Stud Length: .70"
• Stud Diameter: .19"
• Tube O.D.: .13"
• Tube Length: 72.00"
• Thread Pitch: 1/8" NPT
• Lighted: Yes
• Gauge Face Color: White
• Lettering Color: Black
• Needle Color: Orange
• Bezel Finish: Stainless

Speedway 2 5/8 Inch Water Temperature Gauge

Lightweight 2 5/8” Speedway gauges feature a chrome bezel, but we have included both a black and silver bezel to allow you to customize your panel. The backlit, white face makes these gauges easy to read from 100° – 280° F.

Also included with the gauge is a mounting bracket with all necessary hardware, 6ft. capillary tube, 1/2" NPT sending unit adapter, and complete installation instructions.

• Overall Diameter: 2.83"
• Body Diameter: 2.56"
• Body Length: 1.12"
• Depth: 3.410"
• Center to Center: 2.00"
• Stud Length: .70"
• Stud Diameter: .19"
• Tube Length: 72.00"
• Gauge Type: Mechanical
• Gauge Range: 100-280 degree gauge measurement range.
• Lighted: Yes
• Gauge Face Color: White
• Lettering Color: Black
• Needle Color: Orange
• Bezel Finish: Stainless

910-65013 Instructions (PDF)

910-65016 Instructions (PDF)
