Speedway 1962-1972 Mopar A Body Power Disc Brake Kt (5x4 BP)

#91664034

Speedway 1962-1972 Mopar A Body Power Disc Brake Kt (5x4 BP)

OEM style disc brake conversion kit for your 1962-72 Mopar A-body that uses your stock upper control arms, saving you more time and money
This new re-design gives you a bolt-on drum to disc conversion with all new lower ball joints & steering arm replacements

Bolt Pattern:

5 x 4"

$1,102.99

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Natural

OEM style disc brake conversion kit for your 1962-72 Mopar A-body that uses your stock upper control arms, saving you more time and money
This new re-design gives you a bolt-on drum to disc conversion with all new lower ball joints & steering arm replacements
Features 11" cast iron rotors, loaded calipers, backing plates, stock height spindles, 7/16" brake hoses, and all bearings, seals, and hardware
Also includes our premium black powder coated 7" power brake booster conversion kit to gain full braking power
The booster conversion is not OE-style which may require the windshield washer fluid tank to be relocated to the opposite side

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	91664034
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	One

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91664034 Details

Want an OEM style solution disc brake conversion kit for your MOPAR vehicle? You've come to the right place! Our kits are designed to retain the upper control arms unlike most kits on the market. Easy replace rotors and pads when the time comes at your local automotive store. Keep your restoration with parts that retain the OEM look! Want power brakes? Add a power brake conversion and have full braking power. Booster conversion kits come in many finishes and sizes and can be configured to any kit.

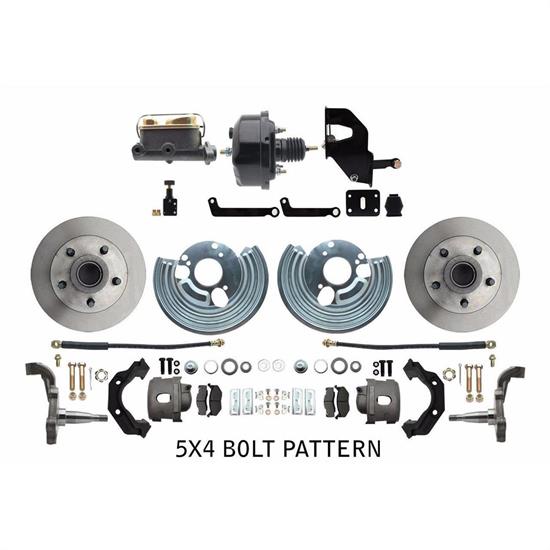

Mopar A Body Disc Brake Wheel Kit Includes:

11" Standard Rotors with 5x4 Bolt Pattern

Loaded Large Calipers

Backing Plates

Stock Height Spindles

7/16 Rubber Brake Hoses

Bearings/ Seals / Dust Caps & All Hardware
Lower Ball Joint & Steering Arm Replacements

Brake Booster Conversion Kit

7" Single Black Brake Booster

Black firewall bracket & linkage

Cast Iron Master Cylinder

Adjustable Proportioning Valve w/ 3/8 fittings

Vacuum hose & fittings

Our BRAND NEW Dodge A body disc brake kit REDESIGN Features all new parts that does NOT require you to change out your control arms Saves your customer 25% or more. New Re-Design gives you a bolt on drum to disc conversion with all new lower ball joints!

** NOTE***

Depending on what has been done to your engine over the years you may need to move the windshield washer fluid tank and re route those lines.
The stock air filter that came with the v6 engines is a haus and you may need to convert to an aftermarket air cleaner to be able to get the clearance you need to install the kit.
The booster conversion kit is not OE style and is an after market product.
The brake line tube nuts will not automatically screw in to the master cylinder and adapters will be needed. Our suggestion is to splice in a jumper line from the old location of the manual master cylinder on the firewall and run the lines the 15.5" inches you need to make it to the master.
If you have a larger battery than what came stock with your car the unit may be 1" too long and may need to get a smaller battery to get the unit to fit.

Charts

Installation Instructions (PDF)

Guides & Documents

Disc Brake Kits Installation Instructions (91664034)

Everything You Need to Know About Converting Drum Brakes to Disc

Speedway Motors 91664034 Specifications

KEY SPECS
MFG. Part #	91664034
Brand	Speedway Motors
Position	Front
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	One
Caliper Finish	Natural
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	Yes
Master Cylinder Included	Yes
Brake Booster Included	Yes
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 4"
Color	Natural
Front Caliper Finish	Natural
Front Caliper Piston Quantity	1

Ratings & Reviews

Be the first to write a review.

Questions & Answers

4 Questions • 4 Answers

Sort Questions

Will this fit with 14" 4x5 Duster 450 Mopar Rally Wheels?

by Hemper

• 2 years ago

1 answer

View Answer

Can 14" wheels be used with these rotors?

by Robert

• 2 years ago

1 answer

View Answer

Will this kit my 1965 Plymouth Barracuda with 273 v-8. 5x4 bolt pattern. Will the 7" single booster be enough to power my brakes? My original setup was a single booster with additional vacuum can.

by KK1

• 8 years ago

1 answer

View Answer

Is this Speedway Disc Brake kit for my '65 Dodge Dart available in a non-power option? I have manual brakes now and would like to keep it that way if possible.

by Eben

• 8 years ago

1 answer

View Answer

4 of 4 questions shown

Fitment

1963-1967 Dodge Dart

1967-1969 Plymouth Barracuda

1970-1971 Plymouth Duster

1971-1972 Plymouth Scamp

1962-1967 Plymouth Valiant
