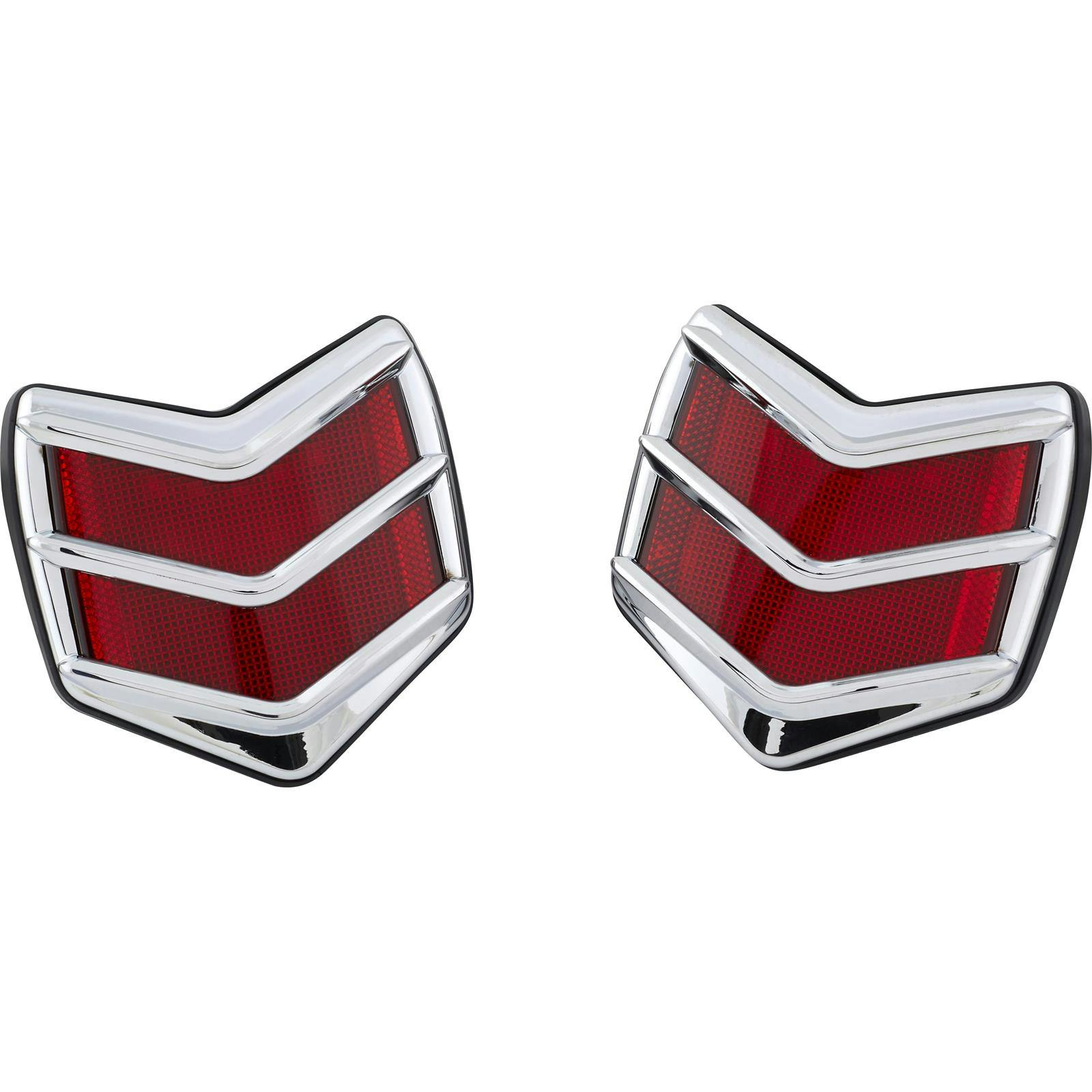

Speedway 1940 Ford LED Tail Lights

Complete tail light assembly with very bright and visible LED's for the stop, tail, and turn signal functions. LED's feature a wide viewing angle of 100 degrees as well as cool operation and long life. This led taillight is designed to bolt into a 1940 Ford fender in place of the original taillight.

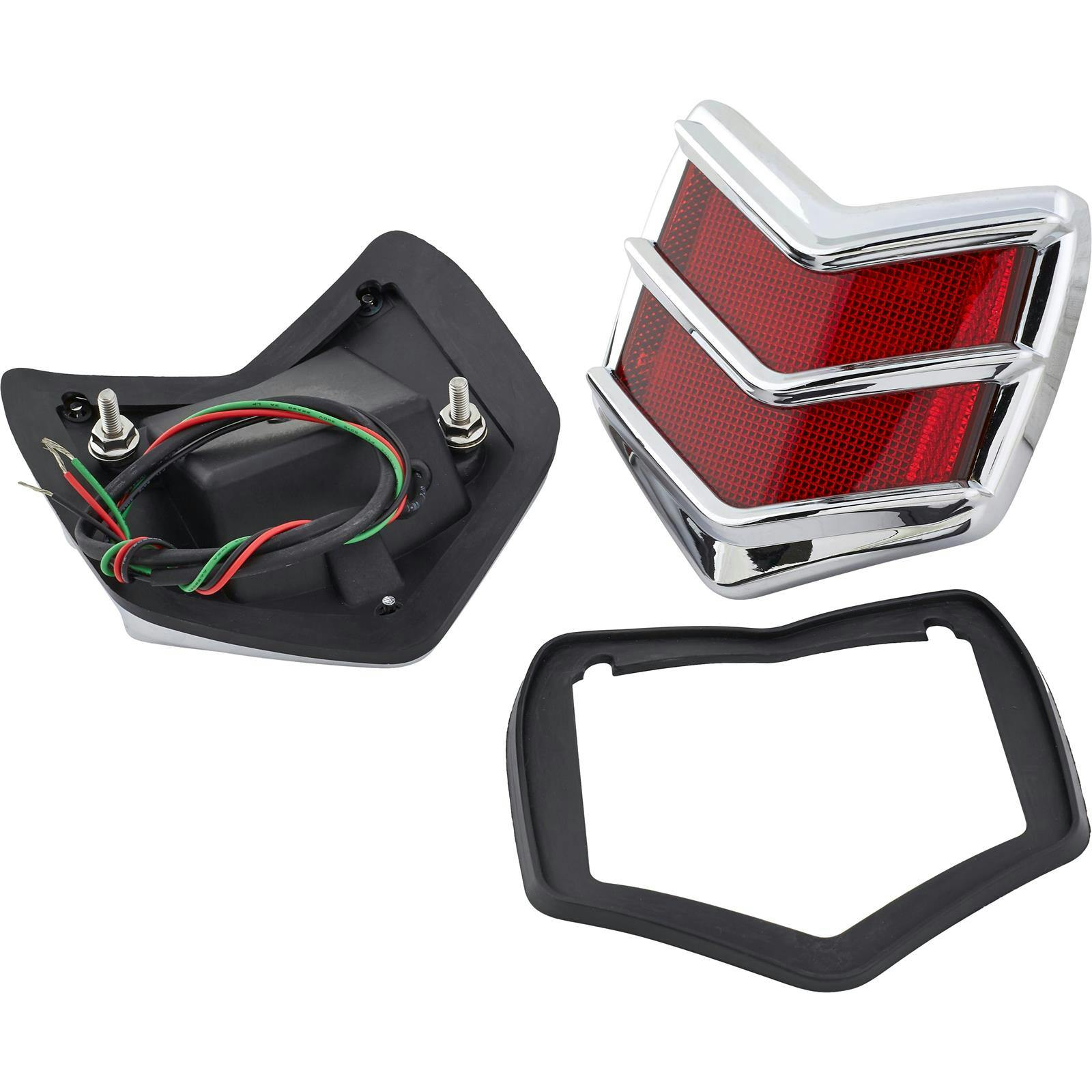

Kit Contents: (2) LED complete taillamp assemblies, (4) solderless connectors, (2) LED to car electrical harness, (2) custom molded taillamp to body seal, installation instructions.

• Bezel re-shaped to fit tightly to fender
• External screw hole eliminated for cleaner look
• 14 high intensity LED's per lamp
• Rust-proof composite taillamp bucket
• Stainless steel studs, nuts, and washers
• Acrylic lens
• Dual built-in reflectors for lights off safety
• Chromed plastic bezel
• Taillamp-to-body gasket seal

• 12 volt required
• Width:  4-5/8"
• Height:  4" (middle)
• Overall Height:  4-5/8"
• Backside is concave, is dished-in 1/2"
• Requires a 2-1/4" x 2-5/8" hole and a depth of 1" behind fender
• Uses two diagonal mounting studs measuring 3-7/16" center-to-center
