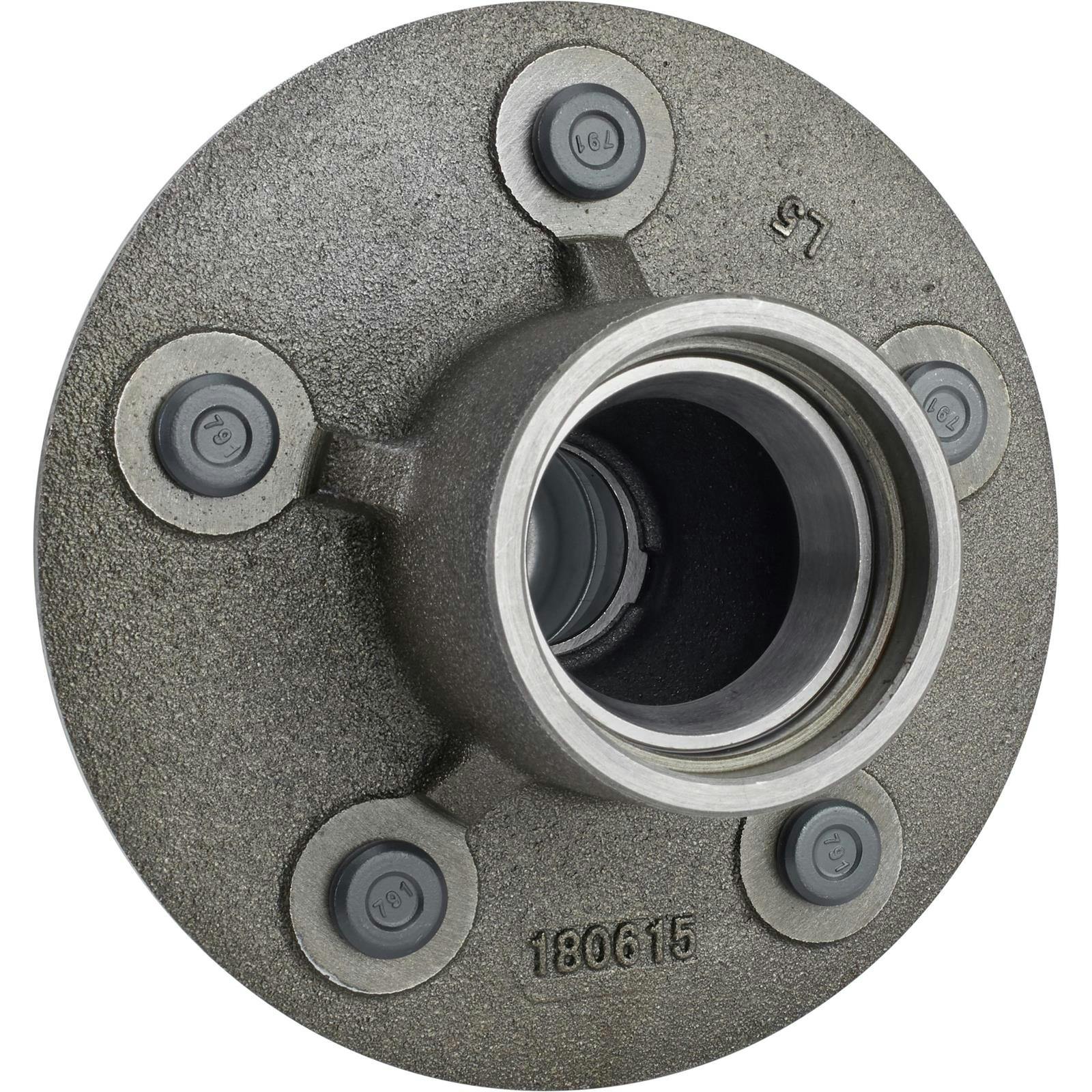

Speedway 1940-Design Early Ford Front Wheel Hub, 5 on 5.5 BP
5 on 5.5" Bolt Pattern, Steel, 7.50" Outside Diameter, 1.20" Stud Length, 1/2"-20 Thread Pitch
- New steel 1940 design front hubs feature 5 on 5-1/2" wheel bolt pattern with 1/2"-20 studs
- Upgraded design to accommodate a slip on brake drum
- Hub fits 1937-48 Ford passenger car spindles and 1937-47 Ford truck spindles
- Overall diameter of 7-1/2", center drum hub O.D. is 3-1/4"
- Bearing races are installed and includes dust caps
Our new front early Ford car hubs are of the 1940 design which was of the slip-over drum configuration (brake drum mounts to the "front" side of the hub). Studs are installed on a 5 on 5-1/2" bolt circle. Hubs have bearing races installed and include a dust cap.
Note: This hub does NOT include bearings and seals (sold separately in kit 910-65455).
Bearing & seals sold separately.
Dust cap measures:
- 1.945" diameter at the press in dimension
- 2.168" flange diameter
- 7/8" mounted length
NotesMounts to the front side. Uses bearing typical of Ford passenger cars 1932-48. 2.5" from front hub face to rear bearing boss. DUST CAP 91065450.2 91065450.1 WHEEL STUDS 1/2-20 DORMAN 610-234.
