Small Block Chevy Oil Pump Refresh Kit, Standard, RH Dipstick
Chevy Small Block V8, Standard Volume Oil Pump Volume, Standard Pressure Oil Pump Pressure
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Keeping your Small Block Chevy's oiling system in proper working order is important - you can't enjoy a Friday night at the racetrack or even cruise down the boulevard without it. The stock volume oil pump in this kit is a perfect fit for any mild SBC build or rebuild, as they meet or exceed all OEM specifications.
This stock volume oil pump is preset to 55-65 psi to satisfy most mild-mannered SBC engines. If additional oil pressure is needed, you can always change to a high-pressure oil pump spring for a quick boost in oil pressure if needed. Combined with the new 5/8" oil pickup tube, this is a perfect fit to your stock-style oil pan. On top of the pump and pickup tube, this kit includes everything you'll need to complete the installation. The included oil pump stud, oil pump gaskets, oil pan gaskets, and oil pan bolts will leave you with a refreshed and leak-free oiling system.
- Standard Volume SBC Oil Pump
- Meets or exceeds OEM SBC oil pump specs
- Standard volume pump for stock/mild SBC engines
- Stock-style 1.200" long gear
- Preset 55-65 psi pressure
- Use with 5/8" oil pump pick-up tube
- Oil Pump Mounting Gaskets
- Dead soft copper
- Bag of 3 gaskets
- SBC Oil Pump Pickup Tube
- For use with stock pans
- For use with standard or high volume 5/8 SBC oil pumps
- ARP Small Block Chevy Oil Pump Stud
- Heat-treated Chromoly steel
- Grade 8 nut and heat-treated washer
- 7/16"-20 x 7/16"-14
- 2-3/4" overall length
- 170,000 PSI tensile strength
- 6-point hex
- SBC Oil Pan Gaskets
- Right-hand dipstick (1980-1985)
- For 2-piece rear main seal blocks
- Bolt and Washer Kit
- Allen button-head bolt set
- Includes lock washers
577-OP55 Instructions (PDF)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

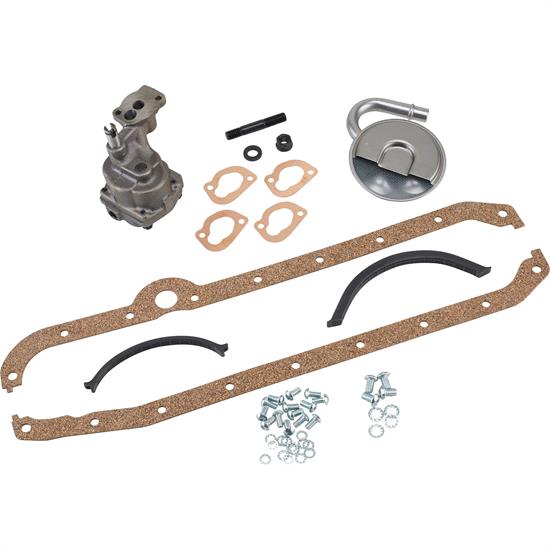

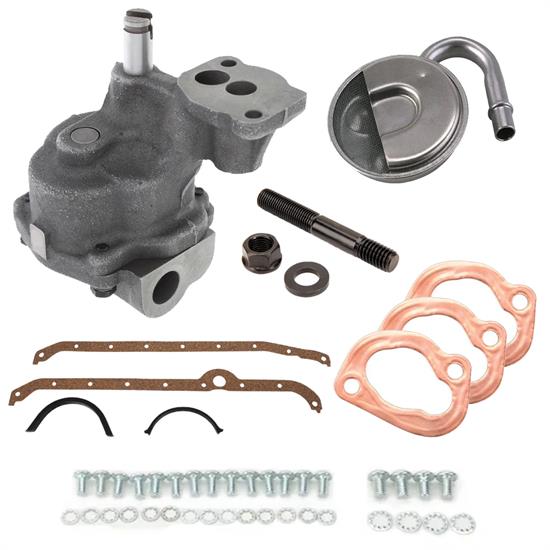

What's In The Kit
Stock Volume Small Block Chevy SBC Oil Pump, 5/8 PickupPart # 577OP55Qty x 1
ARP 230-7001 Small Block Chevy Oil Pump StudsPart # 101RPS1Qty x 1
Small Block Chevy Oil Pump Pick-Up Tube for Stock PanPart # 91015145Qty x 1
Small Block Chevy Copper Oil Pump Mounting GasketsPart # 577G55Qty x 1
Speedway Small Block Chevy Oil Pan Gaskets, RH Side DipstickPart # 91010222Qty x 1
Bolt and Washer Kit for Claimer Oil PanPart # 91017411Qty x 1
