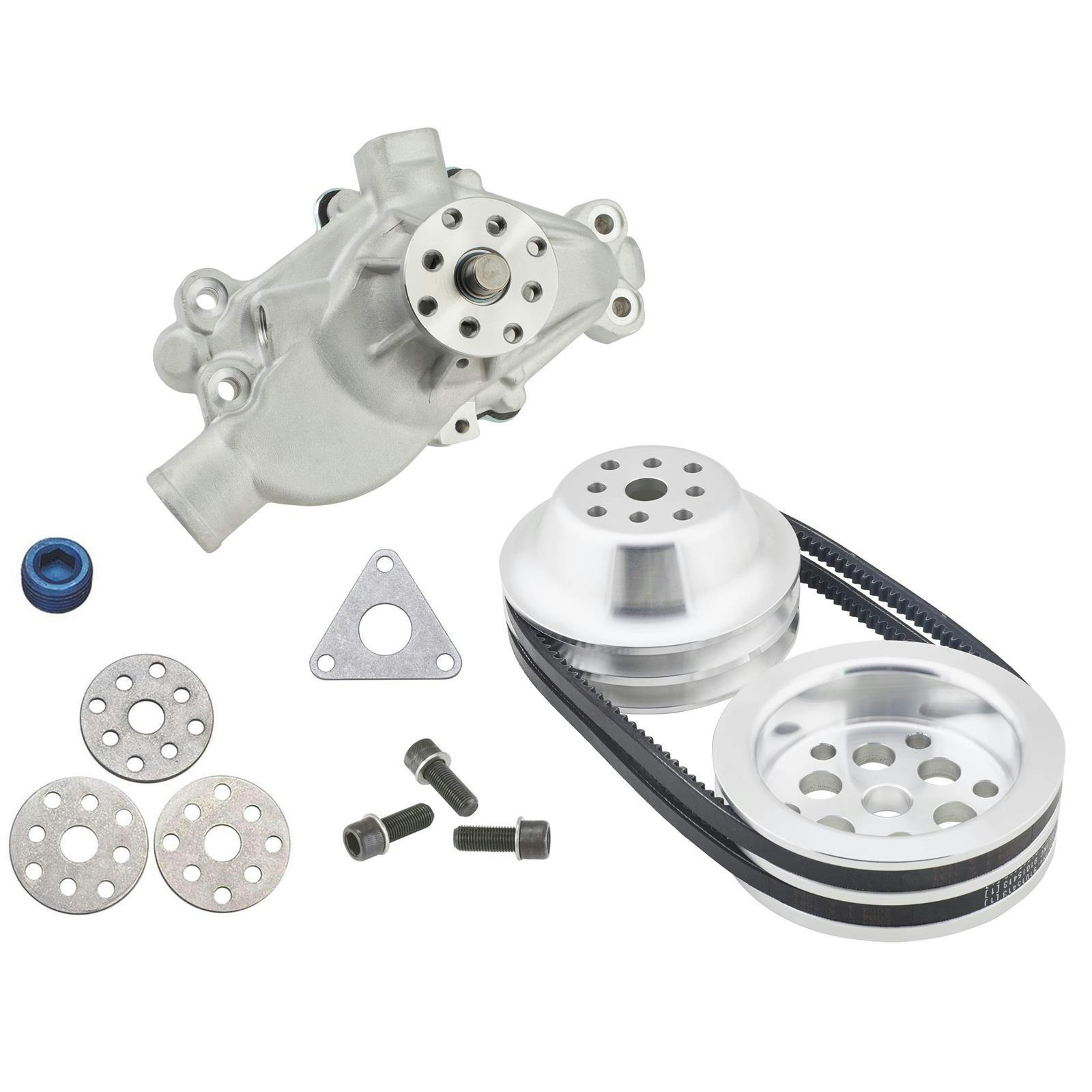

Small Block Chevy Aluminum Water Pump with 1:1 Pulleys

#91605201

Small Block Chevy Aluminum Water Pump with 1:1 Pulleys

State of the art T6 aluminum castings
Features an impeller with curved vanes for maximum flow, pressure, and equal distribution to both sides of the block
Unique seal assembly for leak proof operation

$287.99

In Stock

$293.34

Save $5.35

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Mechanical Water Pump Type, Clockwise/Standard Rotation

State of the art T6 aluminum castings
Features an impeller with curved vanes for maximum flow, pressure, and equal distribution to both sides of the block
Unique seal assembly for leak proof operation
1 to 1 to ratio ensures maximum cooling with minimal power loss
CNC machined aluminum construction with deep grooves eliminates thrown belts

Comes as a Kit

View Kit Components

See more details

Key Specs

Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Pump Flow	High-Volume
Housing Material	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91605201 Details

Water Pump

Each pump is manufactured from T6 aluminum and features an impeller with curved vanes for maximum flow, pressure and equal distribution to both sides of the block. It also features a unique seal assembly for leak proof operation.

3/4" shaft with 5/8" fan pilot snout
1/2" NPT hole on passenger side (for heater hose) and on top (for bypass hose)
Stamped steel rear plate
Extra thick fan hub
3/4" ultra duty bearings
Adjustable cam stop
State of the art aluminum castings
Equal flow to both cylinder banks
Precision impeller
Higher flow rate and pressure rate
Weighs 6 lbs.
Does not have a set screw retaining the fan hub

NOTE: This pump is designed for street use and is not to be run on a motor which exceeds 5,500 RPM.

Learn how to choose the correct water pump for your application by reading our tech article. SBC - Short vs Long Water Pump.

Pulley Combo

Kit includes a cast aluminum double groove water pump pulley and double groove crank pulley, and a matched pair of heavy-duty belts. Has a 1:1 water pump/crankshaft speed ratio.

Heavy-duty aluminum construction
Matched V-belts - 30-5/8" x 3/8" belts
1:1 to ratio

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

Kit Includes

(1) Small Block Chevy Performance Aluminum Water Pump, Short

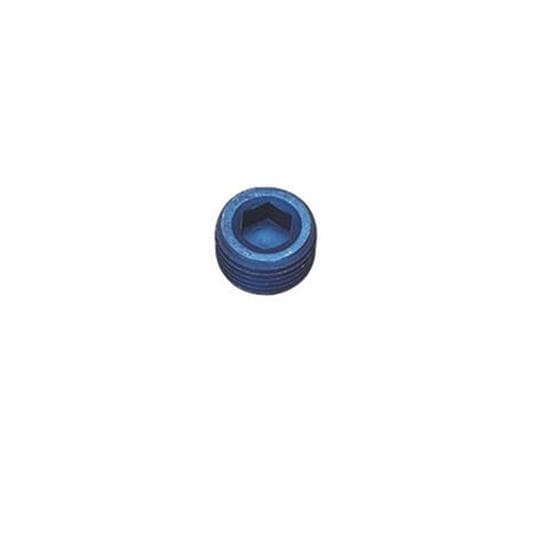

(1) Aluminum Allen Pipe Plugs, 1/2 Inch NPT

(1) Speedway 1:1 Pulley Combo, Small Block Chevy Short Pump

(1) Aluminum Lower Pulley Screw Kit, Fine Thread

(1) Aluminum Lower Pulley Spacer

(1) Universal Water Pump Shim Kit

Charts

910-15580 Instructions (PDF)

AN Thread Sizing Guide (GIF)

Fitting Thread Application Chart (GIF)

Water Pump ID Chart (GIF)

Guides & Documents

Water Pumps Installation Instructions (91605201)

Water Pumps Installation Instructions (91015580)

Pipe Fitting Plugs Sizing Chart (6176206)

Engine Pulley Sets Technical Information (91015464)

Speedway Motors 91605201 Specifications

KEY SPECS
MFG. Part #	91605201
Brand	Speedway Motors
Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Pump Flow	High-Volume
Housing Material	Aluminum
Housing Finish	Natural

GENERAL
Block to Hub Distance	5.625 Inch (5-5/8")
Heater Inlet Size	1/2" NPT
Hose ID	1.82"
Shaft Length	.56"
Pilot Shaft Diameter	0.63 Inch
Gasket(s) Included	Yes
Hardware Included	Yes
Weight	6.4 lbs.
Sold in Quantity	Kit
