Small Block Chevy Aluminum Side Water Pump w/20% V-Belts

#91605243

Small Block Chevy Aluminum Side Water Pump w/20% V-Belts

State of the art T6 aluminum casting water pump
Features an impeller with curved vanes for maximum flow, pressure, and equal distribution to both sides of the block
Unique seal assembly for leak proof operation

$673.99

In Stock

$686.81

Save $12.82

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Mechanical Water Pump Type, Clockwise/Standard Rotation

State of the art T6 aluminum casting water pump
Features an impeller with curved vanes for maximum flow, pressure, and equal distribution to both sides of the block
Unique seal assembly for leak proof operation
Pulleys features a cast aluminum construction and natural finish
Pulley measures 6.65" OD and provides a 20% reduction

Comes as a Kit

View Kit Components

See more details

Key Specs

Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Housing Material	Aluminum
Housing Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91605243 Details

Water Pump

Each pump is manufactured from T6 aluminum and features an impeller with curved vanes for maximum flow, pressure and equal distribution to both sides of the block. It also features a unique seal assembly for leak proof operation.

3/4" shaft with 5/8" fan pilot snout
1/2" NPT hole on passenger side (for heater hose) and on top (for bypass hose)
Stamped steel rear plate
Extra thick fan hub
3/4" ultra duty bearings
Adjustable cam stop
State of the art aluminum castings
Equal flow to both cylinder banks
Precision impeller
Higher flow rate and pressure rate
Weighs 6 lbs.
Does not have a set screw retaining the fan hub

NOTE: This pump is designed for street use and is not to be run on a motor which exceeds 5,500 RPM.

Learn how to choose the correct water pump for your application by reading our tech article. SBC - Short vs Long Water Pump.

Pulleys and Belts

Speedway Cast Aluminum double groove pulleys for Small Block Chevy feature a 20% reduction. Reduction pulleys have a smaller diameter which slows the speed of your fan, water pump, and alternator to reduce drag for more top-end horsepower. Plus, high RPM water pump operation is improved due to reduced fluid cavitation.

Machined from lightweight cast aluminum
Superior belt retention with extra-deep grooves
20% reduction slows accessories down for less drag
Adds top-end horsepower
Reduces water pump impeller speed below cavitation threshold
Improved high-RPM cooling capabilities
910-15482
- 6-5/8" O.D.
910-15484
- 5-7/16" diameter

Note: The lower crank pulleys are manufactured thicker than normal stock pulleys. This requires longer 3/8" bolts to be purchased separately. Allen head type bolts recommended.

Get the correct pulleys for your application by learning which water pump you have as explained in our tech article. SBC - Short vs Long Water Pump.

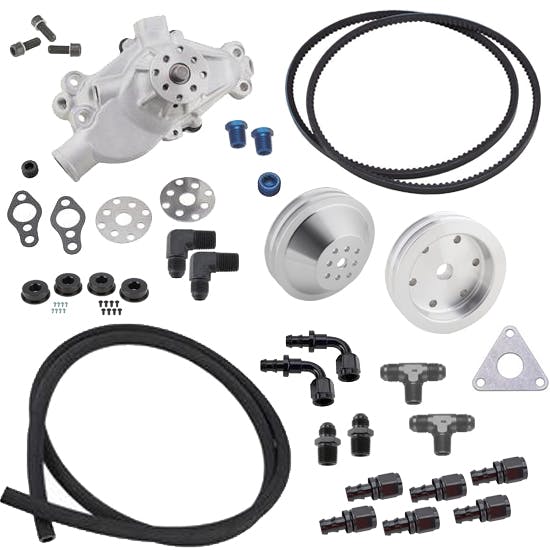

Kit Includes

(1) Small Block Chevy Aluminum Short Side Water Pump
(1) Aluminum Allen Pipe Plug, 1/2 Inch NPT
(2) Aluminum Pipe Bushing Reducer Fittings, 1/2 NPT to 3/8 NPT
(1) Small Block Chevy Cast Alum. Short Pump Double Groove Pulley
(1) Small Block Chevy Cast Alum. Short Pump Double Groove Lower Pulley
(1) Matched Belts for Cast Aluminum Pulleys 910-15460
(1) Aluminum Lower Pulley Screw Kit, Fine Thread
(1) Aluminum Lower Pulley Spacer
(1) Universal Water Pump Shim Kit
(1) Aluminum Freeze Plugs with Return Set
(2) Black 90 Degree -8 AN Flare to 1/2 Inch NPT Pipe Adapter Fittings
(2) Black Straight -8 AN Flare to 3/8 Inch NPT Pipe Adapter Fittings
(2) Fragola 482508-BL AN Flare Tee Fittings, -8 AN to 3/8 NPT, Black
(6) Black Socketless Straight Push-On Hose Ends, -8 AN
(2) Black 90 Degree Socketless Push-On Hose Ends, -8 AN
(1) Aeroquip Special Application Socketless -8 AN Hose, Black, 6Ft Length

Charts

AN Thread Sizing Guide (GIF)

Fitting Thread Application Chart (GIF)

Guides & Documents

Pipe Fitting Plugs Sizing Chart (6176206)

Accessory Drive Belts Technical Information (91015401)

Pipe to AN Fittings Sizing Chart (61760871)

Pipe to AN Fittings Sizing Chart (61760481)

AN Hoses Technical Information (617008)

Pipe Fitting Reducers Sizing Chart (6176158)

Speedway Motors 91605243 Specifications

KEY SPECS
MFG. Part #	91605243
Brand	Speedway Motors
Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Housing Material	Aluminum
Housing Finish	Natural

GENERAL
Adjustable	No
Groove Count	2
Block to Hub Distance	5.625 Inch (5-5/8")
Hose ID	1.82"
Shaft Length	.56"
Pilot Shaft Diameter	0.63 Inch
Gasket(s) Included	Yes
Hardware Included	Yes
Weight	6.4 lbs.
Sold in Quantity	Kit
