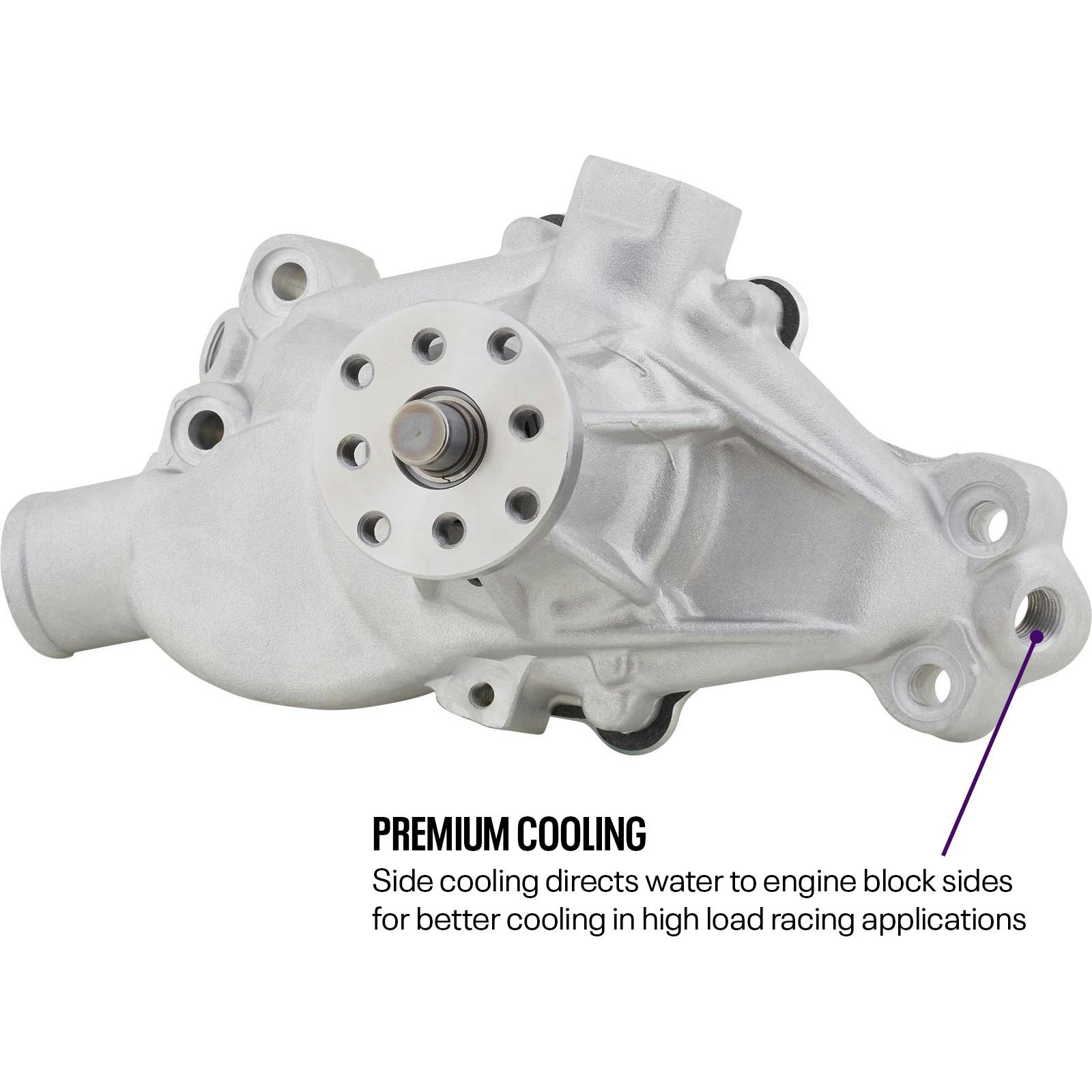

Small Block Chevy Aluminum Short Side Water Pump

#91025580

Small Block Chevy Aluminum Short Side Water Pump

Side Cooling directs water to engine block sides for better cooling in high load racing applications
3/4-inch pump shaft with 5/8-inch fan pilot rides on ultra duty roller bearings
Extra thick .3655 inch CNC-machined fan hub is press fit and retained with a snap ring

$111.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Mechanical Water Pump Type, Clockwise/Standard Rotation

Side Cooling directs water to engine block sides for better cooling in high load racing applications
3/4-inch pump shaft with 5/8-inch fan pilot rides on ultra duty roller bearings
Extra thick .3655 inch CNC-machined fan hub is press fit and retained with a snap ring
State of the art short style heavy duty ribbed aluminum water pump casting for additional bearing support
3/8-inch NPT ports machined into both sides of the water pump casting for external cooling hose upgrade

See more details

Key Specs

Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Pump Flow	High-Volume
Housing Material	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91025580 Details

Side cooling ports allow direct cooling to engine block for high load applications
Beneficial upgrade for engines with aluminum cylinder heads to cool siamese center ports
High quality short style reinforced aluminum sbc short water pump casting
Precision machined curved impeller for optimum water flow
Pump provides high flow and high pressure output for oval track applications
3/4-inch pump shaft with 5/8-inch fan pilot for sustained high rpm use
Large heavy duty pump shaft roller bearing to support heavy shaft loads
Extra thick CNC machined fan hub that is press fit and retained by a snap ring
Pump housing features provision for adjustable cam stop hardware (included)
3/8-inch NPT machined holes on each side of water pump for block cooling
Gaskets and hardware included (actual attaching bolts not included)

Keep Your Engine Cool, Lap After Lap

Oval track racing, be it asphalt, dirt, or clay, is hard on your equipment. Running wide open lap after lap with everything on “kill” trying to make it to the winner’s circle means your stuff needs to work, and more importantly it needs to last! Nowhere is this more evident than with your race car’s cooling system. Keeping your race car’s temperature gauge in the “green” is not always easy to do, but over the years there have been many sbc cooling tricks to help keep a race car’s engine cool, including retrofitting your small block Chevy for “side cooling.”

Side cooling has been around for a long time in motorsports and marine applications and is a great way to help cool an engine that sees continuous high loads. It is especially beneficial in modern racing engines with aluminum cylinder heads. While aluminum sbc heads have many benefits, including larger intake and exhaust ports and thicker decks, all that must be packaged in the constraints of the original iron head’s external dimensions so your intake and exhaust and accessories will still mount properly. This leaves the aluminum sbc head with smaller coolant passages, creating cooling issues in these applications. By pumping the water just cooled by the radiator directly into each side of the engine block it helps keep things cooler, especially the siamese center ports.

Ready For Your Side Cooling Upgrade

Starting with our popular high flow/high pressure short sbc aluminum water pump assembly, we machine the reinforced aluminum casting for 3/8-inch NPT fittings on each side of the pump to provide water outlet connections for plumbing to your engine block’s water jacket to aid in cooling the siamese center exhaust ports/valves of the sbc heads. These ports machined into our sbc short water pump allow the installation of 3/8-inch NPT fittings of your choice (hose barb, AN 37 degree, etc.) and as such we do not include any port fittings due to the wide variations in line choices, line routing, and more.

The precision machined impeller in our sbc aluminum water pump guarantees sufficient water flow for side cooling conversions while still being used as a traditional sbc short water pump that pushes coolant into the front of the block. The heavy duty 3/4-inch pump shaft, supported by a large roller bearing, ensures a long trouble-free service life, lap after lap and features a 5/8-inch fan pilot. The CNC-machined fan hub measures .3655-inch thick and ensures your water pump pulley runs straight and true and can support the loads a dual V-belt racing setup imparts on a water pump.

Installs Just Like a Standard Small Block Chevy Water Pump

Replacing a small block Chevy’s water pump is often a quite simple affair, especially when there aren’t any accessories in the way. Chevy really makes it easy with just four bolts. The Speedway Motors version attaches the same way (if you need new mounting bolts we have those as well). We have also included an adjustable cam stop boss with adjustment stud and lock nut. This stud supports your timing cover when you use a cam button to control camshaft thrust location, which is especially useful with roller cam conversions.

Once your Speedway Motors sbc aluminum water pump is mounted and ready for plumbing you will need to determine how best to route the sbc external cooling lines to your block. To start your side cooling conversion, we offer race car parts such as our special 1/2-inch NPT threaded core plugs for your small block Chevy. Additionally, Speedway Motors offers a budget friendly hose and fitting kit to help you finish your coolant bypass hose conversion quickly. Lastly, don’t forget you’ll need a pair of water pump NPT adapters as well!

With our new sbc short water pump designed specifically for oval track small block Chevy engines and the necessary race car parts you can convert your race engine to utilize the popular side cooling mod without any custom machining or other hassles. Bolt the pump on, plumb your cooling mod, and hit the track knowing your race car is going to stay cool lap after lap.

CA Prop 65

Speedway Motors 91025580 Specifications

KEY SPECS
MFG. Part #	91025580
Brand	Speedway Motors
Water Pump Type	Mechanical
Water Pump Style	Short Depth
Rotation	Clockwise/Standard
Pump Flow	High-Volume
Housing Material	Aluminum
Housing Finish	Natural

GENERAL
Adjustable	No
Housing Color	Natural
Block to Hub Distance	5.625 Inch (5-5/8")
Hose Adapters Included	No
Heater Inlet Size	1/2" NPT
Hose ID	1.83"
Shaft Length	.56"
Pilot Shaft Diameter	0.63 Inch
Gasket(s) Included	Yes
Hardware Included	No
Weight	6.4 lbs.
Sold in Quantity	Each
Notes	NPT fittings not included

Ratings & Reviews

Be the first to write a review.

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1994 Buick Roadmaster

Gen 1 L05 Small Block Chevy

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1990-1992 Cadillac Fleetwood

Gen 1 L05 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957 Chevy Bel Air

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Bel Air

2-Piece Rear Main Chevy 400

1973-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1971 Chevy Blazer

Gen 1 L14 Small Block Chevy

1972 Chevy Blazer

Gen 1 L14 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973 Chevy Blazer

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1994 Chevy Blazer

Gen 1 L05 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1972 Chevy C10

Gen 1 L14 Small Block Chevy

1973 Chevy C10

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974-1975 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1984 Chevy C10

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy C10

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1971 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1972-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974-1975 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1982-1987 Chevy C15

Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LE9 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1999 Chevy C1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1971 Chevy C20

Gen 1 L14 Small Block Chevy

1972-1973 Chevy C20

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974-1975 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976 Chevy C20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy C20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C20

2-Piece Rear Main 305 LG4

1984 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy C20

2-Piece Rear Main 305 LG4

1986 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy C20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1971 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1972-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974-1975 Chevy C20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1978 Chevy C20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1984 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1960-1965 Chevy C30

2-Piece Rear Main Chevy 283

1966 Chevy C30

2-Piece Rear Main Chevy 283
Gen 1 L79 Small Block Chevy

1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1971 Chevy C30

Gen 1 L14 Small Block Chevy

1972-1973 Chevy C30

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974-1975 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1977 Chevy C30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1978-1979 Chevy C30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1984 Chevy C30

Gen 1 L46 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1983-1987 Chevy C35

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1988-1995 Chevy C35

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C35

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1988-1995 Chevy C3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1967-1968 Chevy Camaro

327 Chevy Small Block V8
Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1972 Chevy Camaro

Gen 1 L14 Small Block Chevy

1973 Chevy Camaro

Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1975 Chevy Camaro

Gen 1 L48 Small Block Chevy

1976-1979 Chevy Camaro

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1982 Chevy Camaro

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

1-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4

1987-1991 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy

1992 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy

1993-1995 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1977 Chevy Caprice

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1979 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1980-1982 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 267
Gen 1 L48 Small Block Chevy

1983 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283
Gen 1 L79 Small Block Chevy

1968 Chevy Chevelle

Gen 1 L14 Small Block Chevy
Gen 1 L79 Small Block Chevy

1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1963-1964 Chevy Chevy II

2-Piece Rear Main Chevy 283

1965-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283
Gen 1 L79 Small Block Chevy

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy
Gen 1 L79 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1962-1963 Chevy Corvette

Gen 1 L76 Small Block Chevy

1964-1968 Chevy Corvette

Gen 1 L79 Small Block Chevy

1973-1974 Chevy Corvette

Gen 1 L48 Small Block Chevy

1980 Chevy Corvette

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1984 Chevy Corvette

Gen 1 L83 Small Block Chevy

1985 Chevy Corvette

2-Piece Rear Main Chevy 350

1986-1991 Chevy Corvette

Gen 1 L98 Small Block Chevy

1992-1995 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1957 Chevy Del Ray

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283
Gen 1 L79 Small Block Chevy

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy
Gen 1 L79 Small Block Chevy

1970-1972 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1975 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977 Chevy El Camino

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978 Chevy El Camino

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1979 Chevy El Camino

2-Piece Rear Main Chevy 267
2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy El Camino

2-Piece Rear Main Chevy 267
Gen 1 LG3 Small Block Chevy

1983 Chevy El Camino

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L81 Small Block Chevy

1985 Chevy El Camino

2-Piece Rear Main 305 LG4

1986 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1996-1999 Chevy Express 1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 1500

Vortec L30 Small Block Chevy

1996 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1998-1999 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 2500

Vortec L30 Small Block Chevy

1996-1999 Chevy Express 3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1975 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy G10

2-Piece Rear Main 305 LG4

1984 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985 Chevy G10

2-Piece Rear Main 305 LG4

1986 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy G10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1968-1969 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1970 Chevy G10 Van

2-Piece Rear Main Chevy 350
Gen 1 L14 Small Block Chevy

1971 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1972-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy G10 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy G20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy G20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy G20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G20

2-Piece Rear Main 305 LG4

1986 Chevy G20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1995 Chevy G20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1971 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1972 Chevy G20 Van

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy G20 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1977 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1978-1979 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1981 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1982 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1986-1995 Chevy G30

Gen 1 L05 Small Block Chevy

1996 Chevy G30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1970 Chevy G30 Van

2-Piece Rear Main Chevy 350

1972-1974 Chevy G30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1977-1979 Chevy Impala

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy Impala

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy Impala

2-Piece Rear Main 305 LG4

1985 Chevy Impala

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1994-1995 Chevy Impala

Gen 2 LT1 Small Block Chevy

1996 Chevy Impala

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1971 Chevy K10

Gen 1 L14 Small Block Chevy

1972-1973 Chevy K10

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1979 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10

2-Piece Rear Main 305 LG4

1986 Chevy K10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1971 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1972-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975 Chevy K10 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1971 Chevy K20

Gen 1 L14 Small Block Chevy

1972-1973 Chevy K20

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1980 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1986 Chevy K20

Gen 1 L05 Small Block Chevy

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1971 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1972-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1968-1971 Chevy K30

Gen 1 L14 Small Block Chevy

1972-1973 Chevy K30

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1974 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1986 Chevy K30

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1970-1974 Chevy K5 Blazer

2-Piece Rear Main Chevy 350

1975-1976 Chevy K5 Blazer

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1981 Chevy K5 Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1982 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1975 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy Laguna

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283
Gen 1 L79 Small Block Chevy

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974-1975 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977-1978 Chevy Malibu

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1970-1971 Chevy Monte Carlo

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400

1972 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1973-1975 Chevy Monte Carlo

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400

1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977 Chevy Monte Carlo

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1979-1981 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 267

1982 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 267
2-Piece Rear Main Chevy 350

1983 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984-1985 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1975 Chevy Monza

2-Piece Rear Main Chevy 262
Gen 1 L48 Small Block Chevy

1976 Chevy Monza

2-Piece Rear Main Chevy 262
Gen 1 LG3 Small Block Chevy

1977-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1957 Chevy Nomad

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1972 Chevy Nova

Gen 1 L14 Small Block Chevy

1973 Chevy Nova

Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy

1974 Chevy Nova

Gen 1 L48 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262
2-Piece Rear Main Chevy 350

1976-1979 Chevy Nova

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1975 Chevy P30

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1976 Chevy P30

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1977-1979 Chevy P30

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1980-1983 Chevy P30

2-Piece Rear Main Chevy 350

1985 Chevy P30

2-Piece Rear Main Chevy 350

1986-1995 Chevy P30

Gen 1 L05 Small Block Chevy

1996-1999 Chevy P30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1970 Chevy P30 Van

2-Piece Rear Main Chevy 350

1972 Chevy P30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1974 Chevy P30 Van

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1987 Chevy R10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20 Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy R25

Gen 1 L05 Small Block Chevy

1996-1999 Chevy R25

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1989 Chevy R2500

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R3500

Gen 1 L05 Small Block Chevy

1957 Chevy Sedan Delivery

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1995 Chevy Silverado

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Silverado

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1947-1959 Chevy Suburban

2-Piece Rear Main Chevy 265

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1987-1994 Chevy Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1995 Chevy Tahoe

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Tahoe

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1955 Chevy Truck

2-Piece Rear Main Chevy 265

1957 Chevy Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1955 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1987 Chevy V10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1988 Chevy V10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy V20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V20 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V3500

Gen 1 L05 Small Block Chevy

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962 GMC 1000 Series

2-Piece Rear Main Chevy 283

1963-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283
Gen 1 LE9 Small Block Chevy

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967-1968 GMC C15/C1500 Pickup

327 Chevy Small Block V8

1967 GMC C15/C1500 Suburban

2-Piece Rear Main Chevy 350

1968 GMC C15/C1500 Suburban

327 Chevy Small Block V8

1980-1984 GMC C1500

2-Piece Rear Main Chevy 350

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1980-1986 GMC C1500 Suburban

2-Piece Rear Main Chevy 350

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1978-1987 GMC Caballero

2-Piece Rear Main Chevy 350

1963-1966 GMC G1000 Series

327 Chevy Small Block V8

1975-1978 GMC G15

2-Piece Rear Main Chevy 350

1967-1974 GMC G15/G1500 Van

2-Piece Rear Main Chevy 350

1964-1966 GMC G1500

327 Chevy Small Block V8

1979-1986 GMC G1500

2-Piece Rear Main Chevy 350

1987-1995 GMC G1500

Gen 1 L05 Small Block Chevy

1975-1978 GMC G25

2-Piece Rear Main Chevy 350

1967-1974 GMC G25/G2500 Van

2-Piece Rear Main Chevy 350

1979-1986 GMC G2500

2-Piece Rear Main Chevy 350

1987-1995 GMC G2500

Gen 1 L05 Small Block Chevy

1975-1978 GMC G35

2-Piece Rear Main Chevy 350

1967 GMC G35/G3500 Van

2-Piece Rear Main Chevy 350

1970-1974 GMC G35/G3500 Van

2-Piece Rear Main Chevy 350

1979-1986 GMC G3500

2-Piece Rear Main Chevy 350

1987-1994 GMC G3500

Gen 1 L05 Small Block Chevy

1995-1996 GMC G3500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1964-1966 GMC I1000

327 Chevy Small Block V8

1965-1966 GMC I1500

327 Chevy Small Block V8

1965-1966 GMC I2500

327 Chevy Small Block V8

1966 GMC I3500

327 Chevy Small Block V8

1970-1973 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1974-1977 GMC Jimmy

2-Piece Rear Main Chevy 350

1978-1982 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1983-1984 GMC Jimmy

2-Piece Rear Main Chevy 350

1986 GMC Jimmy

Gen 1 L05 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1988-1990 GMC Jimmy

Gen 1 L05 Small Block Chevy

1966 GMC K1000

327 Chevy Small Block V8

1966 GMC K1000 Pickup

327 Chevy Small Block V8

1975-1978 GMC K15

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1966 GMC K15/K1500 Pickup

327 Chevy Small Block V8

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1979-1984 GMC K1500

2-Piece Rear Main Chevy 350

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1986 GMC K1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1975-1978 GMC K25

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1979-1984 GMC K2500

2-Piece Rear Main Chevy 350

1986 GMC K2500

Gen 1 L05 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1992-1993 GMC K2500 Suburban

Gen 1 L05 Small Block Chevy

1994-1999 GMC K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1966 GMC P1000

2-Piece Rear Main Chevy 283

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1988-1991 GMC R1500 Suburban

Gen 1 L98 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400
Gen 1 LM1 Small Block Chevy

1955-1959 GMC Suburban

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1960-1966 GMC Suburban

2-Piece Rear Main Chevy 283
Gen 1 L69 Small Block Chevy
Gen 1 L76 Small Block Chevy

1967 GMC Suburban

Gen 1 L14 Small Block Chevy
Gen 1 L46 Small Block Chevy
Gen 1 L76 Small Block Chevy

1955 GMC Truck

2-Piece Rear Main Chevy 265

1956-1960 GMC Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1987-1991 GMC V1500 Suburban

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987 GMC V2500

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V2500 Suburban

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V3500

350 Chevy Small Block V8

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
