#91031409

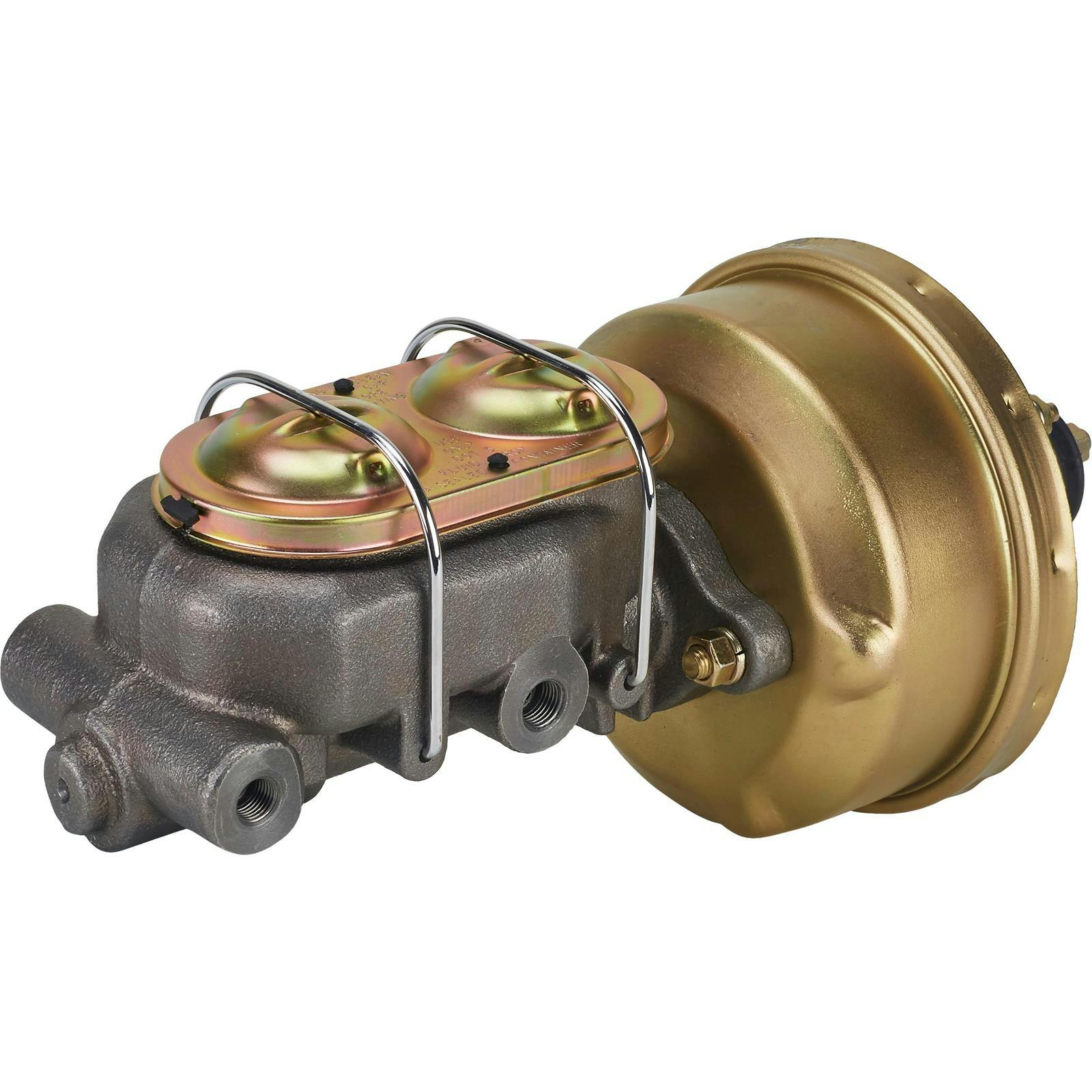

Single 7 Inch Brake Booster Master Cylinder Combo, 1 Inch Bore
- Compact design adds vacuum assist for increased brake pedal response, easily mounted under the hood or floor of most vehicles
- NEW heavy duty steel booster measures 7" in diameter and has a zinc plated finish for corrosion resistance
- Master cylinder has a 1" bore with 3/8"-24 IFF outlets on both sides of the M/C allowing for brake lines to be run specific for your needs
$163.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 7 Inch Brake Booster Diameter
- Compact design adds vacuum assist for increased brake pedal response, easily mounted under the hood or floor of most vehicles
- NEW heavy duty steel booster measures 7" in diameter and has a zinc plated finish for corrosion resistance
- Master cylinder has a 1" bore with 3/8"-24 IFF outlets on both sides of the M/C allowing for brake lines to be run specific for your needs
- Mounting for the booster has 3-3/8" on center, 4 bolt pattern to simplify installation
- Mounted overall length is 11.75"
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91031409 |
| Brand | Speedway Motors |
| Brake Booster Diameter | 7 Inch |
| Master Cylinder Material | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91031409 Details
Speedway Motors 91031409 Details
Compact for installation under floor or on firewall of almost any vehicle. Booster measures only 7" in diameter. Cast iron master cylinder has a 1" bore and is suited for disc-disc or disc-drum combinations.
Master cylinder features two 3/8"-24 inverted flare ports on each side (plugs are included for ports not in use).
- Compact design to fit into small spaces under the hood
- Universal in design, makes for a simple install
- Heavy-duty zinc-plated steel construction to provide years of service
- Uses standard DOT 3 or DOT 4 brake fluids
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
Specs
- Pushrod-to-mounting flange is 5-1/2"
- Four bolts on 3-3/8" centers
- Booster is 3.75" thick
- Master cylinder combo is 11.875" from end of the master cylinder to the firewall
- (4) qty 3/8"-24 outlet ports (2 plugs included)
- 8" from mount to outer edge
Speedway Motors 91031409 Specifications
Speedway Motors 91031409 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91031409 |
| Brand | Speedway Motors |
| Brake Booster Diameter | 7 Inch |
| Master Cylinder Material | Steel |
| GENERAL | |
| Brake Booster Type | Vacuum Diaphragm Single |
| Outlet Count | Tandem/Both Sides |
| Outlet Fitting | 3/8"-24 |
| Master Cylinder Bore Size | 1 Inch |
| Brake Booster Material | Steel |
| Overall Length | 11.75" |
| Master Cylinder Port Sizes | 3/8"-24 IFF |
| Bolt Hole Pattern | 3.38" x 3.38" |
| Centerline of Holes | 3.38" |
| Reservoir Included | Yes |
| Sold in Quantity | Kit |
