Self-Canceling Turn Signal Switch and Module Kit, Red Switches

#9109855

Self-Canceling Turn Signal Switch and Module Kit, Red Switches

Name: Self-Canceling Turn Signal Switch and Module Kit, Red Switches
Brand: Speedway Motors
SKU: 9109855
Price: 202.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

1 Question

Two 19 mm buttons for left and right
Vibrant LED illumination, with flawless push button momentary action
Has 3 timing modes: self canceling, hazard mode, non-self canceling

$202.99

/kit

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.250" Overall Length, 12 volts Voltage

Two 19 mm buttons for left and right
Vibrant LED illumination, with flawless push button momentary action
Has 3 timing modes: self canceling, hazard mode, non-self canceling
Adds brake light function to turn signals
Non-load dependent flash duration: all three modes are flash time constant whether using incandescent or LED lighting

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9109855
Overall Length	2.250"
Overall Width	1.625"
Overall Height	.625"
Voltage	12 volts

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Lighting Control Modules Installation Instructions (9109855)

Lighting Control Modules Installation Instructions (91064070)

Push Button Switches Installation Instructions (91064400)

Installation Tips

Voltage: 12 VDC, negative ground
Switch dimensions: 54mm (L), 25 mm (W), 41 mm (T)
Max Load Capacity: 6 amps per left or right channel
Module Mounting: Secure to flat surface with double sided VHB tape
Module Unit must be mounted at least 12" away from the ignition coil(s)

Here's how it works:

Press the appropriate button for 1 second and the turn signal light will flash for 7 seconds, then self cancel.
Press for 2 seconds and it will flash for 20 seconds, then self cancel.
Press for 4 seconds and it will flash for 75 seconds, then self cancel.
Press the same button a second time to manually cancel.
To activate the hazard flashers, press both buttons at once. To disengage, press again. (They will flash until disengaged).

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 9109855 Details

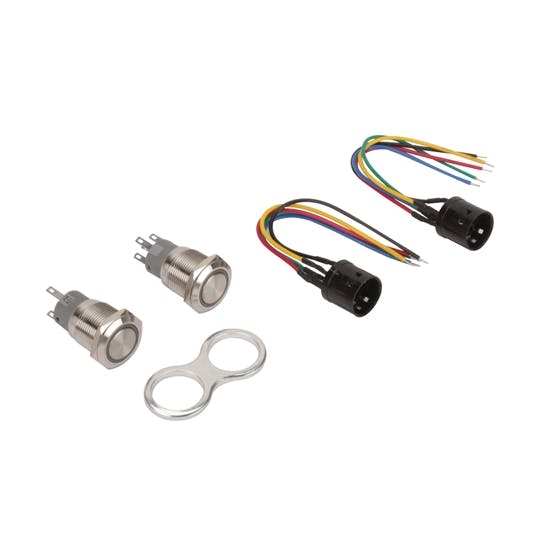

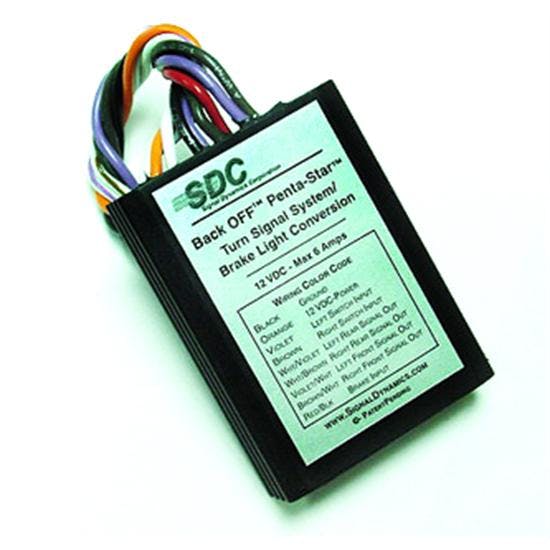

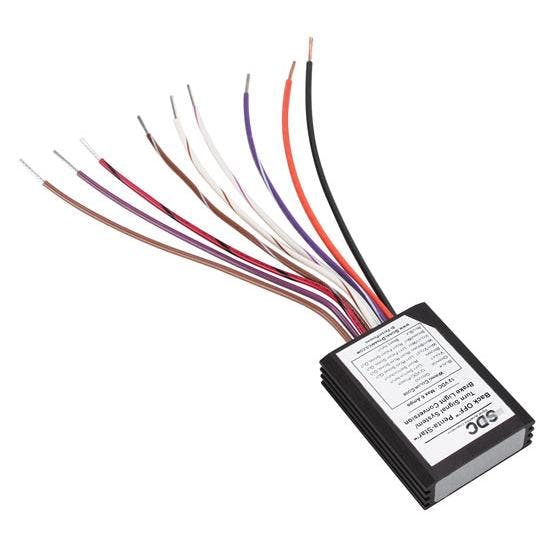

Our self-canceling turn signal kit features two billet buttons for a high quality finish and the turn signal module for seemless operation of your turn signals. This module combines all of the functions of the Self-Canceling Turn Signal Module and the Tri-Star Module. Engineered for the custom builder or to retro-fit motorcycles not equipped with a self-canceling turn signal switch. Designed for use with individual momentary type turn signal switches mounted on the left and right handle bars.

Two 19 mm buttons for left and right
Vibrant LED illumination, with flawless push button momentary action
Has 3 timing modes: self canceling, hazard mode, non-self canceling
Adds brake light function to turn signals
Non-load dependent flash duration: all three modes are flash time constant whether using incandescent or LED lighting
Dependable solid-state electronic components
Weather proof - potted with soft cell technology to prevent wire chaffing and damage
Requires only one taillight bulb per side

Charts

Illuminated Switches Wiring Instructions (PDF)

Turn Signal Module Instructions (PDF)

Guides & Documents

Lighting Control Modules Installation Instructions (9109855)

Lighting Control Modules Installation Instructions (91064070)

Push Button Switches Installation Instructions (91064400)

Speedway Motors 9109855 Specifications

KEY SPECS
MFG. Part #	9109855
Brand	Speedway Motors
Overall Length	2.250"
Overall Width	1.625"
Overall Height	.625"
Voltage	12 volts

GENERAL
Sold in Quantity	Kit
