Product Summary

Universal Fit, 2.10" Overall Height, 1.15" Base Length

  • Solenoid has a max travel distance of 1-1/4"
  • Comes with a 'button' end with a hole drilled through it for easy rod/cable attachment
  • Has an in line fuse and push button switch with a wiring harness
  • Operates on 12V and uses 40 amps of current
  • Dimensions measure 2.10" in height, 1.14" in length, and 2.72" in width

Key Specs

MFG. Part #SIL40K
Overall Height2.10"
Base Length1.15"
Base Width2.75"
Compressed Length3.63"

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

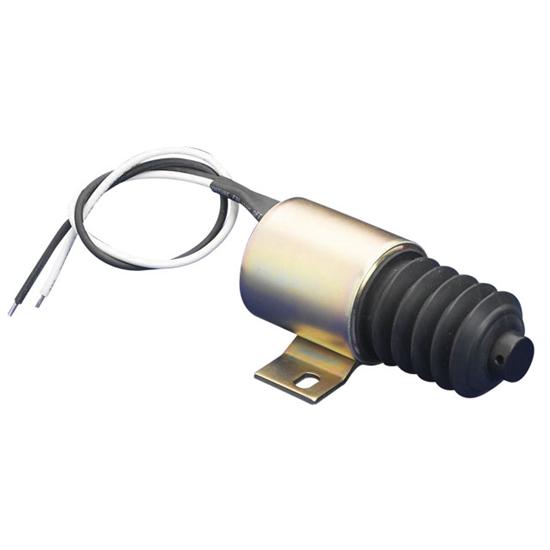

This heavy duty solenoid comes with a 'button' end with a hole drilled through it for easy rod/cable attachment. It also comes with an in line fuse and push button switch with a wiring harness.  1.25" max travel.

Specifications

KEY SPECS
MFG. Part #SIL40K
BrandSPAL
Overall Height2.10"
Base Length1.15"
Base Width2.75"
Compressed Length3.63"
GENERAL
Extended Length4.88"
Stroke1.75"
Load Capacity40 lbs.
Amperage40 amps
Voltage12 volts
Hardware IncludedYes
Sold in QuantityEach
NotesHas a button end with a rod/cable attachment hole as well as a line fuse and push button switch with a wiring harness.
