Add to Cart
$179.99
$169.99
SBF HEI Distributor and Spark Plug Wiring Kit, Cast Camshaft
SBF HEI Distributor and Spark Plug Wiring Kit, Cast Camshaft

SBF HEI Distributor and Spark Plug Wiring Kit, Cast Camshaft

289 Ford Small Block V8, 302 Ford Small Block V8, HEI / Male Cap Terminal Style

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
SBF HEI Distributor and Spark Plug Wiring Kit, Cast Camshaft
SBF HEI Distributor and Spark Plug Wiring Kit, Cast Camshaft
Zoomed In Image
Part # 91602074
Save 5%
$169.99
$179.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Cap Terminal Style:
HEI / Male
Advance Type:
Mechanical and Vacuum
Trigger Style:
Magnetic
Hall Effect:
No
Sync Signal:
No
Trigger Sensors:
Single
Gear Material:
Steel
Mechanical Tach Drive:
No
Slip Collar:
No
Shaft Diameter:
0.45"
Rotor Rotation:
Counterclockwise
Hole Diameter:
1.49"
MFG. Part #:
91602074
Sold in Quantity:
Kit

Info

Get a complete ignition system for your Small Block Ford in one kit with this HEI distributor and spark plug wiring kit from Speedway Motors.

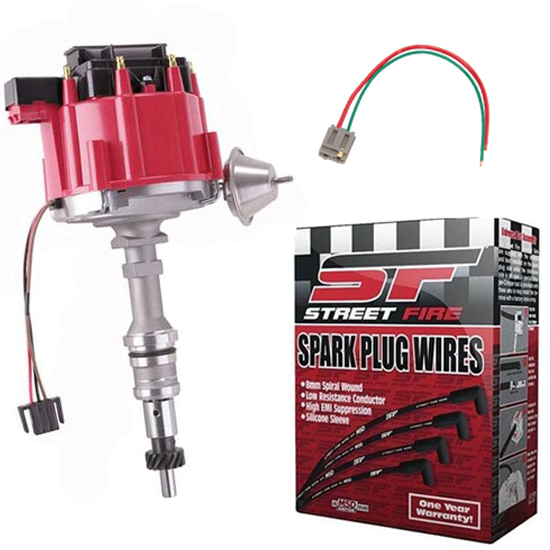

Kit Includes:

  • (1) Speedway HEI Distributor
  • (1) MSD 5541 Street-Fire Spark Plug Wire Set
  • (1) HEI Distributor Wiring Pigtail Connector - 10"

HEI Distributor:

Finally an affordable distributor for you Ford guys! Basically this is a GM HEI distributor that fits 289-302 Fords. It is fully self-contained and requires only one wire to hook-up. No need for an MSD box. NOT compatible with computer controlled vehicles.

It uses the GM HEI cap, rotor and module, and includes mechanical and vacuum advances. Comes complete as shown.  Shaft diameter of .450".

910-12350 Instructions (PDF)

Spark Plug Wires:

The Street Fire Spark Plug Wires feature a low resistance conductor that’s wrapped in a sleek and durable black sleeve. The terminals are covered in black boots that protect the conductor from engine heat to ensure spark delivery.

  • Helically wound conductor suppresses electro and radio noise
  • Kevlar core combination for great strength and durability
  • Heavy duty terminals for secure connection
  • 8mm silicone and synthetic jacket resists heat and abrasion
  • 500 Ohms per foot resistance for improved spark delivery and power
  • Silicone boots protect against high exhaust temps

Distributor Wiring Pigtail:

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

Notes

Note:  This distributor comes with a 'cast' drive gear. It will work with 'cast' cams (hydraulic or solid lifter), but is not recommended for 'roller' cams as unless a bronze gear is installed.  This distributor has an O-ring seal that has a VERY tight fit when installing for the first time. We suggest using a small amount of lithium grease or silicone lubricant on this seal to ease installation.

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • MSD 5541 Street-Fire Spark Plug Wires Set, Ford 302-351W HEI
    Qty x 1
  • Speedway SBF Small Block Ford 289-302 HEI Distributor
    Qty x 1
  • GM HEI Distributor Wiring Pigtail Connector, 10 Inch
    Qty x 1
