SBC Ready-to-Run Ignition/Fuel Delivery Kit-80 GPH Pump,6AN,Black

Breathe new life into your Small Block Chevy engine with this complete distributor ignition/fuel delivery kit!

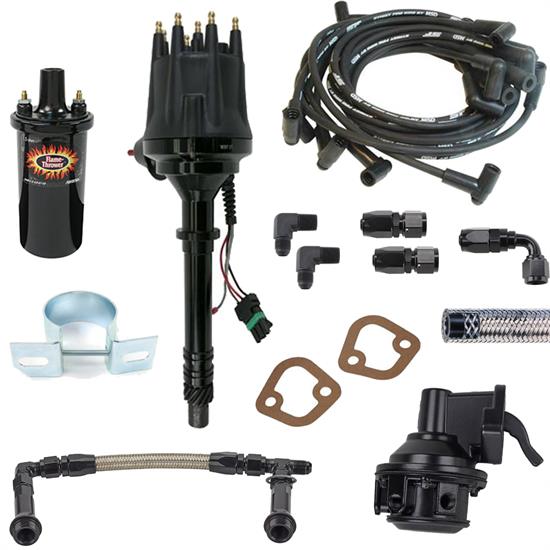

Kit Includes:

• (1) Speedway Motors Ready to Run Pro Billet Distributor, Chevy V8
• (1) PerTronix 40011 Flame-Thrower Coil, Black
• (1) MSD 5554 Street-Fire Spark Plug Wires Set, Small Block Chevy 350 HEI
• (1) PerTronix 10001 Coil Bracket, Zinc Clear
• (1) Chevy Small Block V8 Mechanical Fuel Pump, 80 GPH, Black
• (1) Fuel Log, 4150 Style Carb, AN -6, Stainless Braid, Black Fitting
• (2) Black 90 Degree -6 AN Flare to 1/4 Inch NPT Pipe Adapter Fittings
• (2) Speedway Full Flow Swivel Hose End Fitting, Straight, Anodized, -6 AN
• (1) Speedway Full Flow Swivel Hose End Fitting, 90 Degree, Anodized, -6 AN
• (1) Speedway Stainless Steel Braided Hose Line, -6 AN, 6 Ft.

Speedway Motors Ready to Run Pro Billet Distributor

• Perfect for a street performance ignition upgrade
• Features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom
• Comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output
• The dielectric cap comes with solid brass terminals and a color-matched wire retainer

An important feature on all Speedway Motors Pro Series distributors is the fully adjustable mechanical advance:

• Allows you to easily modify the distributor to achieve a variety of timing curves
• Included with all Pro Series distributors are four bushings of varied size
• The bushing determines the mechanical advance the distributor can achieve
• Also included are six springs, with two at each level of tension
• The springs control the rate at which the distributor reaches the advance

What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module:

• Built using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box
• Also comes with a digital tachometer output
• With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go

Includes:

• 3 Bushings and 4 Springs for Mechanical Advance
• Color-Matched Spark Plug Wire Retainer with Screws
• Vacuum Advance Block-off Plate (Black)
• Power Extension Cable
• Tachometer Output Extension Cable

PerTronix 40011 Flame-Thrower Coil

• The hotter the spark, the easier your engine will start, and this 40,000 volt coil is just the ticket to a quick start!
• Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy
• These coils are internally resisted so they are compatible with many inductive ignition systems
• 40,000 volts
• Black finish for that "stock look"
• For use with 12 volt inductive ignition systems
• 1.5 Ohm primary resistance.
• Legal in all 50 states and Canada

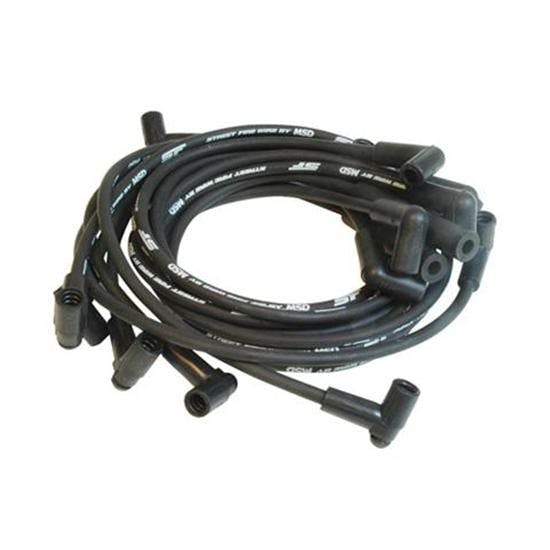

MSD 5554 Street-Fire Spark Plug Wires Set

• Street Fire low resistance spark plug wires feature a low resistance conductor that’s wrapped in a sleek and durable black sleeve
• The terminals are covered in black boots that protect the conductor from engine heat to ensure spark delivery
• Street Fire spark plug wires have the quality youve come to expect from MSD Ignition at a price thats comparable to other brands
• Features spiral-wound, low-resistance conductors and high EMI suppression capabilities, with 90 degree boots
• Long enough to go over valve covers
• Helically wound conductor suppresses electro and radio noise
• Kevlar core combination for great strength and durability
• Heavy duty terminals for secure connection
• 8mm silicone and synthetic jacket resists heat and abrasion
• 500 ohms per foot resistance for improved spark delivery and power
• Silicone boots protect against high exhaust temps
• These wires are for S/B Chevys with an HEI cap and are designed to be routed over the valve covers

PerTronix 10001 Coil Bracket

• Universal Coil Bracket available Zinc plated
• High quality construction
• Fits all 2.15" diameter Coils
• Limited 90 Day Warranty

Chevy Small Block V8 Mechanical Fuel Pump

• High-performance two-valve mechanical fuel pumps are constructed of heavy-duty materials for consistent performance and reliability
• Their lower body has been designed to rotate to meet your fitment requirements
• Their aluminum housing is given a stylish black finish
• 80 gph
• 6 PSI
• Aluminum construction
• Fits Small Block Chevy applications
• Mounting gasket included
• Main body of pump measures 3-5/8" O.D.
• Mounting face straight out to furthest point 4.083"
• Center of mount bolts to bottom of pump 3.314"
• Overall dia. 3.604"

Fuel Log, 4150 Style Carb, AN -6, Stainless Braid, Black Fitting

• Fully assembled and ready for installation our Dual Inlet Kits are ready to get you going
• Using stainless steel braided hose each kit comes with newly designed adapter fittings made for faster installation
• With these new adapters the wrench goes on once and you turn until the adapter is locked in
• Each kit comes with a 1/8" port for optional gauge installation, gauges sold separately
• Includes Crush Washers
• -6 AN Fittings
• Fits Holley Dual Feed 4150 (Except 4010)
• Black Anodized fittings

Black 90 Degree -6 AN Flare to 1/4 Inch NPT Pipe Adapter Fittings

• Aluminum pipe thread to 37° AN adapter fitting
• Black anodized finish will give your engine compartment the look you are after

Full Flow Swivel Hose End Fittings, Straight, Anodized, -6 AN

• These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings
• Manufactured from the highest quality aluminum and are then black anodized to give them a new sleek look
• These full flow hose ends use a swivel head design, allowing the fitting to rotate as you are tightening or assembling the hose
• These fittings come in a straight design and are available in a variety of sizes to fit your specific hose diameter
• Upgrade your fittings to these full flow push-on hose ends and see the difference
• -6 AN female to push-on style adapter
• Straight
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Works great for custom fuel lines
• Available in a Black corrosion resistant finish

Full Flow Swivel Hose End Fittings, 90 Degree, Anodized, -6 AN

• These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings
• Manufactured from the highest quality aluminum and are then black anodized to give them a new sleek look
• These full flow hose ends use a swivel head design, allowing the fitting to rotate as you are tightening or assembling the hose
• -6 AN female to push-on style adapter
• 90 degree angle
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Accepts a variety of lightweight aluminum AN style adapters & fittings
• Works great with custom fuel lines
• Available in a Black corrosion resistant finish

Stainless Steel Braided Hose Line, -6 AN, 6 Ft.

• This stainless steel braided hose can be used for low pressure applications like fuel, water, air or oil
• Works great as a fuel line for non ethanol blended gas

NOTE: This hose is >>NOT<< compatible with ETHANOL blended GAS including E85 ! ! !

NOTE: Not to be used for brake or power steering applications. Maximum operating pressure is 750 psi.
