SB Chevy 383 Rotating Assembly, 0.150 In Solid Dome, 5.7 Rod
$1,206.99
/kit
In Stock
$1,225.31
Save $18.32
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
350 mains Main Journal Style, 3.750" Engine Stroke
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91510216 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91510216 Details
Speedway Motors 91510216 Details
Speedway introduces rotating assembly engine rebuild kits, with an optional balance job. Includes 2-pc rear main seal cast steel external balance crank, rods and pistons. Cranks are new so they use standard size bearings.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
NOTE: Piston rings are not included and must be purchased separately.
Item Details
0.150" solid dome
Ring style: A
C/R 58cc=11.2, 64cc=10.1, 76cc=9.8
Piston/Pin Weight: 527 g
Rod Length: 6", Ring Style: C

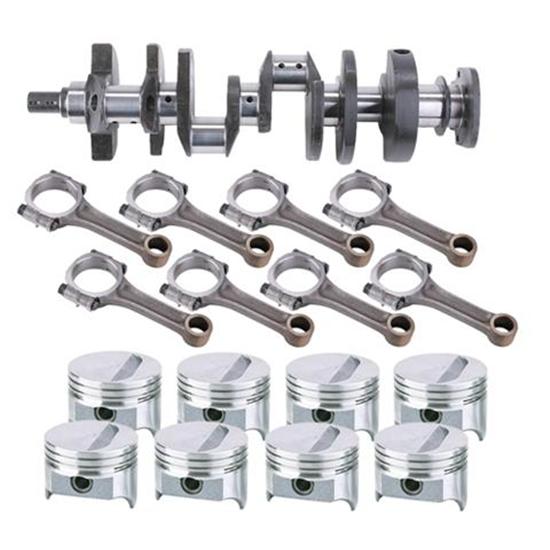

Kits include:
- Speedway Cast Steel Crankshaft
- Two-piece rear main
- External balance crankshaft (requires use of a 400 type balancer and flexplate/flywheel)
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 5140 I-Beam Claimer Connecting Rods
- 5140 heat treated steel
- Shot peened and magnafluxed
- 5.7" length
- Press pin
- 646 grams
- KB Signature Series Hypereutectic Claimer Pistons
- Coated skirts
- Wrist pin lock rings
- T-5 hypereutectic construction
- Can be used with press fit or floating wrist pins
Kits include:
- Speedway Cast Steel Crankshaft
- Two-piece rear main
- External balance crankshaft (requires use of a 400 type balancer and flexplate/flywheel)
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 5140 I-Beam Claimer Connecting Rods
- 5140 heat treated steel
- Shot peened and magnafluxed
- 5.7" length
- Press pin
- 646 grams
- KB Signature Series Hypereutectic Claimer Pistons
- Coated skirts
- Wrist pin lock rings
- T-5 hypereutectic construction
- Can be used with press fit or floating wrist pins
Speedway Motors 91510216 Specifications
Speedway Motors 91510216 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91510216 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 350 mains |
| Engine Stroke | 3.750" |
| Connecting Rod Length | 5.700" |
| Connecting Rod Material | Forged 5140 Steel |
| Connecting Rod Weight | 646 grams |
| Connecting Rod Bolt Diameter | 3/8" |
| Dome Height | 0.150" |
| Piston Weight | 510 grams |
| Piston Ring Style | A |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 2-piece |
| Wrist Pin Diameter | .9272" |
| Wrist Pin Weight | 102 grams |
| Main Journal Diameter | 2.448" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1973-1975 Chevy Bel Air
Gen 1 L48 Small Block Chevy
1972 Chevy Blazer
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1974 Chevy Blazer
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1982 Chevy C10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy C10
2-Piece Rear Main Chevy 350
1984 Chevy C10
Gen 1 L48 Small Block Chevy
1985 Chevy C10
2-Piece Rear Main Chevy 350
1972-1982 Chevy C10 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy C10 Suburban
2-Piece Rear Main Chevy 350
1984 Chevy C10 Suburban
Gen 1 L48 Small Block Chevy
1985 Chevy C10 Suburban
2-Piece Rear Main Chevy 350
1982-1987 Chevy C15
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy C20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C20
Gen 1 L48 Small Block Chevy
1972-1982 Chevy C20 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C20 Suburban
Gen 1 L82 Small Block Chevy
1972-1982 Chevy C30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C30
Gen 1 L46 Small Block Chevy
1983-1987 Chevy C35
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1982 Chevy Camaro
Gen 1 L48 Small Block Chevy
1973-1982 Chevy Caprice
Gen 1 L48 Small Block Chevy
1983 Chevy Caprice
2-Piece Rear Main Chevy 350
1984 Chevy Caprice
Gen 1 L48 Small Block Chevy
1985 Chevy Caprice
2-Piece Rear Main Chevy 350
1973 Chevy Chevelle
Gen 1 L48 Small Block Chevy
1973-1974 Chevy Corvette
Gen 1 L48 Small Block Chevy
1980 Chevy Corvette
Gen 1 L48 Small Block Chevy
1984 Chevy Corvette
Gen 1 L83 Small Block Chevy
1985 Chevy Corvette
2-Piece Rear Main Chevy 350
1973-1977 Chevy El Camino
Gen 1 L48 Small Block Chevy
1978-1979 Chevy El Camino
2-Piece Rear Main Chevy 350
1983 Chevy El Camino
2-Piece Rear Main Chevy 350
1984 Chevy El Camino
Gen 1 L81 Small Block Chevy
1975-1982 Chevy G10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy G10
Gen 1 L82 Small Block Chevy
1970 Chevy G10 Van
2-Piece Rear Main Chevy 350
1972-1974 Chevy G10 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1982 Chevy G20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972 Chevy G20 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1974 Chevy G20 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1982 Chevy G30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1970 Chevy G30 Van
2-Piece Rear Main Chevy 350
1972-1974 Chevy G30 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1982 Chevy Impala
Gen 1 L48 Small Block Chevy
1983 Chevy Impala
2-Piece Rear Main Chevy 350
1985 Chevy Impala
2-Piece Rear Main Chevy 350
1972-1982 Chevy K10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K10 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K20 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1974 Chevy K30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1977-1982 Chevy K30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1970-1974 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1975-1982 Chevy K5 Blazer
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1984 Chevy K5 Blazer
Gen 1 L48 Small Block Chevy
1985 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1973-1975 Chevy Laguna
Gen 1 L48 Small Block Chevy
1976 Chevy Laguna
2-Piece Rear Main Chevy 350
1973-1982 Chevy Malibu
Gen 1 L48 Small Block Chevy
1970-1971 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1973-1975 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1976-1977 Chevy Monte Carlo
Gen 1 L48 Small Block Chevy
1982-1983 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1975 Chevy Monza
Gen 1 L48 Small Block Chevy
1973-1974 Chevy Nova
Gen 1 L48 Small Block Chevy
1975 Chevy Nova
2-Piece Rear Main Chevy 350
1976-1979 Chevy Nova
Gen 1 L48 Small Block Chevy
1975-1979 Chevy P30
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1980-1983 Chevy P30
2-Piece Rear Main Chevy 350
1985 Chevy P30
2-Piece Rear Main Chevy 350
1970 Chevy P30 Van
2-Piece Rear Main Chevy 350
1972 Chevy P30 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1974 Chevy P30 Van
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1967 GMC C15/C1500 Suburban
2-Piece Rear Main Chevy 350
1980-1984 GMC C1500
2-Piece Rear Main Chevy 350
1980-1986 GMC C1500 Suburban
2-Piece Rear Main Chevy 350
1967-1972 GMC C25/C2500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1972 GMC C25/C2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC C35/C3500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1978-1987 GMC Caballero
2-Piece Rear Main Chevy 350
1975-1978 GMC G15
2-Piece Rear Main Chevy 350
1967-1974 GMC G15/G1500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G1500
2-Piece Rear Main Chevy 350
1975-1978 GMC G25
2-Piece Rear Main Chevy 350
1967-1974 GMC G25/G2500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G2500
2-Piece Rear Main Chevy 350
1975-1978 GMC G35
2-Piece Rear Main Chevy 350
1967 GMC G35/G3500 Van
2-Piece Rear Main Chevy 350
1970-1974 GMC G35/G3500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G3500
2-Piece Rear Main Chevy 350
1974-1977 GMC Jimmy
2-Piece Rear Main Chevy 350
1983-1984 GMC Jimmy
2-Piece Rear Main Chevy 350
1975-1978 GMC K15
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K15 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K15/K1500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K15/K1500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1979-1984 GMC K1500
2-Piece Rear Main Chevy 350
1979-1980 GMC K1500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K25
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K25 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K25/K2500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K25/K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1979-1984 GMC K2500
2-Piece Rear Main Chevy 350
1979-1986 GMC K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1994-1999 GMC K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K35/K3500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1977 GMC Sprint
Gen 1 LM1 Small Block Chevy
1967 GMC Suburban
Gen 1 L46 Small Block Chevy
1987-1991 GMC V1500 Suburban
350 Chevy Small Block V8
1987 GMC V2500
350 Chevy Small Block V8
1987-1991 GMC V2500 Suburban
350 Chevy Small Block V8
1987-1991 GMC V3500
350 Chevy Small Block V8
