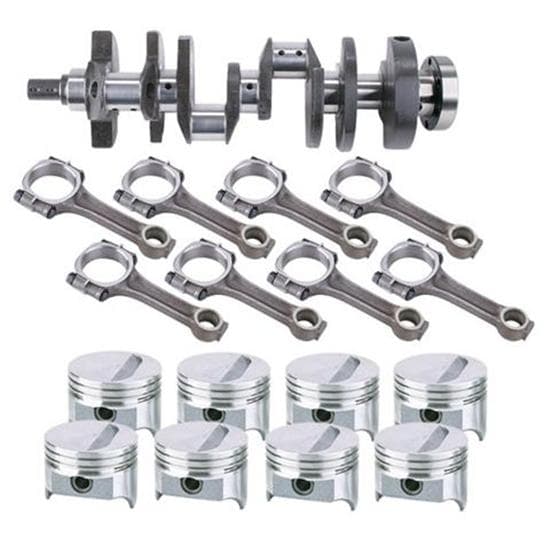

SB 350 Chevy Rotating Assem., One Piece, Flat Top-2 Valve, 5.7 Rod
- For 350 Chevy small block V8
- Kit includes new 1 pc rear main seal crank, rods and pistons
- Forged 5140 Steel connecting rod
$932.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
350 mains Main Journal Style, 3.480" Engine Stroke
- For 350 Chevy small block V8
- Kit includes new 1 pc rear main seal crank, rods and pistons
- Forged 5140 Steel connecting rod
- Cast steel crankshaft
- Flat Top w/ 2 valve reliefs piston style made from hypereutectic aluminum
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9151037 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Flat Top w/ 2 valve reliefs |
| Piston Material | Hypereutectic Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9151037 Details
Speedway Motors 9151037 Details
Speedway introduces forged rotating assembly engine rebuild kits, with an optional balance job. Includes new 1-pc rear main seal crank, rods and pistons. Cranks are new so they use standard size bearings.
New one piece rear main cast steel crank. Standard size journals. Hyperuetectic piston set and Speedway Super Stock rods. ARP rod bolts.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
NOTE: Piston rings are not included and must be purchased separately.
Item Details
Flat top, 2 valve relief
C/R 58cc=10.7, 64cc=10.4, 76cc=9.1
Piston/Pin Weight:614 g
Rod Length: 5.7"
Kits include:
- Scat Cast Steel Crankshaft
- One-piece rear main
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 5140 I-Beam Claimer Connecting Rods
- 5140 heat treated steel
- Shot peened and magnafluxed
- Press pin
- 5.7 " length
- 646 grams
- KB Signature Series Hypereutectic Claimer Pistons
- Coated skirts
- Wrist pin lock rings
- T-5 hypereutectic construction
- Can be used with press fit or floating wrist pins
Kits include:
- Scat Cast Steel Crankshaft
- One-piece rear main
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 5140 I-Beam Claimer Connecting Rods
- 5140 heat treated steel
- Shot peened and magnafluxed
- Press pin
- 5.7 " length
- 646 grams
- KB Signature Series Hypereutectic Claimer Pistons
- Coated skirts
- Wrist pin lock rings
- T-5 hypereutectic construction
- Can be used with press fit or floating wrist pins
Speedway Motors 9151037 Specifications
Speedway Motors 9151037 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9151037 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Flat Top w/ 2 valve reliefs |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 350 mains |
| Engine Stroke | 3.480" |
| Connecting Rod Length | 5.700" |
| Connecting Rod Material | Forged 5140 Steel |
| Connecting Rod Weight | 646 grams |
| Connecting Rod Bolt Diameter | 3/8" |
| Piston Weight | 512 grams |
| Piston Ring Style | A |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 1-piece |
| Wrist Pin Diameter | .9272" |
| Wrist Pin Weight | 102 grams |
| Main Journal Diameter | 2.448" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
