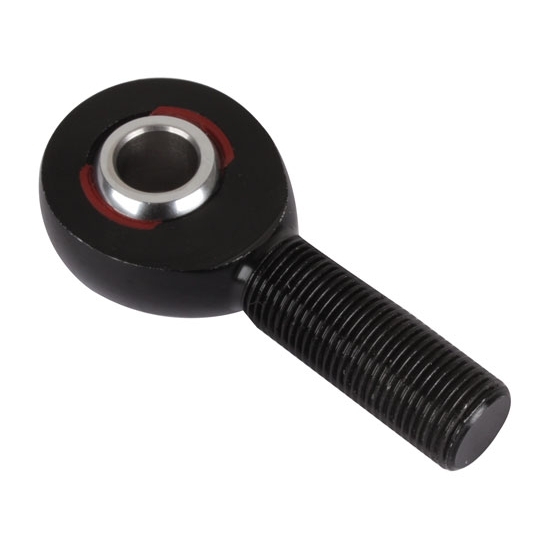

Rod End Supply AML8 Alum Rod End, 1/2-20 LH Male, 1/2 In Hole
- 1/2"-20 shank, 1/2" hole
- Self-lubricating, self-sealing nylafiber race
- Black anodized 7075-T6 aluminum body
$13.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Aluminum, Anodized
- 1/2"-20 shank, 1/2" hole
- Self-lubricating, self-sealing nylafiber race
- Black anodized 7075-T6 aluminum body
- 52100 steel ball, heat treated and hard chrome plated
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyRod End Supply AML8 Details
Rod End Supply AML8 Details
- 1/2"-20 shank, 1/2" hole
- Self-lubricating, self-sealing nylafiber race
- Black anodized 7075-T6 aluminum body
- 52100 steel ball, heat treated and hard chrome plated
This rod end is built for exceptional strength, durability, and performance in demanding racing and suspension applications. Featuring a 1/2"-20 shank and a 1/2-inch bore, it incorporates a self-lubricating, self-sealing Nylafiber race that helps reduce maintenance while ensuring smooth and reliable operation. The body is manufactured from lightweight, high-strength 7075-T6 aluminum and finished with a black anodized coating for enhanced corrosion resistance and a professional appearance. A heat-treated 52100 steel ball with a hard chrome-plated finish provides superior wear resistance, strength, and long-lasting performance under heavy loads and harsh operating conditions.
Rod End Supply AML8 Specifications
Rod End Supply AML8 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AML8 |
| Brand | Rod End Supply |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Aluminum |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Black |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.380" |
| Rod End Head Width | 1.312" |
| Overall Length | 3.12" |
| Overall Thickness | 0.62" |
| Center Hole to End of Shank | 2.45" |
| Sold in Quantity | Each |
