Reversed Corvair Parallel Steering Gear Box Assembly, 36 Spline

#9109287

Reversed Corvair Parallel Steering Gear Box Assembly, 36 Spline

Name: Reversed Corvair Parallel Steering Gear Box Assembly, 36 Spline
Brand: Speedway Motors
SKU: 9109287
Price: 469.99 USD
Availability: InStock
Rating: 5 (5 reviews)

5 Reviews

1 Question

Replace that sloppy, worn out steering box with this brand new Reversed Corvair steering box, for traditional (parallel) style steering
These boxes are constructed of modern high strength steel and needle bearings to ensure durability that original boxes just can't offer
Bracket/mount features heavy gauge steel construction

$469.99

/kit

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Manual Steering Box Type, Steel, Painted

Replace that sloppy, worn out steering box with this brand new Reversed Corvair steering box, for traditional (parallel) style steering
These boxes are constructed of modern high strength steel and needle bearings to ensure durability that original boxes just can't offer
Bracket/mount features heavy gauge steel construction
Pitman arm is a new forged design, for greater strength and rigidity
The arm has a side-to-side offset of 1-7/8 inch, and accepts the early Ford style tie rod ends

Comes as a Kit

View Kit Components

See more details

Key Specs

Steering Box Type	Manual
Steering Box Orientation	Side Steer
Steering System Type	Traditional Parallel
Material Type	Steel
Finish	Painted

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9109287 Details

Outfit your custom steering assembly with this complete steering box kit, perfect for street rods and t-bucket builds.

Kit Includes:

(1) Weld-On Corvair Steering Box Mount, 2 Inch Tall
(1) Reversed Corvair Parallel Steering Gear Box
(1) Zinc Corvair Pitman Arm, 7 Inch End To End

Weld-On Corvair Steering Box Mount

Designed to mount reversed Corvair steering boxes onto a variety of chassis using "traditional" style Ford steering
Works well with T-Buckets
Bracket measures 2" tall from the top of the frame to the steering box mounting surface
Heavy gauge steel construction
Stylish lightening holes lend competition feel
Works with Corvair steering boxes
Welding required

Reversed Corvair Parallel Steering Gear Box

Why search for a good used Corvair steering box when these brand new Corvair steering boxes have already been reversed
Designed for use on traditional steering cars and T-buckets
Constructed of modern high strength steel and needle bearings to ensure durability, which original boxes just can't offer

Zinc Corvair Pitman Arm, 7 Inch End To End

Forged 'new design' Corvair pitman arm
Measures approximately 7" end to end
Approximately 5-3/8" from the center of the big hole to the center of the small hole
Side-to-side offset is approximately 1-7/8"
The small hole accepts the early Ford style tie rod end (such as our 910-02909)
Half tapered from both sides to allow the drag link to be mounted from either side
Offered in a zinc coated finish to match your existing components
Drop of 1.875"
36 spline count
Center to center: 5.375"
Hole diameter: .844"-.890"

Charts

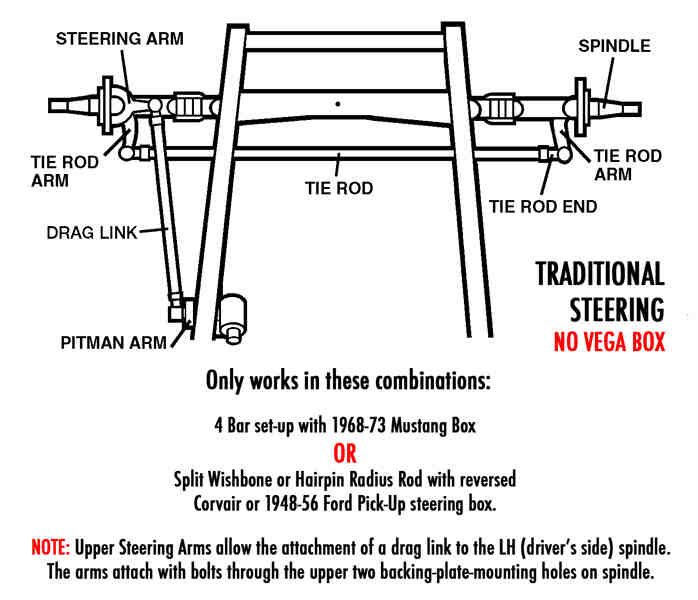

Traditional Steering Set-Up Guide (GIF)

Parallel Steering Set-Up Guide (GIF)

Reversed Corvair Steering Box Installation Instructions(PDF)

Guides & Documents

Steering Boxes Installation Instructions (9109287)

Steering Boxes Technical Information (9109287)

Steering Box Mounting Brackets Technical Information (91632102)

Steering Boxes Installation Instructions (91032197)

Steering Boxes Technical Information (91032197)

Speedway Motors 9109287 Specifications

KEY SPECS
MFG. Part #	9109287
Brand	Speedway Motors
Steering Box Type	Manual
Steering Box Orientation	Side Steer
Steering System Type	Traditional Parallel
Material Type	Steel
Finish	Painted

GENERAL
Input Shaft Diameter	0.62"
Input Shaft Length	1.04"
Output Shaft Spline Count	36
Output Shaft Diameter	0.86"
Output Shaft Length	1.15"
Overall Length	7"
Overall Width	7.5"
Overall Height	5.5"
Sold in Quantity	Kit

Ratings & Reviews

5 Reviews

Overall Assessment

Customers highly recommend our Corvair steering box, especially noting its great quality and practicality for various projects. It's considered superior to original parts, with one customer stating it "saved my project" and performs even "better than new". Fast delivery was also praised, marking operational efficiency.

Write A Review

5 reviews

Filter by Ratings

Sort Reviews

I would buy this product again

5.0

8 months ago

Huggy

Auburn, NY

Verified

Put on my 23 T bucket. Bracket, box, all fit, no problems. Sometimes you have to step back, look at it, but having things you can make work is priceless. Had to sneak in between two back headers

Would Recommend

Yes

5.0

a year ago

Basegasket

Knoxville

Verified

Nice item.

Would Recommend

Corvair steering box

5.0

3 years ago

Model A Geek

Fayetteville, NC

Verified

good product

Would Recommend

perfect gearbox for my project

5.0

4 years ago

amish bob

buffalo ny

Verified

needed a reverse rotation steering gear for my 1954 dodge c-1 1 ton pu, stock boxes were junk when they were new, forget about finding a good used one. this box saved my project and it is better than new.

Would Recommend

Great product at a great price!

5.0

6 years ago

Tom

Verified

Fast delivery, great quality, highly recommend!!!

Would Recommend

Showing 5 of 5 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

What size bolts mount steering box

by Dave

• 2 years ago

1 answer

View Answer

1 of 1 questions shown
