Residual Pressure Valve and Fittings Kit, 2 PSI, Purple

Ever had problems with a spongy pedal or slow, unresponsive brakes? If so, you may need a residual pressure valve installed in your brake line. A residual valve acts like a one-way or check valve to maintain brake system pressure to eliminate the problems of a spongy pedal. This 2 PSI residual valve is installed inline between the master cylinder and disc brake calipers to keep 2 PSI of residual pressure at the caliper after the brake pedal is released. This ensures that you will have a high, firm pedal next time you press the brake pedal.

If your master cylinder is located below the floorboard, installing a 2 PSI residual valve is highly recommended. If your master cylinder is mounted on the firewall, a residual valve is generally not needed because gravity will provide a natural residual pressure within the brake line.

Kit Includes:

• (1) Drum Brake Residual Valve, 2 PSI
  • 1/8 Inch NPT Inlet
  • 1/8 Inch NPT Outlet
• (2) 3/8 Inch-24 IF Female to 1/8 Inch NPT Male Adapters
  • Brass
  • Fitting End A: 1/8" NPT Male
  • Fitting End B: 3/8"-24 I.F. Female

Learn more about the proper uses of residual valves by reading our tech article.Brake System Selection.

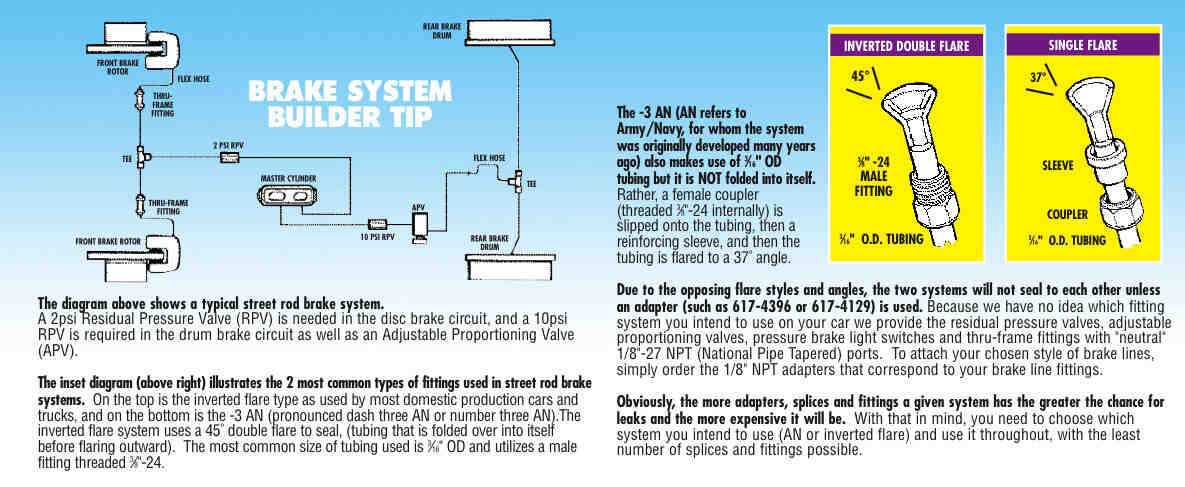

Brake System Builder's Tip (JPG)
